Product Summary

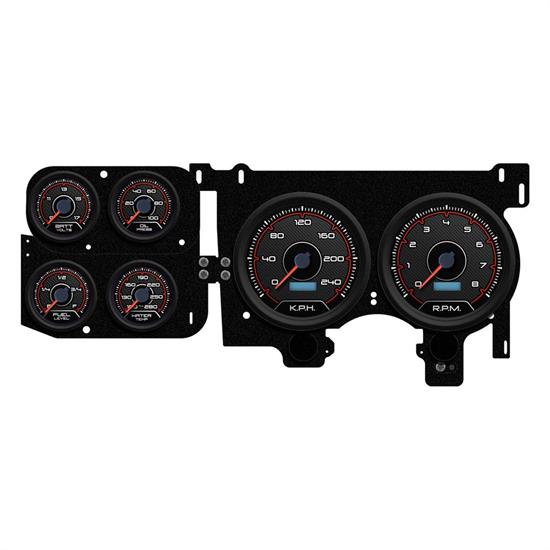

73-87 Chevy, Analog Gauge Series, Electric Gauge Style

    Key Specs

    MFG. Part #73206-01M
    BrandNew Vintage USA
    Gauge SeriesAnalog
    Gauge StyleElectric
    Gauge Set DesignDash Cluster

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    New Vintage USA complete gauge packages for 1973-1987 GM full size trucks are designed to install in the factory location and update the style and functions in the dash. Each kit is hand assembled in Detroit and features NVU’s unique mounting bracket, CNC laser cut and formed to precise specifications for a superior fit. Each kit comes complete with oil/water senders, factory-match fuel gauge (0-90). NVU instruments are easy to integrate with your old school engine or the latest LS powerplants. Programmable speedometer reads vehicle speed from any most any aftermarket and OE speed senders (including GPS); can also read from a GM PCM. Tachometer operates from any ignition output or PCM.

    Gen II stepper motor gauges feature LED backlighting with lit pointer, selectable inputs and dampened input-selectable fuel gauge pre-set to GM match 0-90.

    Kits include NVU exclusive mounting bracket and hardware, 4-3/8” programmable speedometer, 4-3/8” programmable tachometer operates on any cylinder configuration, 2-1/16" oil pressure, water temperature, volt and 0-90 fuel gauge. (0-90 ohm factory match fuel gauge utilizes stock sender-not included). Sender bushings, jumper wiring harnesses where required and programming button.

    For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

    For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

    Charts

    Specifications

    KEY SPECS
    MFG. Part #73206-01M
    BrandNew Vintage USA
    Gauge SeriesAnalog
    Gauge StyleElectric
    Gauge Set DesignDash Cluster
    GENERAL
    Gauge Face ColorBlack
    Bezel FinishBlack
    Needle ColorRed
    Lettering ColorWhite
    Includes Mounting Bracket(s)Yes
    Fuel Sender IncludedNo
    Speed Sender IncludedNo
    Oil Pressure Sender IncludedYes
    Turn Signals IncludedYes
    Includes Wire HarnessNo
    Bezel IncludedYes
    Gauge TypeAnalog
    Lens StyleFlat
    Temperature Sensor Bung IncludedYes
    GTIN Code689860950795
