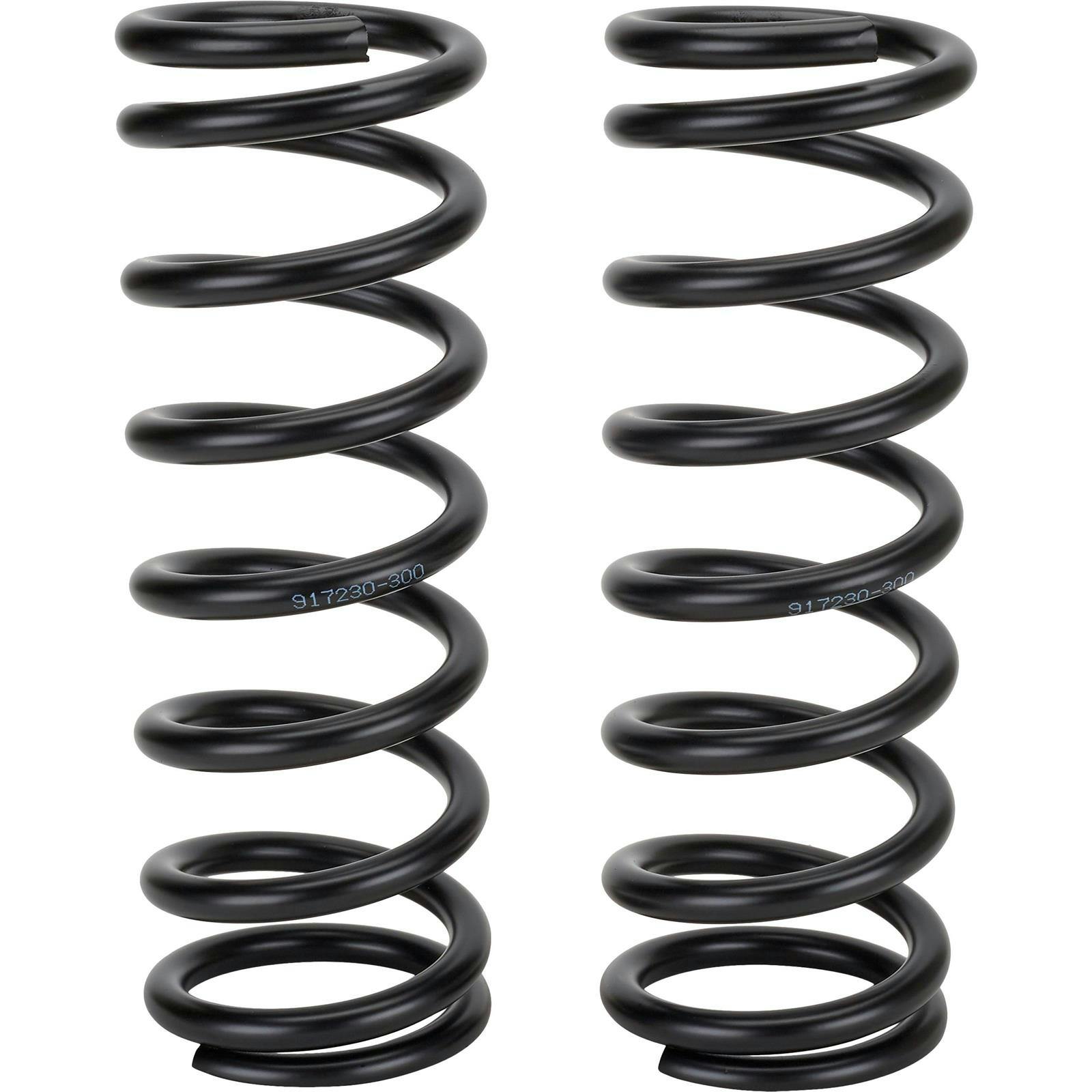

Mustang II Suspension Front Springs
- Feature a powder coated finish for increased longevity and corrosion prevention
- Made to OEM specs with a 3.5" ID and 13.5" free height
- Available in spring rates from 275 to 425, in 25 lb. increments, allowing you to fine tune your ride quality
Starting from
$100.89
/pair
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
- Feature a powder coated finish for increased longevity and corrosion prevention
- Made to OEM specs with a 3.5" ID and 13.5" free height
- Available in spring rates from 275 to 425, in 25 lb. increments, allowing you to fine tune your ride quality
- Features a square spring end for the upper hat side ensuring a flush fit for proper compression and alignment
- Features a pigtail spring end for the control arm side, allowing it to be trimmed to fit your setup
Key Specs
| MFG. Part # | Select Rate |
| Position | Front |
| Spring Rate | Select Rate |
| Free Height | 13.5" |
| Inside Diameter | 3.5" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Our Mustang II springs come in rates from 275 thru 425 and in 13.5” free height/length. They will require cutting to the necessary length on the majority of applications. For the heavier vehicles such as full size pickup trucks and fat fendered cars the spring rate used will normally be in the 350-400 range. With Small Block and automatic a common rate is 375 to 400 and with the addition of A/C or a big block you will need to compensate for the additional weight and go to the next higher rate. Frame boxing and plating, accessories, and fuel tank size all play a part in selecting spring rate. When vehicle is sitting at ride height ready for test drive the lower control arms should be parallel with the ground or pointing down at a slight angle on the outer ends. The springs will settle some in the first couple of hundred miles so allowance for this should be made.
- Powder coated gloss black
- 13.5" spring length
- 3.50" inside diameter
- Use the spring chart below to select proper rate
Use the following chart to select your rate:
- 1200 lb. Front End Weight = 275 Rate Spring
- 1300 lb. Front End Weight = 300 Rate Spring
- 1400 lb. Front End Weight = 325 Rate Spring
- 1500 lb. Front End Weight = 350 Rate Spring
- 1600 lb. Front End Weight = 375 Rate Spring
- 1700 lb. Front End Weight = 400 Rate Spring
- 1800 lb. Front End Weight = 425 Rate Spring
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Rate to see |
| Brand | Speedway Motors |
| Position | Front |
| Spring Rate | Select Rate to see |
| Free Height | 13.5" |
| Inside Diameter | 3.5" |
| Material Type | Steel |
| Finish | Powder Coated |
| Color | Black |
| Diameter Big End | 4.6" |
| Diameter Small End | 4.6" |
| Spring Rate Range | Select Rate to see |
| GENERAL | |
| Sold in Quantity | Pair |
| Progressive Rate Spring | No |
| Coil Spring End (A) | Square |
| Coil Spring End (B) | Pigtail |
| Wire Diameter | Select Rate to see |
