#9109687
Mustang II IFS, Tube Arms, Stock Spring/Spindle,Power Rack, 4-1/2
- Our Mustang II spindles are constructed from 1045 heat-treated alloy steel. Retains absolute stock factory geometry and uses all stock rotors, bearings, calipers, etc., making it easy to install.
- For unmatched ride quality for the street and strip
- New power rack modeled from the 1982-88 T-bird design which will work with aftermarket Mustang II crossmembers. Bushings included
$1,442.99
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, IFS Front Suspension Type, Natural
- Our Mustang II spindles are constructed from 1045 heat-treated alloy steel. Retains absolute stock factory geometry and uses all stock rotors, bearings, calipers, etc., making it easy to install.
- For unmatched ride quality for the street and strip
- New power rack modeled from the 1982-88 T-bird design which will work with aftermarket Mustang II crossmembers. Bushings included
- Outer tie rod and inner extension fits left or right, attaches steering rack to spindles
- Speedway Mustang II Tubular Control Arms
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 9109687 |
| Front Suspension Type | IFS |
| Suspension Height Adjustment | Lowered |
| Control Arm Style | Tubular |
| Spring Type | Coil Spring |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9109687 Details
Speedway Motors 9109687 Details
Kit Includes:
- (2) Speedway Mustang II Steel Spindles
- (2) Mustang II Suspension Front Springs
- (2) Monroe 32118 Monro-Matic Plus Mustang II Front Shocks
- (2) QA1 Pin Cross 0.750" O.D.
- (1) Mustang II Power Rack & Pinion
- (2) Speedway Mustang II Steering Rack & Pinion Mounting Bushing
- (2) Mustang II Outer Tie Rod End, Manual Version
- (1) Pinto-Mustang II Spindle Nut & Washer Kit
- (1) GM Metric Caliper Bracket Set for Mustang II Spindle
- (2) 1978-Up GM Metric Brake Calipers

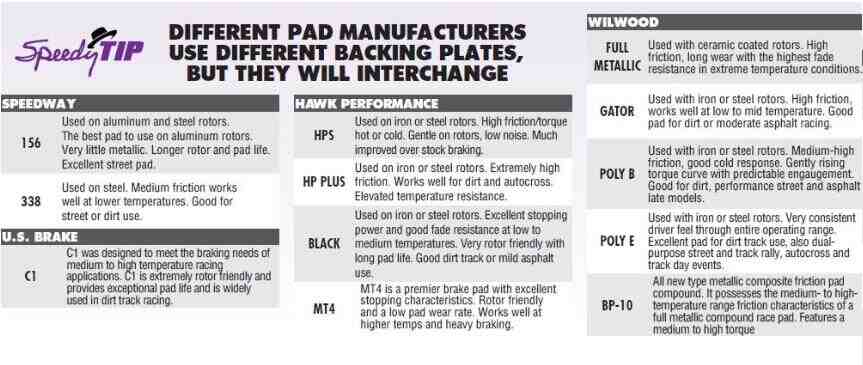

- (1) Speedway Soft Street Brake Pads, GM Metric 1978-Up D154
- (2) Speedway 1974-80 Ford 11 Inch Front Disc Brake Rotors
- (1) Bearing-Seal Kit for Two Mustang II Brake Rotors
- (2) Speedway Mustang II Tubular Lower A-Arms for Coilovers, No Strut Rod
- (4) Speedway Mustang II Upper Control Arm T-Bolts
- (1) Mustang II Manual Rack Bolt Kit
- (1) 9/16 Inch Fine Thread Tie Rod Nuts
- (1) Speedway Mustang II Coil Spring Rubber Isolator Cushion
- (1) Mustang II Power Rack Bolt Kit
- (2) Mustang II Rack Spacer, 3/4 Inch
- (2) Speedway Mustang II Tubular Upper Control Arms, Stock Width
- (1) Front Disc Brake Hardware Kit
With our complete Mustang II Independent Front Suspension kit you get brand new tubular steel upper and lower control arms with polyurethane bushings, steel spindles, Rubber Brake Lines, new coilovers, new power rack & pinion with bushings or remanufactured power rack & pinion with bushings and an 11" brake kit featuring GM Metric-style calipers.
Charts
Guides & Documents
Speedway Motors 9109687 Specifications
Speedway Motors 9109687 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9109687 |
| Brand | Speedway Motors |
| Front Suspension Type | IFS |
| Suspension Height Adjustment | Lowered |
| Control Arm Style | Tubular |
| Spring Type | Coil Spring |
| Bolt Pattern | 5 on 4.5" |
| Spindle Style | Ford Custom |
| Dropped Spindles | No |
| Spindles Included | Yes |
| Brakes Included | Yes |
| Steering Included | Yes |
| Caliper Pistons | Single |
| Caliper Finish | Natural |
| Hardware Included | Yes |
| Welding Required | Yes |
| GENERAL | |
| Sold in Quantity | Kit |
