Product Summary

390, 427, 428, Gasoline Fuel Type, Aluminum, Silver

    Key Specs

    MFG. Part #7719 MRG
    BrandMr Gasket

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

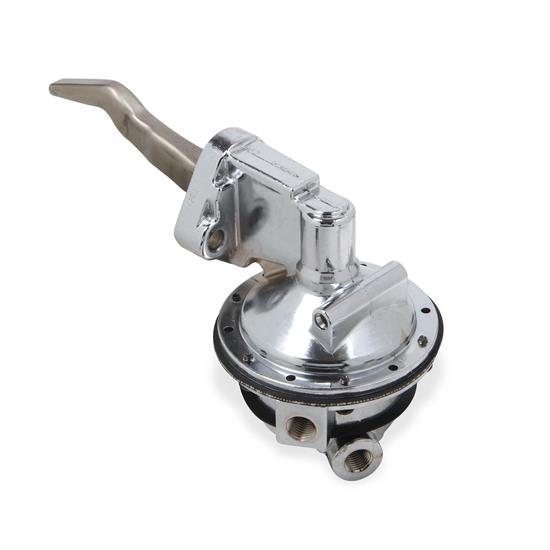

    Mr. Gasket mechanical fuel pumps range from 80 to 110 GPH in many various applications to cover most Chevrolet, Ford, Chrysler and Pontiac V-8 engines

    Mr. Gasket fuel pumps are suitable for street use and high output racing applications when a mechanical pump is desired or required.

    High Output Racing Applications Ford 390/427/428 FE V8sCompatible with Gasoline

    • High output racing applications
    • Flows 110 GPH free flow
    • Shutoff pressure pre-set from 6.5 to 8 PSI
    • Fuel pressure regulator is not required due to build-in shutoff
    • Heavy duty construction for continuous high rpm operation
    • Lower pump body can be clocked in different positions to tailor to your specific orientation needs
    • Inlet & outlet tapped for 3/8" NPT

    Specifications

    KEY SPECS
    MFG. Part #7719 MRG
    BrandMr Gasket
    GENERAL
    Fuel TypeGasoline
    Free Flow Rate110 GPH / 416 LPH
    Maximum Pressure8 psi
    Fuel Pump Inlet Size1/4 inch NPT female
    Fuel Pump Outlet Size1/4 inch NPT female
    Inlet AttachmentFemale Threads
    Outlet AttachmentFemale Threads
    Material TypeAluminum
    ColorSilver
    Regulator RequiredNo
    Inlet Size1/4 - 20 NPT
    NotesGasket included.
    Inlet Quantity1
    Outlet Quantity1
    GTIN Code090127741702
    Sold in QuantityEach
