#9108676
Moroso Oil Pan w/High Volume Oil Pump/Pickup Kit, 86-Up SB Chevy
- Cost-effective Circle Track oil pan with Moroso quality and performance
- Trap door baffles for oil control
- Fits 78-87 Metric chassis and Camaro stubs
$336.99
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
Wet Sump Sump Style, Rear Sump Location, Steel, Black
- Cost-effective Circle Track oil pan with Moroso quality and performance
- Trap door baffles for oil control
- Fits 78-87 Metric chassis and Camaro stubs
- For 86-Up small block Chevy V8
- 25% more volume than stock oil pumps
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 9108676 |
| Brand | Speedway Motors |
| Sump Style | Wet Sump |
| Sump Location | Rear |
| Rear Main Seal Style | 1-piece |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9108676 Details
Speedway Motors 9108676 Details
Save money and move more oil with these high volume Champ style oil pan/pump combos for 1986-Up SBC engines.

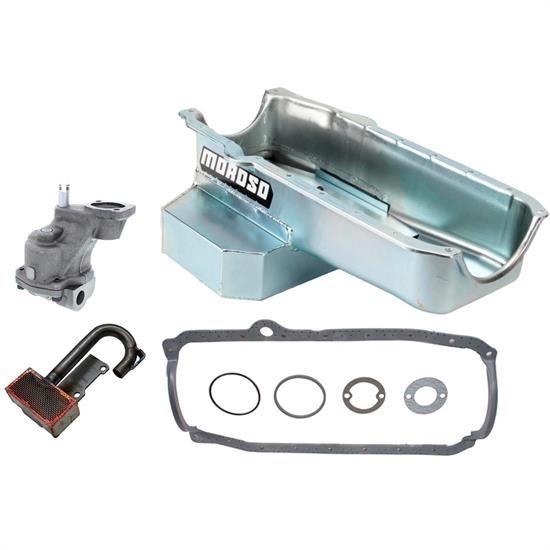

Kit Includes:
- (1) Moroso 21320 Champ Style Oil Pan
- (1) High Volume Oil Pump
- (1) Moroso 24316 Oil Pump Pick Up
- (1) Oil Pan Gasket Set
Moroso 21320 Champ Style Oil Pan
- Cost-effective Circle Track oil pan with Moroso quality and performance
- Trap door baffles for oil control
- Removable louvered windage tray
- Built–in crankscraper
- Accepts 3.80" stroke with steel rods
- 7-1/2" deep, 11" wide sump
- Accepts most starter and flywheel combinations
- Will not fit engine blocks with splayed main caps
- Has a 7 quart capacity (not including oil filter)
- Fits 78-87 Metric chassis and Camaro stubs
- Fits small block Chevy
High Volume Oil Pump
- For 1955-1999 small block Chevy V8
- 25% more volume than stock oil pumps
- Ideal for high-mileage, basic rebuilds, and racing engines
- Recommended for applications with remote filters or coolers
- Upgraded 1.500" long gear (.300" longer than stock)
- Preset to 55-65 psi, but includes low-pressure spring included if needed
- Use with 5/8" pick-up tube
Moroso 24316 Oil Pump Pick Up
- Steel champ style oil pan pick-up
- For 4-bolt small block Chevy high volume oil pumps
- Has a 5/8" diameter tube
- 1.90" centerline of holes
Oil Pan Gasket
- 1986-Up one-piece rear seal
- One-piece Pan Gasket'
- Approx 1/8" thick
- Gray gasket w/ torque limiting washers
High Volume Oil Pump (more details)
There are many scenarios where a stock-volume oil pump won't provide the protection your engine needs. Engines with loose clearances (quick rebuilds or high-mileage engines) will need more oil volume to maintain a desired pressure. Engines operating at sustained high RPM (racing) also typically need more oil volume to maintain pressure in all oil galleries.
These high-volume oil pumps move 25% more oil by utilizing 1.500" long internal gears, which is .300" longer than stock pumps. Another benefit of high volume oil pumps is increased pressure at idle, providing some much needed peace of mind on the street. These pumps come preset to 55-65 PSI of oil pressure, with an additional spring to change that pressure setting if needed.
Charts
577-OP55HV Instructions (PDF)
Speedway Motors 9108676 Specifications
Speedway Motors 9108676 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9108676 |
| Brand | Speedway Motors |
| Sump Style | Wet Sump |
| Sump Location | Rear |
| Rear Main Seal Style | 1-piece |
| GENERAL | |
| Liquid Measurement | 7 quarts |
| Material Type | Steel |
| Depth | 7.5" |
| Finish | Black |
| Has Dipstick Provision | Yes |
| Dipstick Location | Passenger Side |
| Oil Inspection Plug | No |
| Baffled | No |
| Crank Scraper Included | Yes |
| Windage Tray Included | Yes |
| Dipstick Included | No |
| Stroker Clearanced | No |
| Maximum Stroke with OE Rod | 4.125" |
| Kicked Out | No |
| Oil Pump Included | Yes |
| Gaskets Included | Yes |
| Pickup Included | Yes |
| Notes | Not for blocks with splayed main caps. |
| Sold in Quantity | Kit |
Ratings & Reviews
5
4 Reviews
Customers highly appreciate the product, praising its impressive quality and ideal fit. Noteworthy features include its comprehensive set, minus the bolts. The superior quality sets it apart from rivals, with a perfect fit for 92 sbc models. Users unanimously recommend it, attesting to its practicality in real use and commitment to buy it again, underlining its high performance and dependability.
Ratings & Reviews
5
4 Reviews
Customers highly appreciate the product, praising its impressive quality and ideal fit. Noteworthy features include its comprehensive set, minus the bolts. The superior quality sets it apart from rivals, with a perfect fit for 92 sbc models. Users unanimously recommend it, attesting to its practicality in real use and commitment to buy it again, underlining its high performance and dependability.
5
4 reviews
5
4
4
0
3
0
2
0
1
0
Filter by Ratings
I would buy this again yes
5.0
4 months ago
Billy
Co
Verified
Great product only thing is can't find the proper dip stick
Would Recommend
Yes I would buy this product again
5.0
a year ago
Skipper
Defuniak Springs fl
Verified
Bought for my 92 sbc. Everything fit as is should. Looks to be a good quality.
Would Recommend
Yes I would buy this product again
5.0
a year ago
Skipper
Defuniak Springs fl
Verified
Fits as it should. Looks to be good quality.
Would Recommend
Works great!
5.0
4 years ago
Max Stout Motorsports
Harriman, Tn.
Verified
perfect fit, came with everything but the bolts.
Would Recommend
Showing 4 of 4 reviews
Questions & Answers
Questions & Answers
Be the first to ask a question.
Fitment
Fitment
1991-1993 Buick Roadmaster
Gen 1 L03 Small Block Chevy
1994 Buick Roadmaster
Gen 1 L05 Small Block Chevy
1995-1996 Buick Roadmaster
Gen 2 LT1 Small Block Chevy
1991-1992 Cadillac Brougham
1-Piece Rear Main 305 LB9
1999-2000 Cadillac Escalade
Vortec L31 Small Block Chevy
1990-1992 Cadillac Fleetwood
Gen 1 L05 Small Block Chevy
1993-1996 Cadillac Fleetwood
Gen 2 LT1 Small Block Chevy
1987 Chevy Blazer
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988-1994 Chevy Blazer
Gen 1 L05 Small Block Chevy
1986 Chevy C10
1-Piece Rear Main 305 LG4
Gen 1 L05 Small Block Chevy
1986 Chevy C10 Suburban
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988 Chevy C15
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988-1995 Chevy C1500
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1996 Chevy C1500
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1997-1999 Chevy C1500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1992-1995 Chevy C1500 Suburban
Gen 1 L05 Small Block Chevy
1996-1999 Chevy C1500 Suburban
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986-1987 Chevy C20
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1986 Chevy C20 Suburban
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988-1995 Chevy C2500
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1996 Chevy C2500
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1997-1998 Chevy C2500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1999 Chevy C2500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1992-1995 Chevy C2500 Suburban
Gen 1 L05 Small Block Chevy
1996-1999 Chevy C2500 Suburban
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986 Chevy C30
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988-1995 Chevy C35
Gen 1 L05 Small Block Chevy
1996-1999 Chevy C35
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1988-1995 Chevy C3500
Gen 1 L05 Small Block Chevy
1996-1999 Chevy C3500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986 Chevy Camaro
1-Piece Rear Main 305 LB9
1987-1991 Chevy Camaro
1-Piece Rear Main 305 LB9
Gen 1 L98 Small Block Chevy
1992 Chevy Camaro
1-Piece Rear Main 305 LB9
Gen 1 L98 Small Block Chevy
Gen 2 LT1 Small Block Chevy
1993-1995 Chevy Camaro
Gen 2 LT1 Small Block Chevy
1996-1999 Chevy Camaro
Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy
1986-1993 Chevy Caprice
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1994-1995 Chevy Caprice
Gen 2 LT1 Small Block Chevy
1996 Chevy Caprice
Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy
1986-1991 Chevy Corvette
Gen 1 L98 Small Block Chevy
1992-1995 Chevy Corvette
Gen 2 LT1 Small Block Chevy
1996 Chevy Corvette
Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy
1986-1987 Chevy El Camino
Gen 1 L03 Small Block Chevy
1996-1999 Chevy Express 1500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
2000-2002 Chevy Express 1500
Vortec L30 Small Block Chevy
1996 Chevy Express 2500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1997 Chevy Express 2500
Gen 2 LT1 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1998-1999 Chevy Express 2500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
2000-2002 Chevy Express 2500
Vortec L30 Small Block Chevy
1996-1999 Chevy Express 3500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986-1993 Chevy G10
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1994-1995 Chevy G10
Gen 1 L03 Small Block Chevy
1986-1995 Chevy G20
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1986-1995 Chevy G30
Gen 1 L05 Small Block Chevy
1996 Chevy G30
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1994-1995 Chevy Impala
Gen 2 LT1 Small Block Chevy
1996 Chevy Impala
Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy
1986 Chevy K10
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1986 Chevy K10 Suburban
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988-1995 Chevy K1500
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1996-1999 Chevy K1500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1992-1995 Chevy K1500 Suburban
Gen 1 L05 Small Block Chevy
1996-1999 Chevy K1500 Suburban
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986 Chevy K20
Gen 1 L05 Small Block Chevy
1986 Chevy K20 Suburban
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988-1995 Chevy K2500
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1996 Chevy K2500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1997-1998 Chevy K2500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1999 Chevy K2500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1992-1995 Chevy K2500 Suburban
Gen 1 L05 Small Block Chevy
1996-1999 Chevy K2500 Suburban
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986 Chevy K30
Gen 1 L05 Small Block Chevy
1988-1995 Chevy K3500
Gen 1 L05 Small Block Chevy
1996-1999 Chevy K3500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986 Chevy K5 Blazer
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1986-1988 Chevy Monte Carlo
Gen 1 L03 Small Block Chevy
1986-1995 Chevy P30
Gen 1 L05 Small Block Chevy
1996-1999 Chevy P30
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1987 Chevy R10
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1987 Chevy R10 Suburban
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988 Chevy R10 Suburban
Gen 1 L05 Small Block Chevy
1989-1991 Chevy R1500 Suburban
Gen 1 L05 Small Block Chevy
1987 Chevy R20
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988 Chevy R20
Gen 1 L05 Small Block Chevy
1987-1988 Chevy R20 Suburban
Gen 1 L05 Small Block Chevy
1995 Chevy R25
Gen 1 L05 Small Block Chevy
1996-1999 Chevy R25
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1989 Chevy R2500
Gen 1 L05 Small Block Chevy
1989-1991 Chevy R2500 Suburban
Gen 1 L05 Small Block Chevy
1987-1988 Chevy R30
Gen 1 L05 Small Block Chevy
1989-1991 Chevy R3500
Gen 1 L05 Small Block Chevy
1995 Chevy Silverado
Gen 1 L05 Small Block Chevy
1996-1999 Chevy Silverado
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1987-1994 Chevy Suburban
Gen 1 L05 Small Block Chevy
1995 Chevy Suburban 1500
Gen 1 L05 Small Block Chevy
1996-1999 Chevy Suburban 1500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1995 Chevy Tahoe
Gen 1 L05 Small Block Chevy
1996-1999 Chevy Tahoe
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1987 Chevy V10
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1987-1988 Chevy V10 Suburban
Gen 1 L05 Small Block Chevy
1989-1991 Chevy V1500 Suburban
Gen 1 L05 Small Block Chevy
1987 Chevy V20
Gen 1 L05 Small Block Chevy
1987-1988 Chevy V20 Suburban
Gen 1 L05 Small Block Chevy
1989-1991 Chevy V2500 Suburban
Gen 1 L05 Small Block Chevy
1987-1988 Chevy V30
Gen 1 L05 Small Block Chevy
1989-1991 Chevy V3500
Gen 1 L05 Small Block Chevy
1998-1999 GMC C1500
Vortec L31 Small Block Chevy
1992-1999 GMC C1500 Suburban
Vortec L31 Small Block Chevy
1987-1995 GMC G1500
Gen 1 L05 Small Block Chevy
1987-1995 GMC G2500
Gen 1 L05 Small Block Chevy
1987-1994 GMC G3500
Gen 1 L05 Small Block Chevy
1995-1996 GMC G3500
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy
1986 GMC Jimmy
Gen 1 L05 Small Block Chevy
1987 GMC Jimmy
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy
1988-1990 GMC Jimmy
Gen 1 L05 Small Block Chevy
1998-1999 GMC K1500
Vortec L31 Small Block Chevy
1981-1986 GMC K1500 Suburban
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy
1992-1999 GMC K1500 Suburban
Vortec L31 Small Block Chevy
1986 GMC K2500
Gen 1 L05 Small Block Chevy
1996-2000 GMC K2500
Vortec L31 Small Block Chevy
1992-1993 GMC K2500 Suburban
Gen 1 L05 Small Block Chevy
1987 GMC R1500 Suburban
Vortec L31 Small Block Chevy
1988-1991 GMC R1500 Suburban
Gen 1 L98 Small Block Chevy
1996-2000 GMC Savana 1500
Vortec L31 Small Block Chevy
1987-1991 GMC V1500 Suburban
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy
1987 GMC V2500
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy
1987-1991 GMC V2500 Suburban
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy
1992-2011 GMC Yukon
Vortec L31 Small Block Chevy
