Moroso Oil Pan w/High Volume Oil Pump/Pickup Kit, 80-85 SB Chevy

#9108674

Moroso Oil Pan w/High Volume Oil Pump/Pickup Kit, 80-85 SB Chevy

Name: Moroso Oil Pan w/High Volume Oil Pump/Pickup Kit, 80-85 SB Chevy
Brand: Speedway Motors
SKU: 9108674
Price: 357.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

Cost-effective Circle Track oil pan with Moroso quality and performance
Fits 78-87 Metric chassis and Camaro stubs
Trap door baffles for oil control

$357.99

/kit

In Stock

$364.96

Save $6.97

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Wet Sump Sump Style, Rear Sump Location, Steel, Black

Cost-effective Circle Track oil pan with Moroso quality and performance
Fits 78-87 Metric chassis and Camaro stubs
Trap door baffles for oil control
For 80-85 small block Chevy V8
25% more volume than stock oil pumps

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	9108674
Brand	Speedway Motors
Sump Style	Wet Sump
Sump Location	Rear
Rear Main Seal Style	2-piece

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9108674 Details

Save money and move more oil with these high volume Champ style oil pan/pump combos for 1980-85 (passenger side dipstick) SBC engines.

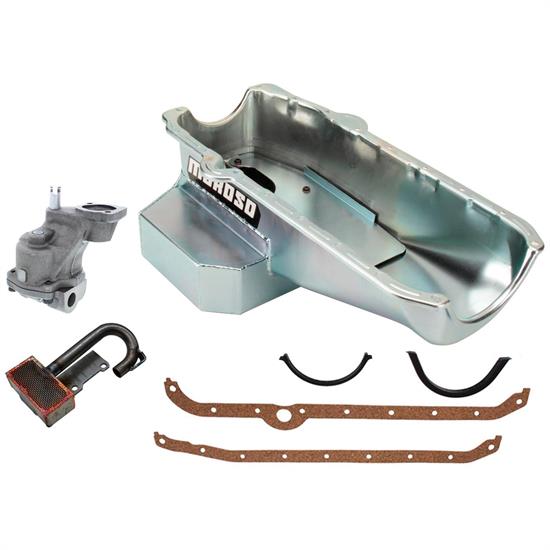

Kit Includes:

(1) Moroso 21317 Champ Style Oil Pan
(1) High Volume Oil Pump
(1) Moroso 24316 Oil Pump Pick Up
(1) Oil Pan Gasket Set

Moroso 21317 Champ Style Oil Pan

Cost-effective Circle Track oil pan with Moroso quality and performance
Trap door baffles for oil control
Removable louvered windage tray
Built–in crankscraper
Accepts 3.80" stroke with steel rods
7-1/2" deep, 11" wide
Accepts most starter and flywheel combinations
Will not fit engine blocks with splayed main caps
Has a 7 quart capacity (not including oil filter)
Fits 78-87 Metric chassis and Camaro stubs
Fits small block Chevy

High Volume Oil Pump

For 1955-1999 small block Chevy V8
25% more volume than stock oil pumps
Ideal for high-mileage, basic rebuilds, and racing engines
Recommended for applications with remote filters or coolers
Upgraded 1.500" long gear (.300" longer than stock)
Preset to 55-65 psi, but includes low-pressure spring included if needed
Use with 5/8" pick-up tube

Moroso 24316 Oil Pump Pick Up

Steel champ style oil pan pick-up
For 4-bolt small block Chevy high volume oil pumps
Has a 5/8" diameter tube
1.90" centerline of holes

Oil Pan Gasket Set

Right Hand side ('80-'85) dipstick
For 2-piece rear main seal blocks

High Volume Oil Pump (more details)

There are many scenarios where a stock-volume oil pump won't provide the protection your engine needs. Engines with loose clearances (quick rebuilds or high-mileage engines) will need more oil volume to maintain a desired pressure. Engines operating at sustained high RPM (racing) also typically need more oil volume to maintain pressure in all oil galleries.

These high-volume oil pumps move 25% more oil by utilizing 1.500" long internal gears, which is .300" longer than stock pumps. Another benefit of high volume oil pumps is increased pressure at idle, providing some much needed peace of mind on the street. These pumps come preset to 55-65 PSI of oil pressure, with an additional spring to change that pressure setting if needed.

Charts

577-OP55HV Instructions (PDF)

Guides & Documents

Engine Oil Pans Installation Instructions (9108674)

Engine Oil Pumps Installation Instructions (577OP55HV)

Oil Pan Gaskets Warranty (91010222)

Speedway Motors 9108674 Specifications

KEY SPECS
MFG. Part #	9108674
Brand	Speedway Motors
Sump Style	Wet Sump
Sump Location	Rear
Rear Main Seal Style	2-piece

GENERAL
Liquid Measurement	7 quarts
Material Type	Steel
Depth	7.5"
Finish	Black
Has Dipstick Provision	Yes
Dipstick Location	Passenger Side
Oil Inspection Plug	No
Baffled	No
Crank Scraper Included	Yes
Windage Tray Included	Yes
Dipstick Included	No
Stroker Clearanced	Yes
Maximum Stroke with OE Rod	4.125"
Kicked Out	Yes
Oil Pump Included	Yes
Gaskets Included	Yes
Pickup Included	Yes
Notes	Not for blocks with splayed main caps.
Sold in Quantity	Kit

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

Nice

5.0

5 years ago

Adam

Johnstown, Pa

Verified

Fit great, sturdy

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

Be the first to ask a question.

Fitment

1970-1975 Chevy Bel Air

2-Piece Rear Main Chevy 400

1970-1972 Chevy Biscayne

2-Piece Rear Main Chevy 400

1970-1972 Chevy Brookwood

2-Piece Rear Main Chevy 400

1976-1980 Chevy C10

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1981-1986 Chevy C10

Gen 1 LG3 Small Block Chevy

1976-1982 Chevy C10 Suburban

Gen 1 LG3 Small Block Chevy

1983-1986 Chevy C10 Suburban

2-Piece Rear Main 305 LG4

1982-1987 Chevy C15

Gen 1 LE9 Small Block Chevy

1976 Chevy C20

2-Piece Rear Main Chevy 400

1977-1980 Chevy C20

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1981-1982 Chevy C20

Gen 1 LG3 Small Block Chevy

1983-1986 Chevy C20

2-Piece Rear Main 305 LG4

1976-1978 Chevy C20 Suburban

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1979-1980 Chevy C20 Suburban

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 400

1981-1986 Chevy C20 Suburban

2-Piece Rear Main 305 LG4

1976-1977 Chevy C30

2-Piece Rear Main Chevy 400

1978-1979 Chevy C30

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1986 Chevy C30

2-Piece Rear Main 305 LG4

1976-1979 Chevy Camaro

Gen 1 LG3 Small Block Chevy

1980-1981 Chevy Camaro

2-Piece Rear Main Chevy 267
Gen 1 LG3 Small Block Chevy

1982 Chevy Camaro

Gen 1 LG3 Small Block Chevy

1983-1984 Chevy Camaro

2-Piece Rear Main 305 LG4

1985 Chevy Camaro

2-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4
Gen 1 L69 Small Block Chevy

1986 Chevy Camaro

2-Piece Rear Main 305 LG4

1970-1976 Chevy Caprice

2-Piece Rear Main Chevy 400

1977 Chevy Caprice

Gen 1 LG3 Small Block Chevy

1978-1979 Chevy Caprice

2-Piece Rear Main 305 LG4

1980-1982 Chevy Caprice

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 267

1983-1986 Chevy Caprice

2-Piece Rear Main 305 LG4

1970-1973 Chevy Chevelle

2-Piece Rear Main Chevy 400

1980 Chevy Corvette

Gen 1 LG3 Small Block Chevy

1970-1975 Chevy El Camino

2-Piece Rear Main Chevy 400

1976 Chevy El Camino

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1977-1978 Chevy El Camino

Gen 1 LG3 Small Block Chevy

1979-1982 Chevy El Camino

2-Piece Rear Main Chevy 267
Gen 1 LG3 Small Block Chevy

1983-1986 Chevy El Camino

2-Piece Rear Main 305 LG4

1970 Chevy Estate

2-Piece Rear Main Chevy 400

1976 Chevy G10

2-Piece Rear Main Chevy 400

1977-1982 Chevy G10

Gen 1 LG3 Small Block Chevy

1983-1986 Chevy G10

2-Piece Rear Main 305 LG4

1975-1976 Chevy G20

2-Piece Rear Main Chevy 400

1977-1980 Chevy G20

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1981-1982 Chevy G20

Gen 1 LG3 Small Block Chevy

1983-1986 Chevy G20

2-Piece Rear Main 305 LG4

1975-1977 Chevy G30

2-Piece Rear Main Chevy 400

1978-1979 Chevy G30

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1980 Chevy G30

2-Piece Rear Main Chevy 400

1982 Chevy G30

Gen 1 LG3 Small Block Chevy

1985 Chevy G30

2-Piece Rear Main 305 LG4

1970-1976 Chevy Impala

2-Piece Rear Main Chevy 400

1977-1979 Chevy Impala

Gen 1 LG3 Small Block Chevy

1980-1982 Chevy Impala

2-Piece Rear Main Chevy 267
Gen 1 LG3 Small Block Chevy

1983-1985 Chevy Impala

2-Piece Rear Main 305 LG4

1975-1976 Chevy K10

2-Piece Rear Main Chevy 400

1977-1979 Chevy K10

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1980 Chevy K10

2-Piece Rear Main Chevy 400

1981-1982 Chevy K10

Gen 1 LG3 Small Block Chevy

1983-1986 Chevy K10

2-Piece Rear Main 305 LG4

1975 Chevy K10 Suburban

2-Piece Rear Main Chevy 400

1976-1979 Chevy K10 Suburban

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1980-1982 Chevy K10 Suburban

Gen 1 LG3 Small Block Chevy

1983-1986 Chevy K10 Suburban

2-Piece Rear Main 305 LG4

1975-1976 Chevy K20

2-Piece Rear Main Chevy 400

1977-1978 Chevy K20

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1979 Chevy K20

2-Piece Rear Main Chevy 400

1980 Chevy K20

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1985 Chevy K20

2-Piece Rear Main 305 LG4

1975-1976 Chevy K20 Suburban

2-Piece Rear Main Chevy 400

1977-1978 Chevy K20 Suburban

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1979-1980 Chevy K20 Suburban

2-Piece Rear Main Chevy 400

1985-1986 Chevy K20 Suburban

2-Piece Rear Main 305 LG4

1977-1980 Chevy K30

2-Piece Rear Main Chevy 400

1975-1976 Chevy K5 Blazer

2-Piece Rear Main Chevy 400

1977-1979 Chevy K5 Blazer

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1980-1981 Chevy K5 Blazer

Gen 1 LG3 Small Block Chevy

1982-1986 Chevy K5 Blazer

2-Piece Rear Main 305 LG4

1970-1972 Chevy Kingswood

2-Piece Rear Main Chevy 400

1973-1975 Chevy Laguna

2-Piece Rear Main Chevy 400

1976 Chevy Laguna

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1973-1975 Chevy Malibu

2-Piece Rear Main Chevy 400

1976 Chevy Malibu

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1977-1978 Chevy Malibu

Gen 1 LG3 Small Block Chevy

1979-1982 Chevy Malibu

2-Piece Rear Main Chevy 267
Gen 1 LG3 Small Block Chevy

1983 Chevy Malibu

2-Piece Rear Main 305 LG4

1970-1975 Chevy Monte Carlo

2-Piece Rear Main Chevy 400

1976 Chevy Monte Carlo

2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1977 Chevy Monte Carlo

Gen 1 LG3 Small Block Chevy

1978 Chevy Monte Carlo

2-Piece Rear Main 305 LG4

1979-1982 Chevy Monte Carlo

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 267

1983-1986 Chevy Monte Carlo

2-Piece Rear Main 305 LG4

1975 Chevy Monza

2-Piece Rear Main Chevy 262

1976 Chevy Monza

2-Piece Rear Main Chevy 262
Gen 1 LG3 Small Block Chevy

1977-1979 Chevy Monza

Gen 1 LG3 Small Block Chevy

1975 Chevy Nova

2-Piece Rear Main Chevy 262

1976-1979 Chevy Nova

Gen 1 LG3 Small Block Chevy

1976 Chevy P30

2-Piece Rear Main Chevy 400

1970-1972 Chevy Townsman

2-Piece Rear Main Chevy 400

1963-1965 GMC 1000 Series

Gen 1 LE9 Small Block Chevy

1973-1974 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 400

1970-1973 GMC Jimmy

Gen 1 LE9 Small Block Chevy

1978-1982 GMC Jimmy

Gen 1 LE9 Small Block Chevy

1975-1978 GMC K15

2-Piece Rear Main Chevy 400

1975-1978 GMC K15 Suburban

2-Piece Rear Main Chevy 400

1967-1974 GMC K15/K1500 Pickup

2-Piece Rear Main Chevy 400

1967-1974 GMC K15/K1500 Suburban

2-Piece Rear Main Chevy 400

1979-1980 GMC K1500 Suburban

2-Piece Rear Main Chevy 400

1975-1978 GMC K25

2-Piece Rear Main Chevy 400

1975-1978 GMC K25 Suburban

2-Piece Rear Main Chevy 400

1973-1974 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 400

1973-1974 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 400

1979-1986 GMC K2500 Suburban

2-Piece Rear Main Chevy 400

1973-1974 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 400

1973-1977 GMC Sprint

2-Piece Rear Main Chevy 400

1960-1966 GMC Suburban

Gen 1 L69 Small Block Chevy

1975-1977 Oldsmobile Starfire

305 Chevy Small Block V8

1985 Pontiac Firebird

2-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4
Gen 1 L69 Small Block Chevy
