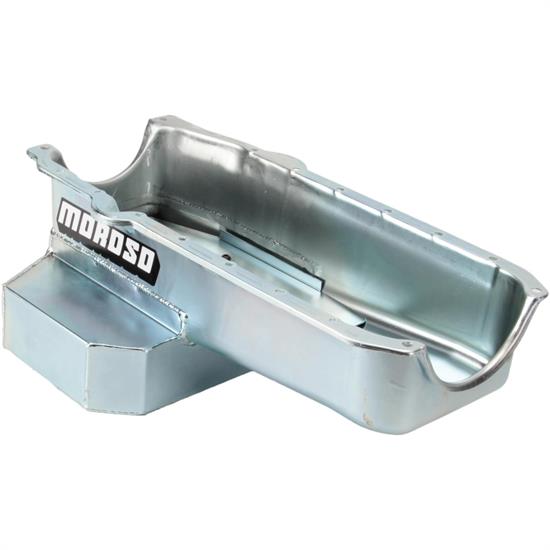

Moroso 21320 Circle Track Oil Pan, 1986-Up w/ One Piece Rear Main Seal
- Will work with 1986-up Chevy Small Block V8 with one piece rear main seal
- Pan is made of steel and features a 7 quart capacity
- Features a removable louvered windage tray
$227.99
/each
In Stock
$267.17
Save $39.18
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
Wet Sump Sump Style, Rear Sump Location, Steel, Black
- Will work with 1986-up Chevy Small Block V8 with one piece rear main seal
- Pan is made of steel and features a 7 quart capacity
- Features a removable louvered windage tray
- Designed to accept a 3.80" stroke with steel rods
- Engineered to work with most starter and flywheel combinations
Key Specs
| MFG. Part # | 21320 |
| Brand | Moroso |
| Sump Style | Wet Sump |
| Sump Location | Rear |
| Rear Main Seal Style | 1-piece |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyMoroso 21320 Details
Moroso 21320 Details
Now you can have a Moroso oil pan for an affordable price. It features trap doors for oil control, removable windage tray, built-in crank scraper and accepts up to 3.800" stroke with steel rods. It's 7-1/2" deep, 11" wide and fits 78-87 Metric chassis and Camaro stubs. Fits small block Chevy.
- Cost-effective Circle Track oil pan with Moroso quality and performance
- Trap door baffles for oil control
- Removable louvered windage tray
- Built–in crankscraper
- Accepts 3.80" stroke with steel rods
- Accepts most starter and flywheel combinations
- Will not fit engine blocks with splayed main caps
- Has a 7 quart capacity (not including oil filter)
Moroso 21320 Specifications
Moroso 21320 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 21320 |
| Brand | Moroso |
| Sump Style | Wet Sump |
| Sump Location | Rear |
| Rear Main Seal Style | 1-piece |
| GENERAL | |
| Liquid Measurement | 7 quarts |
| Material Type | Steel |
| Depth | 7.5" |
| Finish | Black |
| Has Dipstick Provision | Yes |
| Dipstick Location | Passenger Side |
| Oil Inspection Plug | No |
| Baffled | No |
| Crank Scraper Included | Yes |
| Windage Tray Included | Yes |
| Dipstick Included | No |
| Stroker Clearanced | No |
| Maximum Stroke with OE Rod | 4.125" |
| Kicked Out | No |
| Oil Pump Included | No |
| Hardware Included | No |
| Gaskets Included | No |
| Pickup Included | No |
| GTIN Code | 084663213205 |
| Notes | Not for blocks with splayed main caps. |
| Sold in Quantity | Each |
Ratings & Reviews
5
1 Review
Ratings & Reviews
5
1 Review
5
1 reviews
5
1
4
0
3
0
2
0
1
0
Filter by Ratings
" Best bang for your buck."
5.0
15 years ago
Hank
Boyertown, PA.
Verified
Moroso pan is a perfect fit and does it's job of keeping oil in place for oil pickup You will not find a cheaper price anywhere!
Would Recommend
Showing 1 of 1 reviews
Questions & Answers
Questions & Answers
1 Question • 1 Answer
What high volume big block pump and pick up fit this model pan? Thanks
by Chad
• 10 years ago
1 answer
View Answer
1 of 1 questions shown
Fitment
Fitment
1991-1993 Buick Roadmaster
Gen 1 L03 Small Block Chevy
1994 Buick Roadmaster
Gen 1 L05 Small Block Chevy
1995-1996 Buick Roadmaster
Gen 2 LT1 Small Block Chevy
1991-1992 Cadillac Brougham
1-Piece Rear Main 305 LB9
1999-2000 Cadillac Escalade
Vortec L31 Small Block Chevy
1990-1992 Cadillac Fleetwood
Gen 1 L05 Small Block Chevy
1993-1996 Cadillac Fleetwood
Gen 2 LT1 Small Block Chevy
1987 Chevy Blazer
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988-1994 Chevy Blazer
Gen 1 L05 Small Block Chevy
1986 Chevy C10
1-Piece Rear Main 305 LG4
Gen 1 L05 Small Block Chevy
1986 Chevy C10 Suburban
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988 Chevy C15
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988-1995 Chevy C1500
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1996 Chevy C1500
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1997-1999 Chevy C1500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1992-1995 Chevy C1500 Suburban
Gen 1 L05 Small Block Chevy
1996-1999 Chevy C1500 Suburban
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986-1987 Chevy C20
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1986 Chevy C20 Suburban
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988-1995 Chevy C2500
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1996 Chevy C2500
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1997-1998 Chevy C2500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1999 Chevy C2500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1992-1995 Chevy C2500 Suburban
Gen 1 L05 Small Block Chevy
1996-1999 Chevy C2500 Suburban
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986 Chevy C30
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988-1995 Chevy C35
Gen 1 L05 Small Block Chevy
1996-1999 Chevy C35
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1988-1995 Chevy C3500
Gen 1 L05 Small Block Chevy
1996-1999 Chevy C3500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986 Chevy Camaro
1-Piece Rear Main 305 LB9
1987-1991 Chevy Camaro
1-Piece Rear Main 305 LB9
Gen 1 L98 Small Block Chevy
1992 Chevy Camaro
1-Piece Rear Main 305 LB9
Gen 1 L98 Small Block Chevy
Gen 2 LT1 Small Block Chevy
1993-1995 Chevy Camaro
Gen 2 LT1 Small Block Chevy
1996-1999 Chevy Camaro
Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy
1986-1993 Chevy Caprice
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1994-1995 Chevy Caprice
Gen 2 LT1 Small Block Chevy
1996 Chevy Caprice
Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy
1986-1991 Chevy Corvette
Gen 1 L98 Small Block Chevy
1992-1995 Chevy Corvette
Gen 2 LT1 Small Block Chevy
1996 Chevy Corvette
Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy
1986-1987 Chevy El Camino
Gen 1 L03 Small Block Chevy
1996-1999 Chevy Express 1500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
2000-2002 Chevy Express 1500
Vortec L30 Small Block Chevy
1996 Chevy Express 2500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1997 Chevy Express 2500
Gen 2 LT1 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1998-1999 Chevy Express 2500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
2000-2002 Chevy Express 2500
Vortec L30 Small Block Chevy
1996-1999 Chevy Express 3500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986-1993 Chevy G10
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1994-1995 Chevy G10
Gen 1 L03 Small Block Chevy
1986-1995 Chevy G20
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1986-1995 Chevy G30
Gen 1 L05 Small Block Chevy
1996 Chevy G30
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1994-1995 Chevy Impala
Gen 2 LT1 Small Block Chevy
1996 Chevy Impala
Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy
1986 Chevy K10
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1986 Chevy K10 Suburban
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988-1995 Chevy K1500
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1996-1999 Chevy K1500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1992-1995 Chevy K1500 Suburban
Gen 1 L05 Small Block Chevy
1996-1999 Chevy K1500 Suburban
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986 Chevy K20
Gen 1 L05 Small Block Chevy
1986 Chevy K20 Suburban
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988-1995 Chevy K2500
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1996 Chevy K2500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1997-1998 Chevy K2500
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy
1999 Chevy K2500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1992-1995 Chevy K2500 Suburban
Gen 1 L05 Small Block Chevy
1996-1999 Chevy K2500 Suburban
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986 Chevy K30
Gen 1 L05 Small Block Chevy
1988-1995 Chevy K3500
Gen 1 L05 Small Block Chevy
1996-1999 Chevy K3500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1986 Chevy K5 Blazer
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1986-1988 Chevy Monte Carlo
Gen 1 L03 Small Block Chevy
1986-1995 Chevy P30
Gen 1 L05 Small Block Chevy
1996-1999 Chevy P30
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1987 Chevy R10
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1987 Chevy R10 Suburban
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988 Chevy R10 Suburban
Gen 1 L05 Small Block Chevy
1989-1991 Chevy R1500 Suburban
Gen 1 L05 Small Block Chevy
1987 Chevy R20
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1988 Chevy R20
Gen 1 L05 Small Block Chevy
1987-1988 Chevy R20 Suburban
Gen 1 L05 Small Block Chevy
1995 Chevy R25
Gen 1 L05 Small Block Chevy
1996-1999 Chevy R25
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1989 Chevy R2500
Gen 1 L05 Small Block Chevy
1989-1991 Chevy R2500 Suburban
Gen 1 L05 Small Block Chevy
1987-1988 Chevy R30
Gen 1 L05 Small Block Chevy
1989-1991 Chevy R3500
Gen 1 L05 Small Block Chevy
1995 Chevy Silverado
Gen 1 L05 Small Block Chevy
1996-1999 Chevy Silverado
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1987-1994 Chevy Suburban
Gen 1 L05 Small Block Chevy
1995 Chevy Suburban 1500
Gen 1 L05 Small Block Chevy
1996-1999 Chevy Suburban 1500
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1995 Chevy Tahoe
Gen 1 L05 Small Block Chevy
1996-1999 Chevy Tahoe
Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy
1987 Chevy V10
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
1987-1988 Chevy V10 Suburban
Gen 1 L05 Small Block Chevy
1989-1991 Chevy V1500 Suburban
Gen 1 L05 Small Block Chevy
1987 Chevy V20
Gen 1 L05 Small Block Chevy
1987-1988 Chevy V20 Suburban
Gen 1 L05 Small Block Chevy
1989-1991 Chevy V2500 Suburban
Gen 1 L05 Small Block Chevy
1987-1988 Chevy V30
Gen 1 L05 Small Block Chevy
1989-1991 Chevy V3500
Gen 1 L05 Small Block Chevy
1998-1999 GMC C1500
Vortec L31 Small Block Chevy
1992-1999 GMC C1500 Suburban
Vortec L31 Small Block Chevy
1987-1995 GMC G1500
Gen 1 L05 Small Block Chevy
1987-1995 GMC G2500
Gen 1 L05 Small Block Chevy
1987-1994 GMC G3500
Gen 1 L05 Small Block Chevy
1995-1996 GMC G3500
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy
1986 GMC Jimmy
Gen 1 L05 Small Block Chevy
1987 GMC Jimmy
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy
1988-1990 GMC Jimmy
Gen 1 L05 Small Block Chevy
1998-1999 GMC K1500
Vortec L31 Small Block Chevy
1981-1986 GMC K1500 Suburban
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy
1992-1999 GMC K1500 Suburban
Vortec L31 Small Block Chevy
1986 GMC K2500
Gen 1 L05 Small Block Chevy
1996-2000 GMC K2500
Vortec L31 Small Block Chevy
1992-1993 GMC K2500 Suburban
Gen 1 L05 Small Block Chevy
1987 GMC R1500 Suburban
Vortec L31 Small Block Chevy
1988-1991 GMC R1500 Suburban
Gen 1 L98 Small Block Chevy
1996-2000 GMC Savana 1500
Vortec L31 Small Block Chevy
1987-1991 GMC V1500 Suburban
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy
1987 GMC V2500
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy
1987-1991 GMC V2500 Suburban
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy
1992-2011 GMC Yukon
Vortec L31 Small Block Chevy
