Model A 4-Bar I-Beam Axle Kit for Ford Spindles, Plain
- 48" I-Beam Axle Model A 4-bar for Ford spindles
- Plain steel
- 31-1/4" eye-to-eye 6-leaf Super Glide cross spring
$1,111.99
/kit
On Backorder
$1,134.36
Save $22.37
This part is Backordered. We estimate this item will ship on or before December 30th.
Get something sooner
Browse In Stock and Ready to Ship AlternativesQuantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Straight Axle Front Suspension Type
- 48" I-Beam Axle Model A 4-bar for Ford spindles
- Plain steel
- 31-1/4" eye-to-eye 6-leaf Super Glide cross spring
- Urethane-bushed 21" long 4-bar assembly
- All hardware for assembly
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 91639531 |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 4 Inch Lowered |
| Control Arm Style | 4-Bar |
| Shock Type | Not Included |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91639531 Details
Speedway Motors 91639531 Details
Save yourself the searching and confusion with these complete '28-'31 Ford Model A front suspension kits. Each kit includes a 48" wide, 4" drop I-beam axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly.
Requires '37-'48 Ford passenger car spindles.
Each kit includes:
- 48" kingpin-to-kingpin I-beam axle, 4" drop
- Urethane-bushed 21" long 4-bar assembly
- Forged steel perch bolts
- Forged steel lower shock mounts (key-slotted design)
- Spring shackles w/ nylon bushings
- 31-1/4" eye-to-eye 6-leaf Super Glide cross spring
- All hardware for assembly
Charts

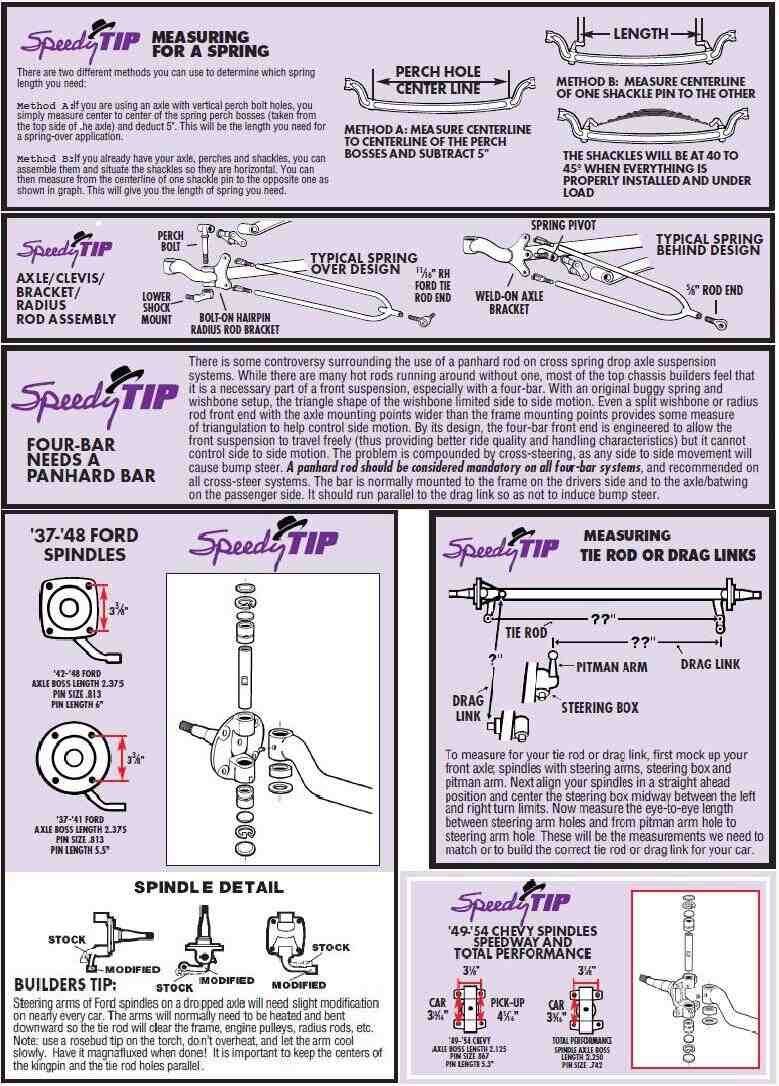

Guides & Documents
Speedway Motors 91639531 Specifications
Speedway Motors 91639531 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91639531 |
| Brand | Speedway Motors |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 4 Inch Lowered |
| Control Arm Style | 4-Bar |
| Shock Type | Not Included |
| Spring Type | Leaf Spring |
| Finish | Natural |
| Rotor Diameter | Not Included |
| Spindle Style | Ford Custom |
| Dropped Spindles | No |
| Dropped Axle | Yes |
| Dropped Control Arms | No |
| Front Leaf Spring Style | Spring-Over Axle |
| Spindles Included | No |
| Brakes Included | No |
| Steering Included | No |
| Welding Required | Yes |
| GENERAL | |
| Straight Axle Style | Solid I-Beam |
Ratings & Reviews
4.6
5 Reviews
Customers commend the product for its superior quality and robustness, further distinguishing it from competition due to its cost-effectiveness. As a trusted provider for 15+ years, our product's usability in building hot rods has been praised. Despite requiring aftermarket spindles for some setups, our comprehensive 4 bar Model A kit, complete with adjustable front spring perches and front panhard bar, is highly recommended for Model A suspension builds due to its exceptional value and completeness.
Ratings & Reviews
4.6
5 Reviews
Customers commend the product for its superior quality and robustness, further distinguishing it from competition due to its cost-effectiveness. As a trusted provider for 15+ years, our product's usability in building hot rods has been praised. Despite requiring aftermarket spindles for some setups, our comprehensive 4 bar Model A kit, complete with adjustable front spring perches and front panhard bar, is highly recommended for Model A suspension builds due to its exceptional value and completeness.
4.6
5 reviews
5
4
4
0
3
1
2
0
1
0
Filter by Ratings
1931 Model A 5 window coupe
5.0
4 years ago
Fast John
Orlando Fl.
Verified
I like the kit if I could just get the back order. No axle
Would Recommend
Yes great product
5.0
5 years ago
Mike
Stoney Creek Ontario Canada
Verified
Fabulous looking and stong
Would Recommend
ive purchased more than one
5.0
9 years ago
grumpy
valley stream ny
Verified
Ive been buying from speedway for over 15 years and have never had and problems with products i will continue to purchase parts as long as i am building hot rods
Would Recommend
Needs aftermarket spindles
3.0
9 years ago
gregga
Cedar Rapids
Verified
Mounted this assembly and hung my 37 Ford spindles only to find they bind on the axle drop area. Bought aftermarket spindles and arms and found the tie rod ends put the rods into contact with the bars. Had to convert to Heim joints.
Would Recommend
every thing you need!
5.0
12 years ago
bigvinny51
Pittsburgh, PA, USA
Front 4 bar model a kit is a great value. No one comes close in price and it comes with every thing you need to build your Model a front suspension. kit quality was good and very complete. I upgraded mine with the adjustable front spring perches and front panhard bar kit.
Would Recommend
Showing 5 of 5 reviews
Questions & Answers
Questions & Answers
8 Questions • 9 Answers
What width frame would be ideal to use with this kit
by Rek
• 8 years ago
2 answers
View Answers
Will my factory 40 ford spindals work on this axle
by Johnwayne
• 9 years ago
1 answer
View Answer
could I substitute the 4 bars for stainless bars
by Nikk
• 9 years ago
1 answer
View Answer
I am building my own frame. I am thinking of making it 28" wide inside width. Would this measurement be adequate for this kit? Should I make the frame wider than 28"?
by Luke
• 9 years ago
1 answer
View Answer
can a drilled I beam be substituted?
by Pop
• 10 years ago
1 answer
View Answer
What is the maximum frame width that will work with these wishbones. My frame is currently 35" wide. Do I need to narrow it? I'm also considering a 4 bar or hairpin setup. I will be using cross steering with a Vega Box. Thanks!
by Luke
• 10 years ago
1 answer
View Answer
What is the difference between this kit and 91639501 ?
by Luke
• 10 years ago
1 answer
View Answer
could a 46" axle be substituted?
by
• 15 years ago
1 answer
View Answer
8 of 8 questions shown
