Product Summary

Universal Fit, 0.57" Overall Length, Aluminum

    Comes as a Kit

    Key Specs

    MFG. Part #9108391
    BrandQuik Latch
    Material TypeAluminum
    FinishAnodized Black

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Quik Latch 9108391 Details

    These small latches can be used for multi-purpose quick-release latching. Center release button stays in the down position until re-latched. Each latch body has a 1-1/4" O.D. and is supplied with one mounting stud, two threaded nuts, and two washers. The included mounting cup is used to mount the stud underneath a panel. The mounting cup can be easily riveted or bolted to the backside of any panel.

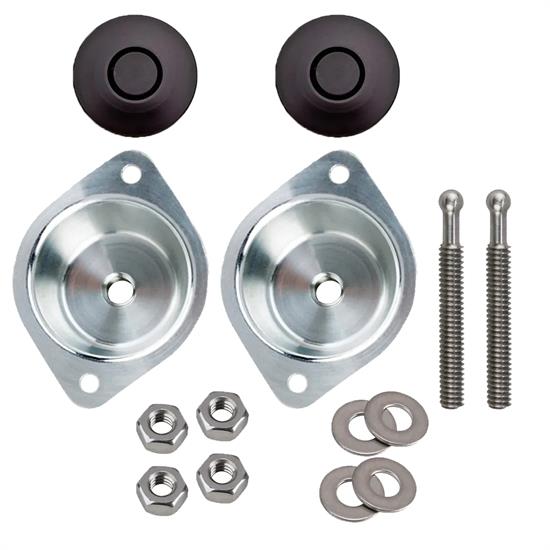

    Kit Features:

    • Diameter of Latch Body: 1.23"
    • Length of Latch Body: 0.57"
    • 1/4"-20 Thread
    • Length of Mounting Stud: 2.13"
    • I.D. of Mounting Cup: 1"
    • Depth of Mounting Cup: 0.75"
    • Black Anodized Aluminum Quik-Latch
    • Includes (2) Quik-Latches and (2) Mounting Cups

    Works Great For:

    • T-Bucket Bed Covers

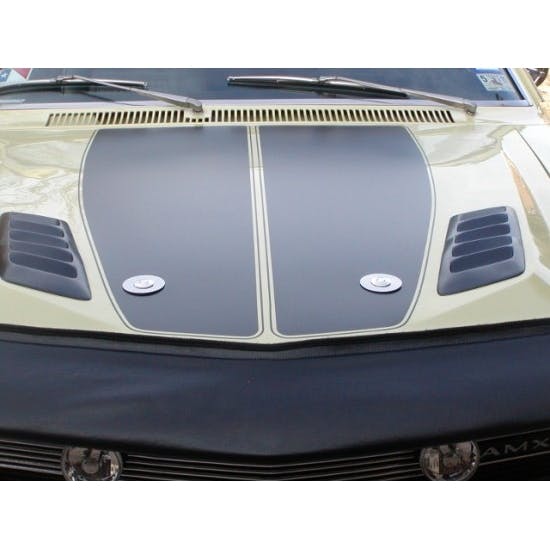

    • Hood Pins
    • Deck Lids

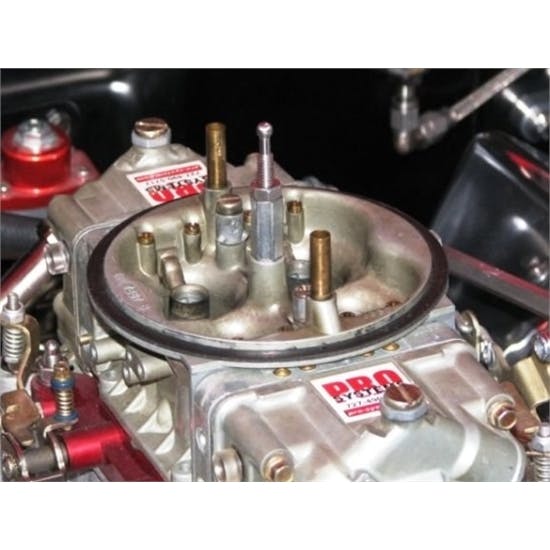

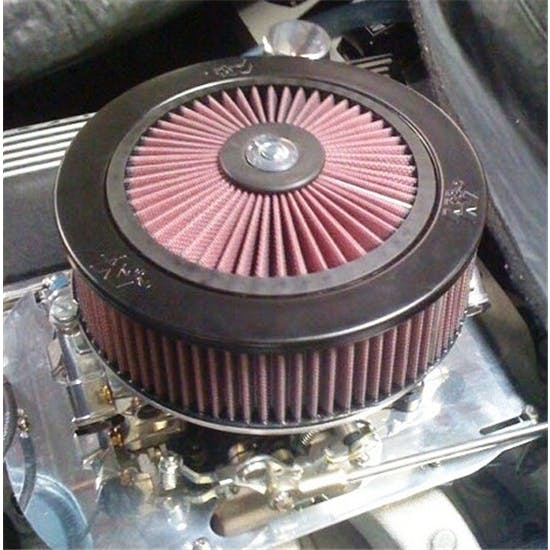

    • Air Cleaner Stud
    • Removable Body Panels

    Quik Latch 9108391 Specifications

    MFG. Part #9108391
    BrandQuik Latch
    Material TypeAluminum
    FinishAnodized Black
    Overall Thickness0.75"
    Overall Length0.57"
    Overall Diameter1.23"
    Hole Diameter0.25"
    Thread Pitch1/4"-20
    Sold in QuantityKit
