Melling 10555ST High Volume SB Chevy Oil Pump, 3/4 Inch, Stage 2
Chevy Small Block V8, High Volume Oil Pump Volume, High Pressure Oil Pump Pressure, Cast Iron
- It uses 3/4" diameter bolt-on or press fit screen
- Features a high volume output - 10% more than stock
- Provides a significant reduction in pressure ripple (pulsing)

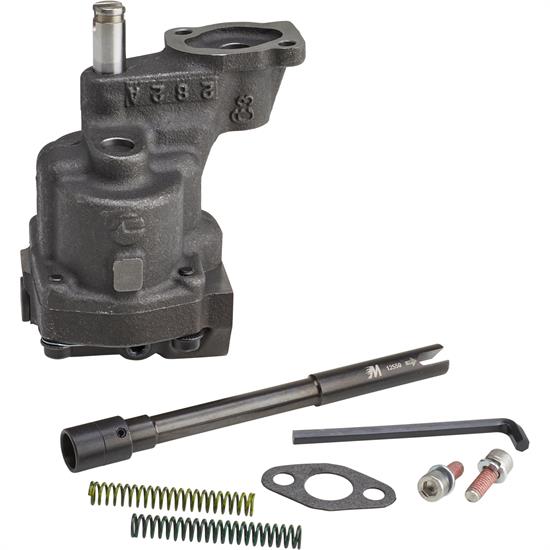

- Kit includes 12500 chrome-moly intermediate shaft with steel guide
- Has an exclusive asymmetrical helical gears with patented outboard shaft supports in cover
These high volume performance oil pumps feature a 25% increase in flow over stock using Melling's exclusive helical asymmetrical pump gears with patented out-board shaft support. The design of the gears provides for a significant reduction in the pressure ripple (pulsing) found in spur gear pumps. The reduction in the pressure ripple improves the wear and performance of the components assembled to the pump. The intermediate shaft and distributor gear wear will be reduced along with improvements in the performance of the distributor, less spark scatter. The patented out-board shaft supports allow the drive and idler shaft to be extended into the cover for additional support. The additional support eliminates dynamic shaft defection at increased RPM levels causing the pump to run more efficiently. Threaded valve plug retains the pressure relief spring thus eliminating the retaining pin. Included with the pump is the 12550 Chrome-Moly intermediate shaft with steel guide along with optional lower and higher pressure relief springs.
- High volume ouput - 10% more than stock
- Exclusive asymmetrical helical gears with patented outboard shaft supports in cover
- Signficant reduction in pressure ripple (pulsing)
- Reduction in torque ripple in pump drive
- Improved distributor operation
- Reduction in spark scatter
- Improved distributor gear and intermediate shaft wear
- Includes 12500 chrome-moly intermediate shaft with steel guide
- Uses 3/4" diameter bolt-on or press fit screen
- For Small Block Chevy engines
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
