UniSteer 8050060 1955-1957 Chevy Steering Kit, Aftermarket

Ask a Question

Steering Shaft
Stainless U-Joints
Column Adapters

$270.00

In Stock

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

1" Outside Diameter, .75" Spline OD, 36 Spline Count

Steering Shaft
Stainless U-Joints
Column Adapters

See more details

Key Specs

MFG. Part #	8050060
Brand	UniSteer
Spline Count	36
Material Type	Steel

See more specs

Need To Know

This Product Will Ship Free

Need help?

Quick and Easy Returns

UniSteer 8050060 Details

This kit is for use with Aftermarkert Tri-5 Rack & Pinion kit being installed on small block cars that have header clearance. With header clearance, this is the easiest way to connect the rack & pinion up to the column.

The kit consists of two U-Joints, one already welded to long section of smooth shaft, all one need do is mock up their steering linkage and cut off the shaft at correct length. Then drill and pin the second U-joint to the shaft with the provided hardware, or weld if you prefer.

Tri-5 Steering Shaft Kit fits 1"DD/3/4/-36 Steering Columns.

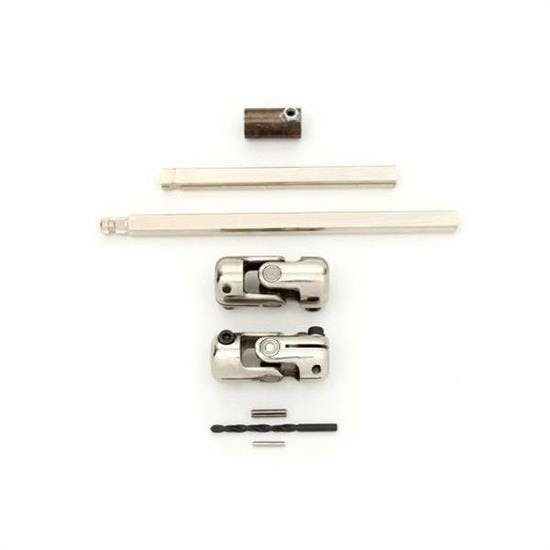

Kit includes

Steering Shaft
Stainless U-Joints
Column Adapters

Charts

Installation Instructions (OAD)

Guides & Documents

Steering Shaft and U-Joint Selection Guide

CA Prop 65

UniSteer 8050060 Specifications

KEY SPECS
MFG. Part #	8050060
Brand	UniSteer
Spline Count	36
Material Type	Steel

GENERAL
Speedway Motors Catalog Part #	805-0060
Outside Diameter	1"
Spline OD	.75"
Finish	Natural
Sold in Quantity	Kit
