Super Bell Axle 1101A 28-34 Ford 4 Inch Drop Tube Axle, 46 In
Super Bell Axle 1101A 28-34 Ford 4 Inch Drop Tube Axle, 46 In
Super Bell Axle Co

|

#7022802

Super Bell Axle 1101A 28-34 Ford 4 Inch Drop Tube Axle, 46 In

  • Jig welded to extremely accurate dimensions
  • Kingpin centers measure a total of 46" apart
  • The tube axle ends are forged from 1018 steel (not cast)
See More

$525.99

/each

On Backorder

This part is Backordered. We currently do not have an estimate when this item will ship.


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford Stock Spindle Style, Tube Straight Axle Style

  • Jig welded to extremely accurate dimensions
  • Kingpin centers measure a total of 46" apart
  • The tube axle ends are forged from 1018 steel (not cast)
  • Will give you a 4" drop in ride height compared to stock
  • They are precision welded to the forged ends with deep penetration
See more details

Key Specs

Spindle StyleFord Stock
Straight Axle StyleTube
Dropped AxleYes
Suspension Height Adjustment4 Inch Lowered
Tube O.D.2"
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Super Bell Axle Co 1101A Details

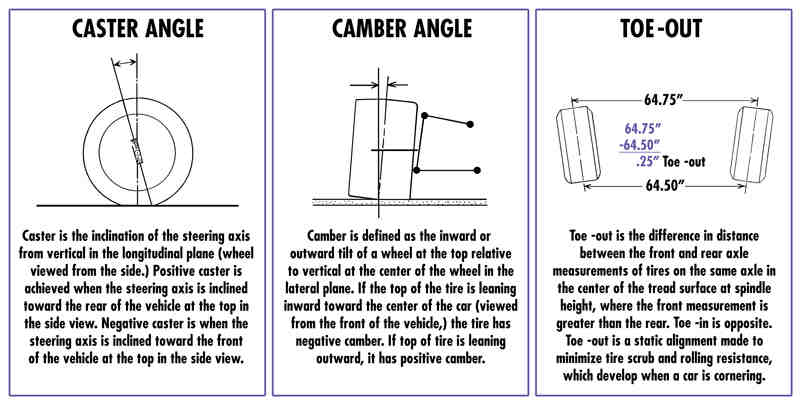

These precision made 4" drop axles accept 1937-48 Ford spindles and have 2-1/4" axle bosses. Tube axles are constructed using 1018 forged steel ends welded to 2" x .250" wall, 1018 seamless tubing and are set up with 1-1/4 degrees positive camber.

  • Tube axle ends are forged 1018 steel (not cast)
  • Tubes are precision welded to the forged ends with deep penetration
  • Jig welded to extremely accurate dimensions
  • These beautiful axles are virtually indestructible

Item Details

46" King Pin Center
34-3/8" Perch Center

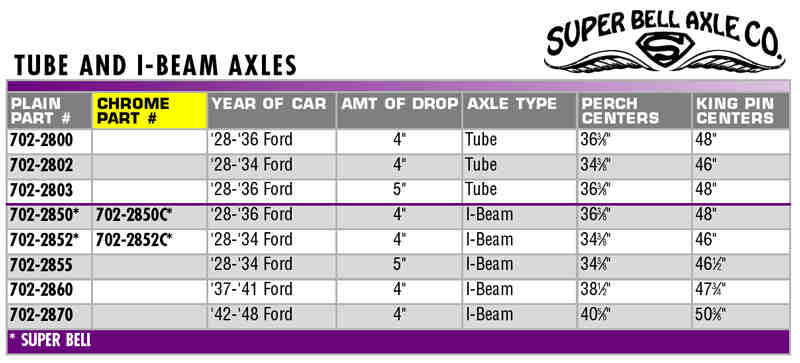

Charts

Super Bell Axle Co 1101A Specifications

KEY SPECS
MFG. Part #1101A
BrandSuper Bell Axle Co
Spindle StyleFord Stock
Straight Axle StyleTube
Dropped AxleYes
Suspension Height Adjustment4 Inch Lowered
Tube O.D.2"
FinishNatural
Material TypeSteel
GENERAL
King Pin Centers46"
DrilledNo
Material Thickness0.250"
Perch Centers34.38"
Sold in QuantityEach

Ratings & Reviews

5

4 Reviews

Overall Assessment

Customers appreciate the high quality and perfect fit of the product, particularly noting its proficient welding and construction. Its narrower than stock axle is valued for its ability to pull tires in more compactly. The product stands out for its excellent appearance and affordable price, making it a superior choice compared to competitor's offerings. There are comments about potential variations in the welding quality but overall, customers would certainly buy this product again and recommend it for its quality look, fit and value.

Write A Review

5

4 reviews

5

4

4

0

3

0

2

0

1

0

Filter by Ratings

I certainly would buy this again.

5.0

5 years ago

Smacksy

charles city, iowa

Verified

Use this axle because it is narrower than stock. Pulls the tires in an inch or two.

Would Recommend

Magnum Axle 2802-2.25

5.0

7 years ago

oneeye

Edgewood New Mexico

Verified

Received the axle today it is a quality looking axle the welds are perfect. This axle is well constructed. Checked the king pin fit, Perfect spec's.

Would Recommend

nicely done

5.0

8 years ago

27 chevy

vancouver island canada

Verified

welding leaves a bit to be desired,maybe late Friday afternoon or the apprentise

Would Recommend

great look at a great prics

5.0

15 years ago

Bobster

Leicester Ma.

Verified

speedway does it again! makes a great looking part at a great price. fits perfect and looks sweet.

Would Recommend

Showing 4 of 4 reviews
