Product Summary

HEI / Male Cap Type, HEI / Male Cap Terminal Style

    Key Specs

    MFG. Part #8456
    Cap TypeHEI / Male
    Advance TypeElectronic
    CARB EO#

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

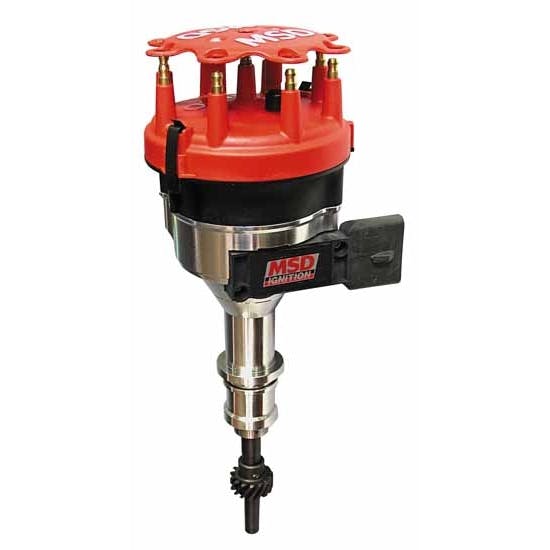

    MSD 8456 Details

    When you start making serious power with your EFI Ford, the stock distributor shaft is one of the weak links of the engine. These Pro-Billet models answer the need for an affordable replacement in a strong and great looking package. Each distributor starts as a solid billet that is secured into a state-of-the art Computer Numerical Control (CNC) machine where it is transformed into a precision housing. Inside each housing there is a sealed ball bearing at the top of the shaft. This design is responsible for accurately guiding the oversized polished steel shaft throughout the entire rpm range of your engine. The shaft is also QPQ-coated for friction reduction and corrosion resistance. The Pro-Billet Distributors use a stock-style trigger pick-up to accept factory connectors. For installation, you simply remove the stock distributor and bolt the Pro-Billet MSD in place! Each model is supplied with a high-quality cap with brass terminals for full spark delivery, heavy-duty rotor and a special gear to work with
    • Increased outer hardened layer thickness (RC 55-60).
    • Micro polished surface for smooth contact.
    • Proprietary formulated ductile iron.
    • Melonite QPQ coated reduces friction and initial wear.
    • Interstitial carbide concentration improves wear resistance and
    • Fits EFI 5.0L 86-93
    • Includes Module
    • No MSD Ignition control required.


    MSD 8456 Specifications

    MFG. Part #8456
    Cap TypeHEI / Male
    Advance TypeElectronic
    CARB EO#
    External Ignition Box RequiredNo
    Cap Terminal StyleHEI / Male
    Trigger StyleMagnetic
    Hall EffectNo
    Sync SignalNo
    Trigger SensorsSingle
    Gear MaterialSteel
    Gear RotationStandard
    Ignition Box RequiredNo
    Mechanical Tach DriveNo
    Slip CollarNo
    Housing MaterialBillet Aluminum
    Housing FinishNatural
    EmissionsCalifornia EO Approved
    Marine UseNo
    Sold in QuantityEach
    NotesDesigned to be used with factory electronic fuel injection systems. TFI module is mounted to distributor.
    GTIN Code085132084562
