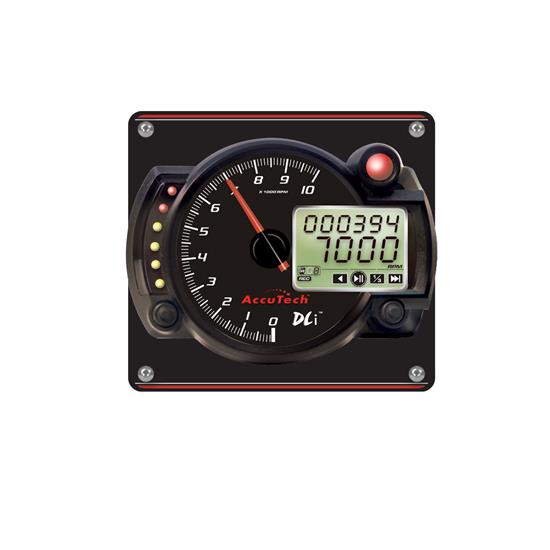

Longacre® 52-44479 Stepper Motor Memory Data Log Tach

This tach is a huge step beyond basic memory tachs that simply record the highest RPM. It records the RPM 10 times/second, all the way around the track, to be played back for you in the pits. See all the highs, the lows, and everything in between for multiple laps, the entire race if you want. You can see what the RPM was at any point on the track - the middle of the corner, the exit, halfway down the back straight, etc. See if you lost traction (RPM spikes slightly) or if the motor was falling off at high RPM (rate of climb slows). And when you just need a traditional Memory Tach it does that too. Stepper Motor design gives you precision accuracy and reliable performance week after week. This Data Logging Tach is like a movie rather than just a snapshot by a traditional Memory Tach.

• Records RPM all around the track - Replay in the pits
• Records & stores up to a full hour, in multiple session
• Easy playback at real time speed, 1/3 speed (to spot rapid changes in RPM), or double speed (to watch a full lap quickly)
• You can even pause and back up to see something over again
• In replay mode the digital timer lets you track when & where the RPM was recorded on the track
• This tach is compact and lightweight
• Numbers are LED back lighted & the pointer is illuminated
• Digital display shows max RPM
• Will work on most non-magneto ignition systems - 4, 6, or 8 cylinder
• Easy to use and recall
• Tach does a "presentation" self test at turn-on - It goes through a full pointer sweep and turns on all LEDs
• Panel dimensions - 5" tall x 5.47" wide



• A 2 stage High RPM warning light helps prevent overreving expensive motors. Set one just above normal max RPM, the second at the redline. Can also be used as a 2 stage shift light.
• 6 LEDs on the left side can be set to indicate pit road speed limit. Set at the RPM you want. The first one comes on 500 RPM lower, the second at 400 RPM lower, etc. - until all 6 are on. This gives you more of a warning than just 1 or 2 set points. This can also be used as a sequential shift light.

• A 2 stage High RPM warning light helps prevent overreving expensive motors. Set one just above normal max RPM, the second at the redline. Can also be used as a 2 stage shift light.
• 6 LEDs on the left side can be set to indicate pit road speed limit. Set at the RPM you want. The first one comes on 500 RPM lower, the second at 400 RPM lower, etc. - until all 6 are on. This gives you more of a warning than just 1 or 2 set points. This can also be used as a sequential shift light.

Here's a different way that gives you flexibility in laying out your gauges. These individual 'modular' panels can be arranged any way you like and are easily connected by just plugging in the wiring included. The panels are lightweight molded ABS with a carbon fiber pattern and really look great. Build your custom panel with any combination of gauges, as many as you need, with or without a tach.

AccuTech® DLi® Tachometer Instructions (PDF)
