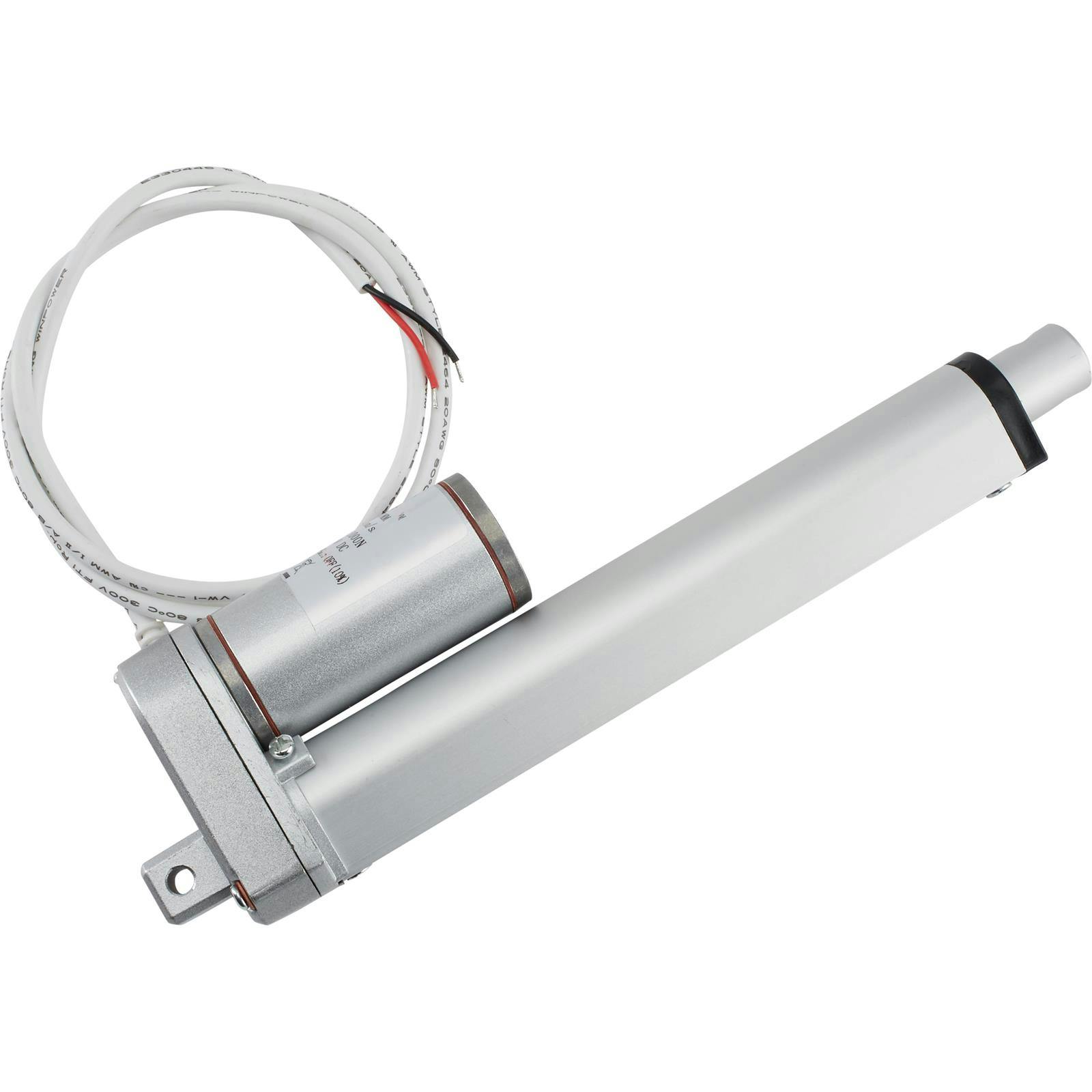

Linear Actuator, 12 Volt Motor
- Engineered to extend a shaft with 110 lbs. of force
- These 12V actuators are a universal design for custom installation and operation in countless applications
- Features built-in limit switches and a ACME dive system
Starting from
$105.99
/each
In Stock
$110.99
Save $5.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Micro Sprint, 5.25" Overall Height, 3.13" Base Length
- Engineered to extend a shaft with 110 lbs. of force
- These 12V actuators are a universal design for custom installation and operation in countless applications
- Features built-in limit switches and a ACME dive system
- Has a IP 63 dust and water resistant rating
- Measures 10-1/4" x 1-1/2" x 3" and weighs approximately 2-3 lbs.
Key Specs
| MFG. Part # | Select Length |
| Compressed Length | Select Length |
| Stroke | Select Length |
| Static Load | 550 lbs. |
| Amperage | 10 amps |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Linear actuators are gear-driven drive motors that extend a shaft with 110 lbs. of force. Our 12V actuators are a universal design for custom installation and operation in countless applications. With built-in limit switches, ACME dive system, and a IP 63 dust and water resistant rating, they are ideal for automotive applications (trunk, hood, doors, etc.) as well as electric wing sliders for Mini Sprints.
Available in 4", 6" or 8" strokes.
- Load Capacity - 110 pounds
- Static Load - 550 pounds
- Speed at Max Load - 0.50 in/sec
- Reccomended Fuse - 10 Amp
- IP Grade - IP 63-total dust protection, water resistant
- Pin Holes: 1/4"
- Retracted Length: 246 mm (9.69")
- Shaft Diameter: 20.1 mm (.792")
- Size: 10-1/4" x 1-1/2" x 3"
- Weighs approx. 2-3 lbs
Charts
Wiring Schematic (GIF)
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Length to see |
| Brand | Speedway Motors |
| Compressed Length | Select Length to see |
| Stroke | Select Length to see |
| Static Load | 550 lbs. |
| Amperage | 10 amps |
| Voltage | 12 volts |
| GENERAL | |
| Overall Height | 5.25" |
| Base Length | 3.13" |
| Base Width | 1.63" |
| Base Diameter | .78" |
| Hole Diameter | .25" |
| Center to Center | 9.70" |
| Extended Length | Select Length to see |
| Load Capacity | 110 lbs. |
| Hardware Included | No |
| Sold in Quantity | Each |
Ratings & Reviews
5
8 Reviews
Customers are highly satisfied with the product's multipurpose uses, from lifting vehicle trunks to adjusting mini sprint wings. It's highlighted for its strength, lightweight, and durability, having performed well even after three seasons of intense racing. Users find it easy to wire, and note its superior affordability compared to similar products from other suppliers. Some wished for longer cables, but even after adding splices, no issues have been reported, underlying its reliable functionality. It has been deemed a great value purchase by customers.
Ratings & Reviews
5
8 Reviews
Customers are highly satisfied with the product's multipurpose uses, from lifting vehicle trunks to adjusting mini sprint wings. It's highlighted for its strength, lightweight, and durability, having performed well even after three seasons of intense racing. Users find it easy to wire, and note its superior affordability compared to similar products from other suppliers. Some wished for longer cables, but even after adding splices, no issues have been reported, underlying its reliable functionality. It has been deemed a great value purchase by customers.
5
8 reviews
5
8
4
0
3
0
2
0
1
0
Filter by Ratings
Replaced Failing unit
5.0
6 months ago
Rich
HB Ca.
Verified
Bolted right on place of the existing. Im not sure what brand the original was, but this one lifted quicker and smoother. Fiberglass deck lid with full interior probably weighs 70lbs
Just bought another cool for many uses
5.0
4 years ago
Casper
Ukiah ca
Verified
Im using one to lift the trunk lid on a 55 buick these ate strong lil units i am buying more for a tilt front end.
Would Recommend
Extra Harness Included can be Ignored
5.0
7 years ago
mick s
Winthrop Harbor Il
Verified
The picture doesn't show the wiring very well, but this unit will just take the 2 wires from your switch. Don't get concerned about the other 3 wire wiring harness attached unless your are using the controller box.The PDF on the part pages shows the correct wiring without the extra harness. It's nice to have 3 different lengths to order, but why would you order a shorter throw? And yes, it's also cheaper than other suppliers.
Would Recommend
Actuator
5.0
9 years ago
Joe
Missouri
Verified
Works great
Would Recommend
Perfect for application
5.0
10 years ago
Big Al
Tampa FL
Verified
Used for mini-sprint wing adjuster-- easy to wire.
Would Recommend
Great product for the price
5.0
10 years ago
Racer20
Ceresco, NE
Verified
Works great for a wing adjuster on mini sprint. Plenty of power and light weight.
Would Recommend
Good product, very durable
5.0
12 years ago
MiniSprintMafia
Wonder Lake, IL, USA
This unit is used for our wing slider on our XXX minisprint. Have had no issues with it in over 3 seasons of hard racing. Only complaint, if you want to call it that, is that I wish it had a little longer cable. We have to splice in a few extra inches of cord to make it reach where we need it to go. I hate making splices in any electrical system on a race car. Splices typically mean problems somewhere down the road. Fortunately, we have had no issues what so ever though.
Would Recommend
very happy with my unit
5.0
15 years ago
n/a
Chandler, Az
Verified
It is being used to open my trunk on my 1929 roadster.
Would Recommend
Showing 8 of 8 reviews
