Product Summary

Steel, Cadmium Plated

  • Dial in your springs with this all-in-one weight jack adjustment kit
  • Steel construction plates and bolt
  • 1" coarse thread
  • Cad plated for corrosion resistance
  • IMCA Approved

Comes as a Kit

Key Specs

MFG. Part #9109036
BrandSpeedway Motors

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Speedway Motors 9109036 Details

Dial in your springs with this all-in-one weight jack plate adjustment kit.

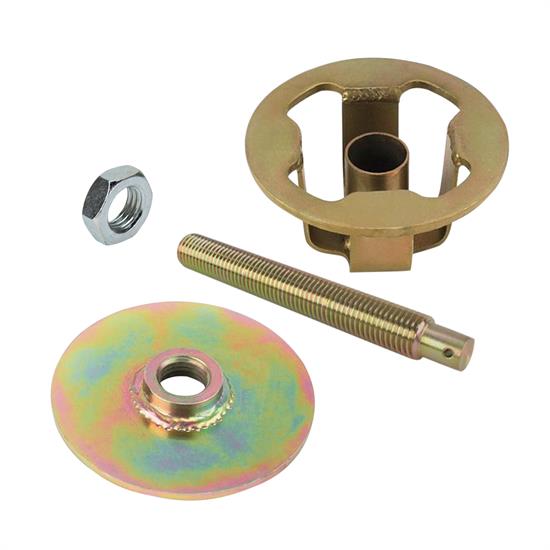

Kit Includes:

  • (1) Weight Jack Weld-In Plate, 1 Inch Threads
  • (1) Speedway Lightweight Weight Jack Plate
  • (1) Replacement Weight Jack Bolt, Coarse Thread, 1 Inch Diameter
  • (1) 1 Inch Weight Jack Bolt Hex Jam Nut, Steel, Zinc Plated


Weight Jack Weld-In Plate

  • Weld to the top of the stock front spring buckets
  • Allow you to use weight jack bolts
  • 1" coarse thread


Replacement Weight Jack Bolt

  • Coarse thread
  • Cad plated for corrosion resistance
  • Includes a hole at the bottom for a cotter pin
  • 1" diameter x 8" long
  • IMCA Approved


Lightweight Weight Jack Plate

  • 5" diameter
  • 2" tall
  • Lightweight steel construction
  • IMCA Approved


Hex Jam Nut

  • Steel
  • 1" Diameter
  • 8 RH coarse thread
  • .547 thick
  • Zinc plating, retards the corrosion rate in a normal atmosphere
  • 1-1/2" wrench size
  • Specification: ANSI B18.2.2
  • IMCA Approved


Speedway Motors 9109036 Specifications

MFG. Part #9109036
BrandSpeedway Motors
Material TypeSteel
FinishCadmium Plated
Sold in QuantityKit
