Left Front Sprint Car Caliper Crash Kit, Aluminum Rotor

Brake Caliper

The Dyna Pro Single (DPS) billet caliper is the newest generation of calipers available as an upgrade or replacement for applications previously using the Dynalite Single (DLS) series. DPS calipers combine superior strength with performance enhancements to make these the best "Dyna" series calipers ever.

The DPS is loaded with exclusive Wilwood performance enhancements. The calipers feature Quick-E-Clip pad retainers that support a 6812 type brake pad from the top. In addition to past pad service without caliper removal, the feature provides substantially stronger retention over the single Quick-Clip pin and 7012 type pads used in the previous DLS models.

• Quick-E-Clip pad retainers supports brake pad from top
• Heavy wall stainless steel pistons
• Stainless steel SRS bridge plates eliminate pad rattle and dampen vibration
• Internal fluid passages
• Four corner bleed screws allow mounting in any front, rear, left, or right side position

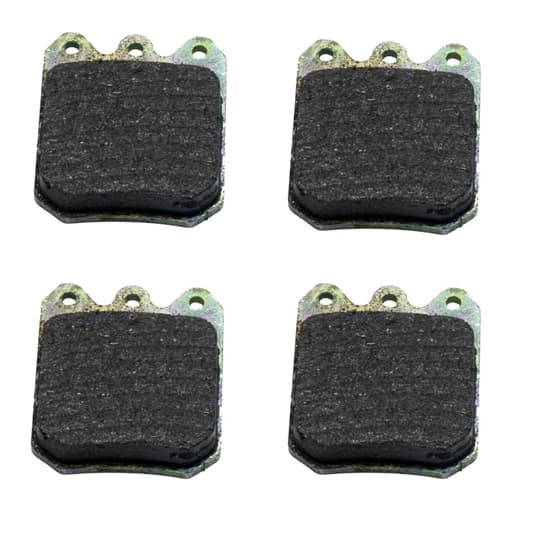

Brake Pads

Specifically designed compound for use with aluminum rotors. Offers low abrasion on both un-anodized and anodized surfaces. Medium friction compound with good cold response.

• Light Duty for Sprint, Midget, etc… Dirt or Pavement
• Moderate friction on Aluminum Rotors without damage
• Moderte wear rate
• Moderate friction on Aluminum Rotors without damage
• Sold in set of 4 pads

Tech Tip: Only use full metallic pads on coated rotors.

Learn how to properly Bed-In your brake pads by reading our tech article.Bedding-In Brake Pad Procedure.

Brake Line

Braided stainless covering over a Teflon inner liner. These are perfect for brake lines, clutch lines and gauge lines. These have straight AN3 fittings on both ends.

Kit Includes

(1) Wilwood 120-10188 Dynapro Single Lightweight Caliper, 3.25 Inch Mount

(1) Wilwood 150-9766K Dynapro Brake Pads for Aluminum Rotor

(1) Black 45 Degree -3 AN Flare to 1/8 Inch NPT Pipe Adapter Fitting

(1) 25 Inch Braided S.S. Brake Line - Straight AN3

835-12010188 Specs (JPG)

Caliper

• Piston Count:  2
• Piston Bore:  1.75"
• Area (in²):  2.40
• Rotor Dimensions:
  • Rotor Width:  0.38"
  • Minimum Rotor Width:  0.25"
  • Rotor Diameter:  6"
• Pad Dimensions:
  • Pad Area (in²):  3
  • Pad Volume (in³):  1.1
• Mount Type:  Lug
• Mount Side:  Universal
• Mount Hole Size:  0.39"
• Mount Height:  1.92"

Pads

• Width:  1.98"
• Height:  2.32"
• Thickness:  .49"
• Area(in²):  3
• Volume(in³):  1.1
• Beded:  No
• Peak Temperture Rating:  700° F
