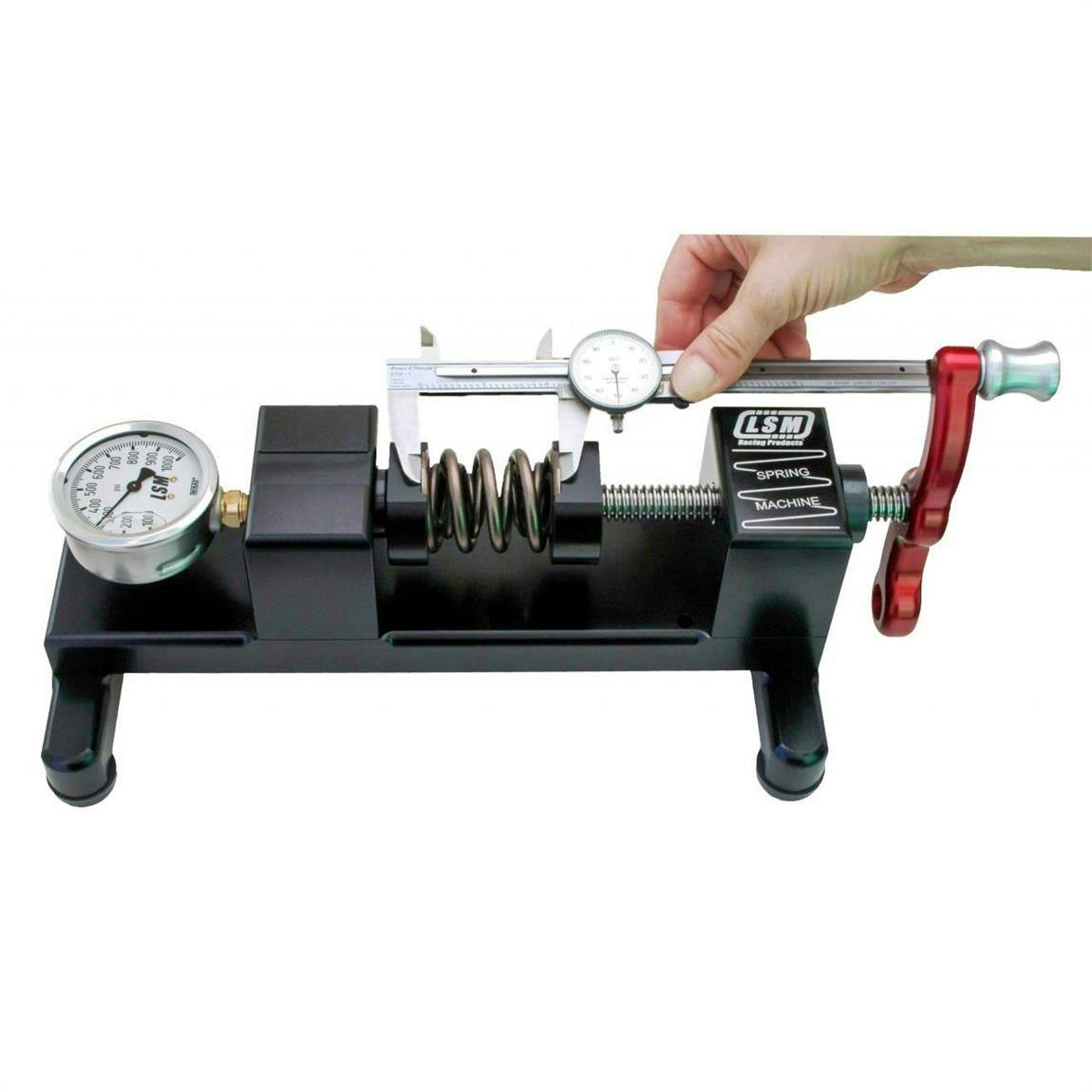

LSM Racing Products SM-1000 Bench Top Valve Spring Tester, 1000lb

Whether you are testing valve springs at the shop or at the track, LSM Racing Products has you covered. This bench top valve spring compressor has a compact design that lets you take it almost anywhere. Just bring the spring to installed height, lock down the precision stop, and check a box of springs quickly, easily, and with precision accuracy. It features a 1000 lb. gauge with 10 lb. increments that ensures accuracy. The rugged design can handle up to a 1.750" spring diameter.

• 0-1000 lb/in gauge
• Measures with handle 19-1/2" long (open), 17" long (closed) x 6-1/2" wide x 5-1/4" high
• Sold each

Use it in the shop and take it in the trailer. The LSM Spring Machine™ is a fast and easy-to-use precision bench top valve spring tester. Just bring the spring to installed height, lock down the precision stop, and check a box of springs quickly, easily, and with precision accuracy. Check open or seat pressure safely, with control, and without effort.

Spring Specifications: Free length: 3.250", up to 1.750" diameter, compresses to .750"

The innovative horizontal design and footprint ensures stability on the bench top.

It is rugged enough for everyday use in the shop, yet designed for portability to take on the road.

The middle third of the gauge is the best range for testing and choosing your tester gauge option. Two pound increments on the 160 lb, and 10 lb increments on the rest. Extra Load Cell Modules can be purchased to have additional testing options.

Use the collar stop next to the handle to set the installed height stop using a precision caliper. The Speed Handle™ can be removed and used with our on head valve spring compressors too!
