LS Swap Steel Race Oil Pan, 7 Quart, Black, 90 Degree Fitting
Universal Fit, 7 quarts Liquid Measurement, Steel, Painted
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

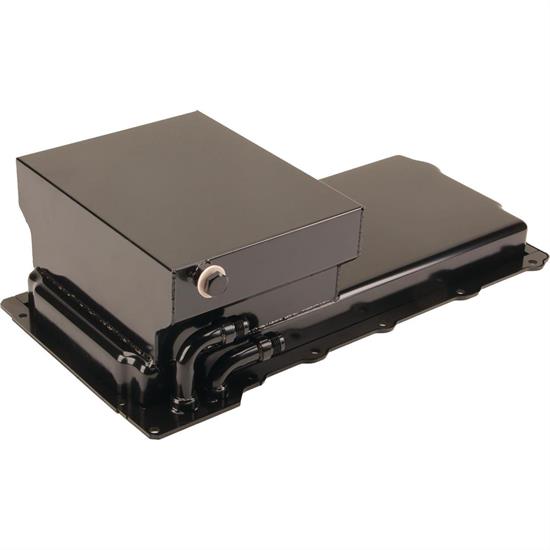

This GM LS engine oil pan features a black steel finish. This oil pan has a 7 quart capacity and has a 90 degree fitting. This pan is the most similar to OEM F body oil pans in depth and length of sump, but with more clearance at the leading edge of the top of the sump. It fits most muscle cars of the 60s and 70s that came factory with rear sump engines.
- GM LS
- Black finish
- 7 Quart
- 90 degree fitting
- Depth: 6" at sump, 1 5/8" front half of pan
- Length: sump 8.375" overall 21"
- Width: 10 1/4" at sump kickouts
- Must use in conjunction with Oil Filter Relocation Kit # 289-81019
The fitting to the front position is the oil out to the cooler/filter and the fitting to the rear position is the oil return from the cooler/filter back to the engine.
