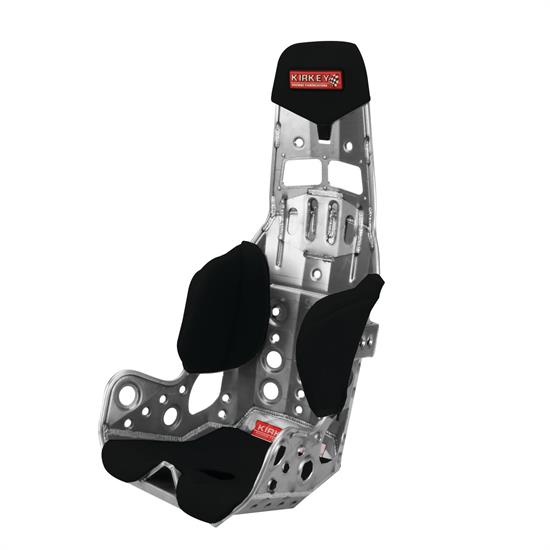

Kirkey 58 Series 20 Degree Lightweight Seat w/ Upholstery, 17 Inch

Kirkey's lightweight double rib support 20° layback seat is designed for the racer who wants to save weight but demands the ultimate in comfort and safety.

• Strategically placed flared openings save weight and add strength
• .080" thick 5052 grade aluminum is TIG welded outside and MIG welded on inside for added strength
• Contoured sides support hips and thighs along complete side of seat
• Seat bottom shaped at rear to support tailbone and lower back
• Center leg support holds inner thighs under heavy cornering forces
• Aluminum extrusion around perimeter of seat adds strenght and safety
• Edge of seat is stepped and extrusion is offset to outside so inside of seat is completely smooth
• Seat back is double crossbroke for added strength and safety
• Front of seat is raised for thigh support
• Seat bottom has been extended for extra leg and thigh support
• Rib supports are reinforced with welded, lightweight flared band
• Progressive rib bead added for extra strength
• Double shoulder belt and sub belt openings standard
• Machined plate added to shoulder belt openings for increased strength
• Full covers or lightweight four piece modulart design available
• Extra thick, high density foam on rib supports for added comfort and safety
• Four piece upholstery available in black

Item Details

910-70137 Instructions(PDF)

Kirkey 58 Series Dimensions (GIF)
