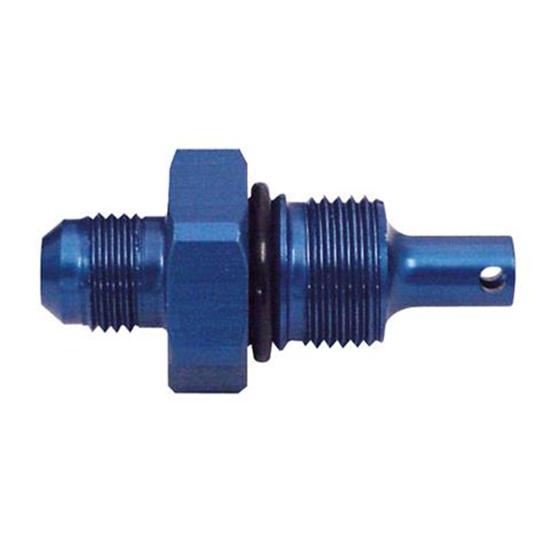

KRC 25306000 -6 AN Aluminum 1.70 GPM Power Steering Control Valve

#46621306

KRC 25306000 -6 AN Aluminum 1.70 GPM Power Steering Control Valve

-6 male
1.70 GPM
ID: 6

Type:

1.70 GPM

1.84 GPM 2.11 GPM (Base Flow)2.37 GPM 2.64 GPM 2.90 GPM 3.17 GPM (High Assist -Less Feel)

$34.89

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Aluminum

-6 male
1.70 GPM
ID: 6
Sold as Each

See more details

Key Specs

MFG. Part #	25306000
Brand	KRC Power Steering
Fitting Attachment 1	Male AN
Material Type	Aluminum
Finish	Natural

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Power Steering Control Valves Installation Instructions (46621306)

Installation Tips

Larger flow valves are required when using steering quickners or 3.4 inch per revolution or faster rack-and-pinions. If you run on smaller tracks, a larger flow valve can give you more assist through the tight corners. Cars with wide tires and a lot of positive caster may also require more fluid flow. If you drive into the corner and feel as though the steering has a slight catch to it, commonly called "pump catch", a larger flow valve may be required.
Smaller flow valves can be used on tracks with long straightaways or long sweeping corners. By decreasing the flow you can gain more feel and stability in the steering system. Also those running Mustang style racks, you may require a smaller flow valve. The most commonly used is ID:6.
When selecting a flow valve for a race track only car, the driver should use the valve the feels the best at race speeds. On street driven cars, you must consider finding a happy medium between the ease of parking and highway stability.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

KRC Power Steering 25306000 Details

Dial in steering feel with KRC’s changeable Flow Control Valve for -6 AN outlets. This aluminum ID:6 valve flows 1.70 GPM on a 9.6cc Pro Series pump—two steps below the factory “standard” valve—delivering less flow for more steering feel and stability while trimming assist and parasitic HP. It drops into KRC pumps like a jet in a carb, letting you fine-tune driver effort to track, setup, or preference.

All KRC power steering pumps provide the racer the ability to fine tune the feel and assist in the power steering system. Interchanging the -6 outlet fitting can alter the steering input the drive has. The more flow your steering system receives the easier it will be to turn the wheels, but will decrease feel. Having less flow will put feel and stability back in the steering system, but decrease assist.

KRC Flow Valve fittings allow for flow from 1.18 GPM to 2.92 GPM. The 1.18 GPM valve has the least flow, which provides the lowest assist with the highest feel to the steering. The 2.92 GPM valve has the highest flow, which provides the highest assist with the lowest feel to the steering.

-6 male
1.70 GPM
ID: 6
Sold as Each

Charts

How To Choose the Right Flow Valve (PDF)

Flow Valve Installation Guide (PDF)

Specs

Material: Aluminum
Port: -6 AN male outlet
Valve ID: 6 (two steps below standard; less flow / more feel)
Flow rate: 1.70 GPM on KRC 9.6cc Pro Series pump
Intended use: Fine-tune assist vs. feel in power steering systems
Compatibility: KRC pumps using changeable flow control fittings
Numbers 4–7 = more feel / less flow (4 = least flow, most feel; 7 = one step below standard)
Letters B–E = more assist / more flow (E = maximum flow)
If you feel a “tight spot” at speed (pump catch), step up to a larger ID (e.g., from 6 to 7 or C)
Wide tires, high caster, tight/short tracks, or quickeners often prefer larger IDs for added assist

Guides & Documents

Power Steering Control Valves Installation Instructions (46621306)

Power Steering Control Valves Technical Information (46621306)

Warranty Information

Speedway Motors cannot facilitate the return of defective KRC Power Steering products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact KRC Power Steering at 1-770-422

KRC Power Steering 25306000 Specifications

KEY SPECS
MFG. Part #	25306000
Brand	KRC Power Steering
Fitting Attachment 1	Male AN
Material Type	Aluminum
Finish	Natural

GENERAL
GTIN Code	819495013392
Sold in Quantity	Each
