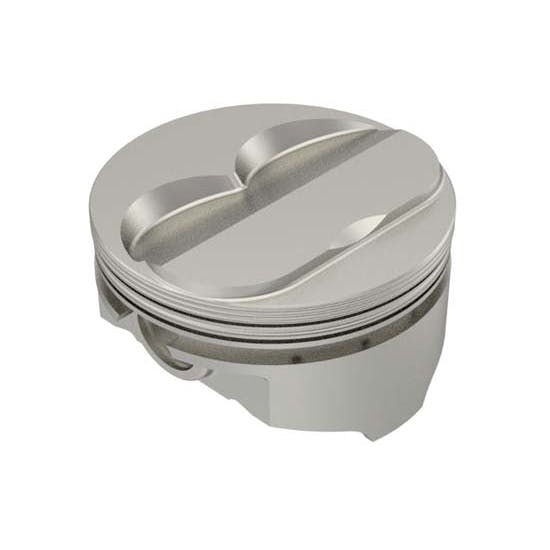

Keith Black KB123.030 .150 Dome 6.0 Rod SBC 383 Hypereutectic Pistons
Keith Black KB123.030 .150 Dome 6.0 Rod SBC 383 Hypereutectic Pistons
Keith Black

|

#474123-030

Keith Black KB123.030 .150 Dome 6.0 Rod SBC 383 Hypereutectic Pistons

  • The reflective alloy allows 2% power increase
  • Features fully machined crowns and valve reliefs
  • Has drilled oil drain backs and full floating wrist pins
See More

Oversize:

.030 Inch

$469.09

/set

In Stock

Order soon, only 3 left in stock!


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Dome Piston Style, 4.030" Piston Diameter

  • The reflective alloy allows 2% power increase
  • Features fully machined crowns and valve reliefs
  • Has drilled oil drain backs and full floating wrist pins
  • Specially quench dome technology minimizes deterioration
  • Made entirely from 390 Hypereutectic alloy that weighs only 450 grams
See more details

Key Specs

MFG. Part #KB123.030
Piston StyleDome
Piston MaterialHypereutectic Aluminum
Wrist Pin IncludedYes
Wrist Pin StylePress-Fit or Floating
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Keith Black KB123.030 Details

Keith Black Hypereutectic pistons are favored for their improved power and reduced scuffing. The unique design & manufacturing processes combine to produce a rigid piston, which will rock less in the bore improving ring seal. These T-5 heat treated pistons also offer reduced thermal expansion, which allows you to run tighter clearances and allows the piston rings to seal better and minimize blow-by.

  • 390 Hypereutectic alloy
  • Fully machined crowns and valve reliefs
  • Drilled oil drain backs
  • Full floating wrist pins
  • Triple wound spiral locks
  • Reflective alloy allows 2% power increase
  • Quench dome technology minimizes deterioration
  • Zero deck quench designs
  • Lightweight wrist pins

For S/B Chevy 383 c.i. (4.000" bore x 3.75" stroke).

Item Details

C/R 58=13.4, 64cc=12.3, 76cc=10.7
Piston/Pin Weight: 450 g
Rod Length: 6.0", Ring Style: C

Charts

Specs

  • Comp Height 5.7" Rod -  1.433
  • Comp Height 6.0" Rod -  1.13
  • Pin Diameter -  0.9272

Keith Black KB123.030 Specifications

KEY SPECS
MFG. Part #KB123.030
BrandKeith Black
Piston StyleDome
Piston MaterialHypereutectic Aluminum
Wrist Pin IncludedYes
Wrist Pin StylePress-Fit or Floating
GENERAL
Piston Diameter4.030"
Dome Height.150"
Stroke3.750"
Connecting Rod Length6.000"
Piston Weight450 grams
Piston Ring StyleC
Wrist Pin Diameter0.9272"
Wrist Pin Weight145 grams
Top Ring Thickness1/16"
Second Ring Thickness1/16"
Oil Ring Thickness3/16"
Compression 58cc =13.4 : 1
GTIN Code800745044341
Sold in QuantitySet

Questions & Answers

1 Question • 1 Answer

Can you tell me the rings I need for these? My pistons are .40 over. Also what rod and main bearings to use with your 383 cast crank?

by Wesley

• 8 years ago

1 answer

View Answer
