#46852408
Jiffy-Tite 52408 Quick Connect Fluid Fittings, -8 AN Male Plug
- All 5000 series fittings are available in straight, 45 ° and 90°
- All fittings are available in valved and non-valved to allow for a 100% flow through application
- All series come standard with Fluorocarbon (FKM) seals. Buna Nitrile (NBR) seals and Ethylene Propylene (EPDM) Seals are other options
$62.77
/each
In Stock
Order soon, only 2 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Product Summary
Universal Fit, Quick-disconnect Fitting Style, Anodized
- All 5000 series fittings are available in straight, 45 ° and 90°
- All fittings are available in valved and non-valved to allow for a 100% flow through application
- All series come standard with Fluorocarbon (FKM) seals. Buna Nitrile (NBR) seals and Ethylene Propylene (EPDM) Seals are other options
- All sockets and plugs within the same series are interchangeable
Key Specs
| MFG. Part # | 52408 |
| Fitting End A | -8 AN Male |
| Fitting End B | 5000 Series Male (Plug) Quick-disconnect |
| Angle | Straight |
| Material Type | 6061-T6 Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyJiffy-Tite 52408 Details
Jiffy-Tite 52408 Details
Tested and proven to have a 100% leak proof seal at 200 psi and 350° F. Made of aluminum, these Jiffy-Tite valved disconnects are compact, durable, and corrosion resistant. High-flow valve technology in the plug and socket assembly automatically interrupts the flow of fluid when disconnected by hand. Not intended for brake systems.
FLUOROCARBON (FKM) SEAL Oil, Transmission Fluid, Water, E85 (Ethanol Fuel Blend), Gasoline, diesel.
ETHYLENE PROPYLENE (EPDM) SEAL Nitromethane Ethanol (Ethyl Alcohol), Brake Fluid, Glycol, Methanol (Methyl Alcohol)
NITRILE (NBR) SEAL Alcohol (Fuel), Oxygenated Fuel.
Select a socket and a plug to make a complete coupler. AN sizes are 37° for mating with existing hose ends or bungs.
See Application tab for intended use on each disconnect/plug.
(JPG)
Charts

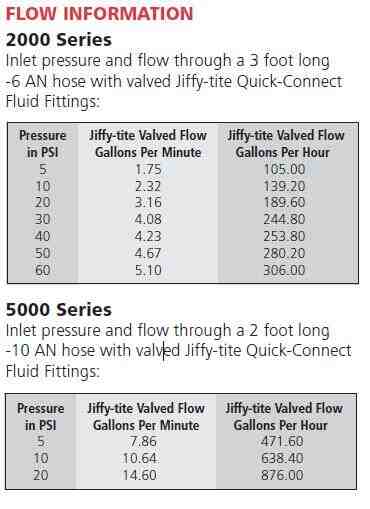

Jiffy-Tite Flow Specs (JPG)
Guides & Documents
Jiffy-Tite 52408 Specifications
Jiffy-Tite 52408 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 52408 |
| Brand | Jiffy-Tite |
| Fitting End A | -8 AN Male |
| Fitting End B | 5000 Series Male (Plug) Quick-disconnect |
| Angle | Straight |
| Material Type | 6061-T6 Aluminum |
| GENERAL | |
| Fitting Style | Quick-disconnect |
| Gauge Port | No |
| Finish | Anodized |
| Color | Black |
| Sold in Quantity | Each |
| Swivel | No |
| Valved | Yes |
| AN Size | -8 AN |
| Adjustable | No |
| Thread Pitch | 3/4" - 16 |
| Reusable | Yes |
