Universal Fit, Quick-disconnect Fitting Style, Anodized
| MFG. Part # | 51508P |
| Fitting End A | -8 AN Hose barb |
| Fitting End B | 5000 Series Female (Socket) Quick-disconnect |
| Angle | Straight |
| Material Type | 6061-T6 Aluminum |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyTested and proven to have a 100% leak proof seal at 200 psi and 350° F. Made of aluminum, these Jiffy-Tite valved disconnects are compact, durable, and corrosion resistant. High-flow valve technology in the plug and socket assembly automatically interrupts the flow of fluid when disconnected by hand. Not intended for brake systems.
FLUOROCARBON (FKM) SEAL Oil, Transmission Fluid, Water, E85 (Ethanol Fuel Blend), Gasoline, diesel.
ETHYLENE PROPYLENE (EPDM) SEAL Nitromethane Ethanol (Ethyl Alcohol), Brake Fluid, Glycol, Methanol (Methyl Alcohol)
NITRILE (NBR) SEAL Alcohol (Fuel), Oxygenated Fuel.
Select a socket and a plug to make a complete coupler. AN sizes are 37° for mating with existing hose ends or bungs.
See Application tab for intended use on each disconnect/plug.
Application
SOCKET FOR ALCOHOL
PLUG FOR GAS, COOLANT, OIL
PLUG FOR ALCOHOL
CARB KITS
Charts

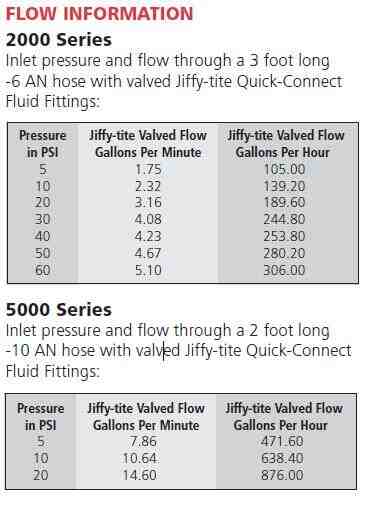

Jiffy-Tite Flow Specs (JPG)
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | 51508P |
| Brand | Jiffy-Tite |
| Fitting End A | -8 AN Hose barb |
| Fitting End B | 5000 Series Female (Socket) Quick-disconnect |
| Angle | Straight |
| Material Type | 6061-T6 Aluminum |
| GENERAL | |
| Fitting Style | Quick-disconnect |
| Gauge Port | Yes |
| Finish | Anodized |
| Color | Black |
| Sold in Quantity | Each |
| Swivel | No |
| Valved | Yes |
| AN Size | -8 AN |
| Adjustable | No |
| Reusable | Yes |
