#46822404

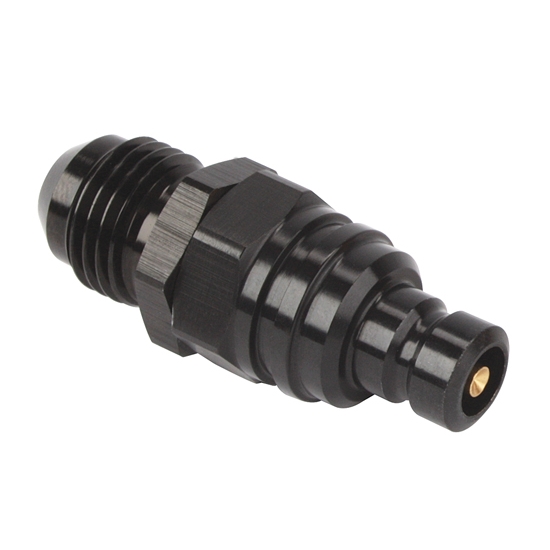

Jiffy-Tite 22404 Quick Connect Fluid Fittings, -4 AN Male Plug
- All 2000 series fittings are available in straight, 45 ° and 90°
- All fittings are available in valved and non-valved to allow for a 100% flow through application
- All series come standard with Fluorocarbon (FKM) seals. Buna Nitrile (NBR) seals and Ethylene Propylene (EPDM) Seals are other options
$30.81
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Product Summary
Universal Fit, -4 AN Male Fitting End A, Straight Angle
- All 2000 series fittings are available in straight, 45 ° and 90°
- All fittings are available in valved and non-valved to allow for a 100% flow through application
- All series come standard with Fluorocarbon (FKM) seals. Buna Nitrile (NBR) seals and Ethylene Propylene (EPDM) Seals are other options
- All sockets and plugs within the same series are interchangeable
Key Specs
| MFG. Part # | 22404 |
| Fitting End A | -4 AN Male |
| Fitting End B | 2000 Series Male (Plug) Quick-disconnect |
| Angle | Straight |
| Material Type | 6061-T6 Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyJiffy-Tite 22404 Details
Jiffy-Tite 22404 Details
Tested and proven to have a 100% leak proof seal at 200 psi and 350° F. Made of aluminum, these Jiffy-Tite valved disconnects are compact, durable, and corrosion resistant. High-flow valve technology in the plug and socket assembly automatically interrupts the flow of fluid when disconnected by hand. Not intended for brake systems.
Select a socket and a plug to make a complete coupler. AN sizes are 37° for mating with existing hose ends or bungs.
See Application tab for intended use on each disconnect/plug.
Application
- 468-21802
- 468-21404
- 468-21306
- 468-21406
- 468-21506P
- 468-21606
- 468-51408
- 468-51508
- 468-51410
- 468-51412
- 468-51312
SOCKET FOR ALCOHOL
- 468-21306B
- 468-21406B
- 468-21506BP
- 468-21606B
PLUG FOR GAS, COOLANT, OIL
- 468-22802
- 468-22404
- 468-22406
- 468-52410
- 468-52412
- 468-52312
- 468-52812
- 468-52812E
PLUG FOR ALCOHOL
- 468-22406B
- 468-22506B
- 468-22606B
CARB KITS
- 468-300C1
- 468-300C1B
Charts
Jiffy-Tite Flow Specs (JPG)
Guides & Documents
Jiffy-Tite 22404 Specifications
Jiffy-Tite 22404 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 22404 |
| Brand | Jiffy-Tite |
| Fitting End A | -4 AN Male |
| Fitting End B | 2000 Series Male (Plug) Quick-disconnect |
| Angle | Straight |
| Material Type | 6061-T6 Aluminum |
| GENERAL | |
| Gauge Port | No |
| Finish | Anodized |
| Color | Black |
| Sold in Quantity | Each |
| Swivel | No |
| Valved | Yes |
| AN Size | -4 AN |
| Adjustable | No |
| Thread Pitch | 7/16" - 20 |
| Reusable | Yes |
