Jiffy-Tite 21506BP Quik Connect Fluid Fitting-6AN PushLock Socket

#46821506BP

Jiffy-Tite 21506BP Quik Connect Fluid Fitting-6AN PushLock Socket

Name: Jiffy-Tite 21506BP Quik Connect Fluid Fitting-6AN PushLock Socket
Brand: Jiffy-Tite
SKU: 46821506BP
Price: 34.89 USD
Availability: LimitedAvailability
Rating: 5 (1 reviews)

1 Review

Ask a Question

All 2000 series fittings are available in straight, 45 ° and 90°
All fittings are available in valved and non-valved to allow for a 100% flow through application
All series come standard with Fluorocarbon (FKM) seals. Buna Nitrile (NBR) seals and Ethylene Propylene (EPDM) Seals are other options

$34.89

/each

In Stock

Order soon, only 2 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Product Summary

Universal Fit, Quick-disconnect Fitting Style, Anodized

All 2000 series fittings are available in straight, 45 ° and 90°
All fittings are available in valved and non-valved to allow for a 100% flow through application
All series come standard with Fluorocarbon (FKM) seals. Buna Nitrile (NBR) seals and Ethylene Propylene (EPDM) Seals are other options
All sockets and plugs within the same series are interchangeable

See more details

Key Specs

MFG. Part #	21506BP
Fitting End A	-6 AN Hose barb
Fitting End B	2000 Series Female (Socket) Quick-disconnect
Angle	Straight
Material Type	6061-T6 Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Jiffy-Tite 21506BP Details

Tested and proven to have a 100% leak proof seal at 200 psi and 350° F. Made of aluminum, these Jiffy-Tite valved disconnects are compact, durable, and corrosion resistant. High-flow valve technology in the plug and socket assembly automatically interrupts the flow of fluid when disconnected by hand. Not intended for brake systems.

Select a socket and a plug to make a complete coupler. AN sizes are 37° for mating with existing hose ends or bungs.

FLUOROCARBON (FKM) SEAL Oil, Transmission Fluid, Water, E85 (Ethanol Fuel Blend), Gasoline, diesel.

ETHYLENE PROPYLENE (EPDM) SEAL Nitromethane Ethanol (Ethyl Alcohol), Brake Fluid, Glycol, Methanol (Methyl Alcohol)

NITRILE (NBR) SEAL Alcohol (Fuel), Oxygenated Fuel.

See Application tab for intended use on each disconnect/plug.

Application

SOCKET FOR GAS, COOLANT, OIL

468-21802
468-21404
468-21306
468-21406
468-21506P
468-21606
468-51408
468-51508
468-51410
468-51412
468-51312

SOCKET FOR ALCOHOL

468-21306B
468-21406B
468-21506BP
468-21606B

PLUG FOR GAS, COOLANT, OIL

468-22802
468-22404
468-22406
468-52410
468-52412
468-52312
468-52812
468-52812E

PLUG FOR ALCOHOL

468-22406B
468-22506B
468-22606B

CARB KITS

468-300C1
468-300C1B

Charts

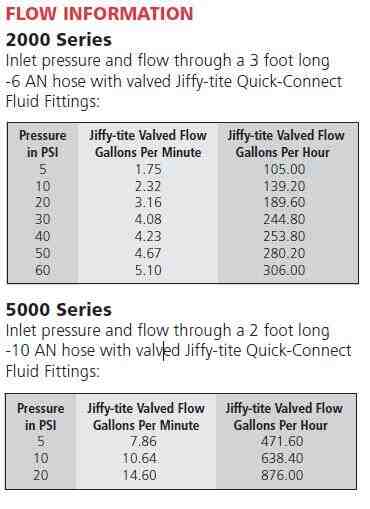

Jiffy-Tite Flow Specs (JPG)

Guides & Documents

AN to SAE Quick Disconnect Fittings Technical Information (46821506BP)

Jiffy-Tite 21506BP Specifications

KEY SPECS
MFG. Part #	21506BP
Brand	Jiffy-Tite
Fitting End A	-6 AN Hose barb
Fitting End B	2000 Series Female (Socket) Quick-disconnect
Angle	Straight
Material Type	6061-T6 Aluminum

GENERAL
Fitting Style	Quick-disconnect
Gauge Port	No
Finish	Anodized
Color	Black
Sold in Quantity	Each
Swivel	No
Valved	Yes
AN Size	-6 AN
Adjustable	No
Thread Pitch	9/16" - 18
Reusable	Yes

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

Used for an auxilary diesel tank and can

5.0

11 years ago

SDFARMER

Undisclosed

Verified

THey wont leave a drop behind when uncoupled and full.

Would Recommend

Showing 1 of 1 reviews
