#46821403

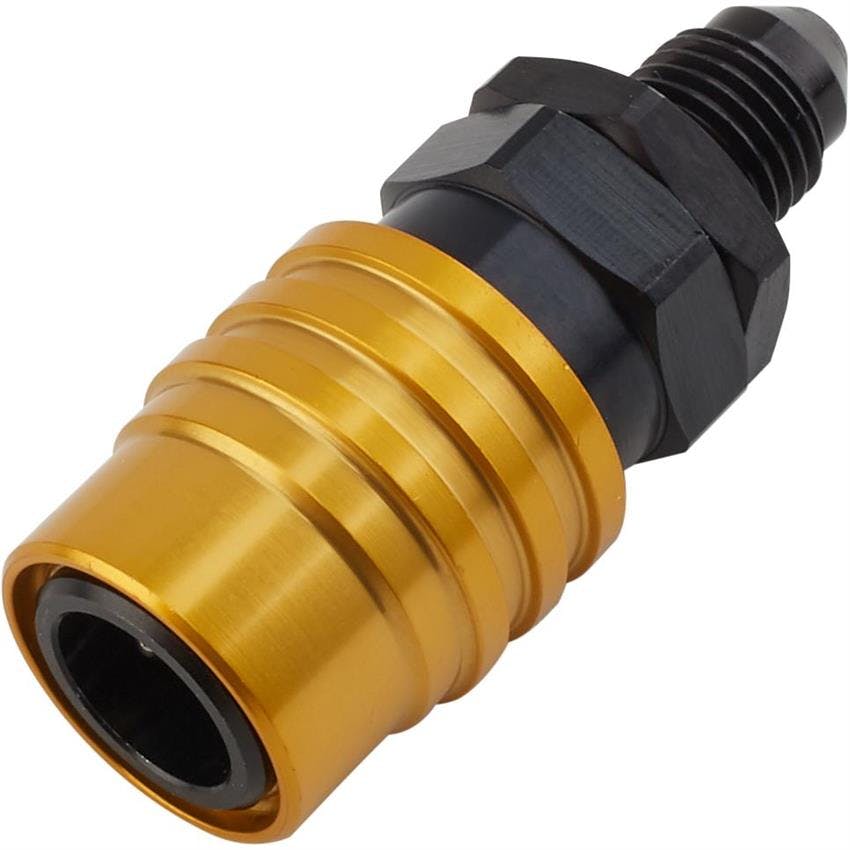

Jiffy-Tite 21403 2000 Series Quick Connect Fitting, Female
- All 2000 series fittings are available in straight, 45 ° and 90°
- All fittings are also available non-valved to allow for a 100% flow through application
- All series come standard with Fluorocarbon (FKM) seals. Buna Nitrile (NBR) seals and Ethylene Propylene (EPDM) Seals
$40.10
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Product Summary
Universal Fit, -3 AN Male Fitting End A, Anodized
- All 2000 series fittings are available in straight, 45 ° and 90°
- All fittings are also available non-valved to allow for a 100% flow through application
- All series come standard with Fluorocarbon (FKM) seals. Buna Nitrile (NBR) seals and Ethylene Propylene (EPDM) Seals
- All sockets and plugs within the same series are interchangeable
Key Specs
| MFG. Part # | 21403 |
| Brand | Jiffy-Tite |
| Fitting End A | -3 AN Male |
| Fitting End B | 2000 Series Female (Socket) Quick-disconnect |
| Material Type | 6061-T6 Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyJiffy-Tite 21403 Details
Jiffy-Tite 21403 Details
Tested and proven to have a 100% leak proof seal at 200 psi and 350° F. Made of aluminum, these Jiffy-Tite valved disconnects are compact, durable, and corrosion resistant. High-flow valve technology in the plug and socket assembly automatically interrupts the flow of fluid when disconnected by hand. Not intended for brake systems.
Select a socket and a plug to make a complete coupler. AN sizes are 37° for mating with existing hose ends or bungs.
- -3 AN adapter size
- Quick-connecting fitting
- Female quick-disconnect end
- Male threads adapter attachment
- Straight fitting angle
- Aluminum construction
FKM Seals are compatible with oil, water, fuel, transmission fluid, E85 (Ethanal fuel blend) And PAO (Polyalphaolefin)
NBR Seals are compatible with Alcohol fuel
EPDM Seals are compatible with Nitromethane, brake fluid, methanol and ethanol
Charts

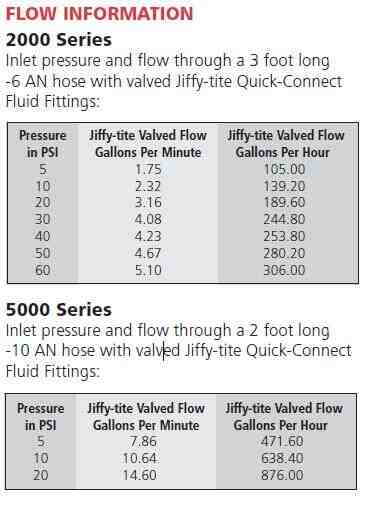

Jiffy-Tite Flow Specs (JPG)
Guides & Documents
Jiffy-Tite 21403 Specifications
Jiffy-Tite 21403 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 21403 |
| Brand | Jiffy-Tite |
| Fitting End A | -3 AN Male |
| Fitting End B | 2000 Series Female (Socket) Quick-disconnect |
| Material Type | 6061-T6 Aluminum |
| GENERAL | |
| Gauge Port | No |
| Finish | Anodized |
| Color | Black |
| Sold in Quantity | Each |
| Swivel | No |
| Valved | Yes |
| AN Size | -3 AN |
| Adjustable | No |
| Thread Pitch | 3/8" - 24 |
| Pressure Rating | 200 psi |
| Reusable | Yes |
