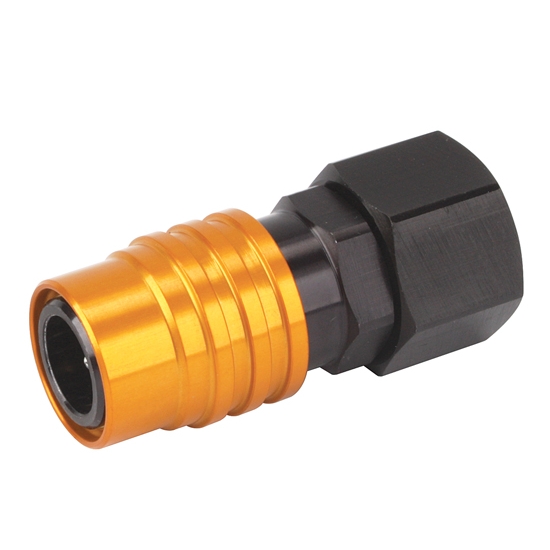

Jiffy-Tite 21306 Quick Disconnect Wing Fittings, -6 AN Female
$51.14
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Share
|
#46821306
$51.14
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
| MFG. Part # | 21306 |
| Fitting End A | -6 AN Female |
| Fitting End B | 2000 Series Female (Socket) Quick-disconnect |
| Angle | Straight |
| Material Type | 6061-T6 Aluminum |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyTested and proven to have a 100% leak proof seal at 200 psi and 350° F. Made of aluminum, these Jiffy-Tite valved disconnects are compact, durable, and corrosion resistant. High-flow valve technology in the plug and socket assembly automatically interrupts the flow of fluid when disconnected by hand. Not intended for brake systems.
Select a socket and a plug to make a complete coupler. AN sizes are 37° for mating with existing hose ends or bungs.
FKM Seals are compatible with oil, water, fuel, transmission fluid, E85 (Ethanal fuel blend) And PAO (Polyalphaolefin)
NBR Seals are compatible with Alcohol fuel
EPDM Seals are compatible with Nitromethane, brake fluid, methanol and ethanol
See Application tab for intended use on each disconnect/plug.
Application
SOCKET FOR ALCOHOL
PLUG FOR GAS, COOLANT, OIL
PLUG FOR ALCOHOL
CARB KITS
Charts

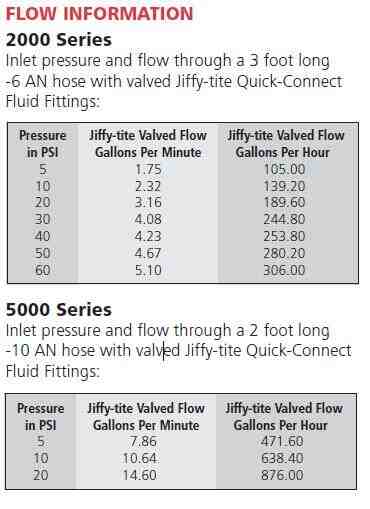

Jiffy-Tite Flow Specs (JPG)
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | 21306 |
| Brand | Jiffy-Tite |
| Fitting End A | -6 AN Female |
| Fitting End B | 2000 Series Female (Socket) Quick-disconnect |
| Angle | Straight |
| Material Type | 6061-T6 Aluminum |
| GENERAL | |
| Notes | Compatible with most oil, water, fuel or transmission applications. |
| Fitting Style | Quick-disconnect |
| Gauge Port | No |
| Finish | Anodized |
| Color | Black |
| Sold in Quantity | Each |
| Swivel | No |
| Valved | Yes |
| AN Size | -6 AN |
| Adjustable | No |
| Thread Pitch | 9/16" - 18 |
| Reusable | Yes |
