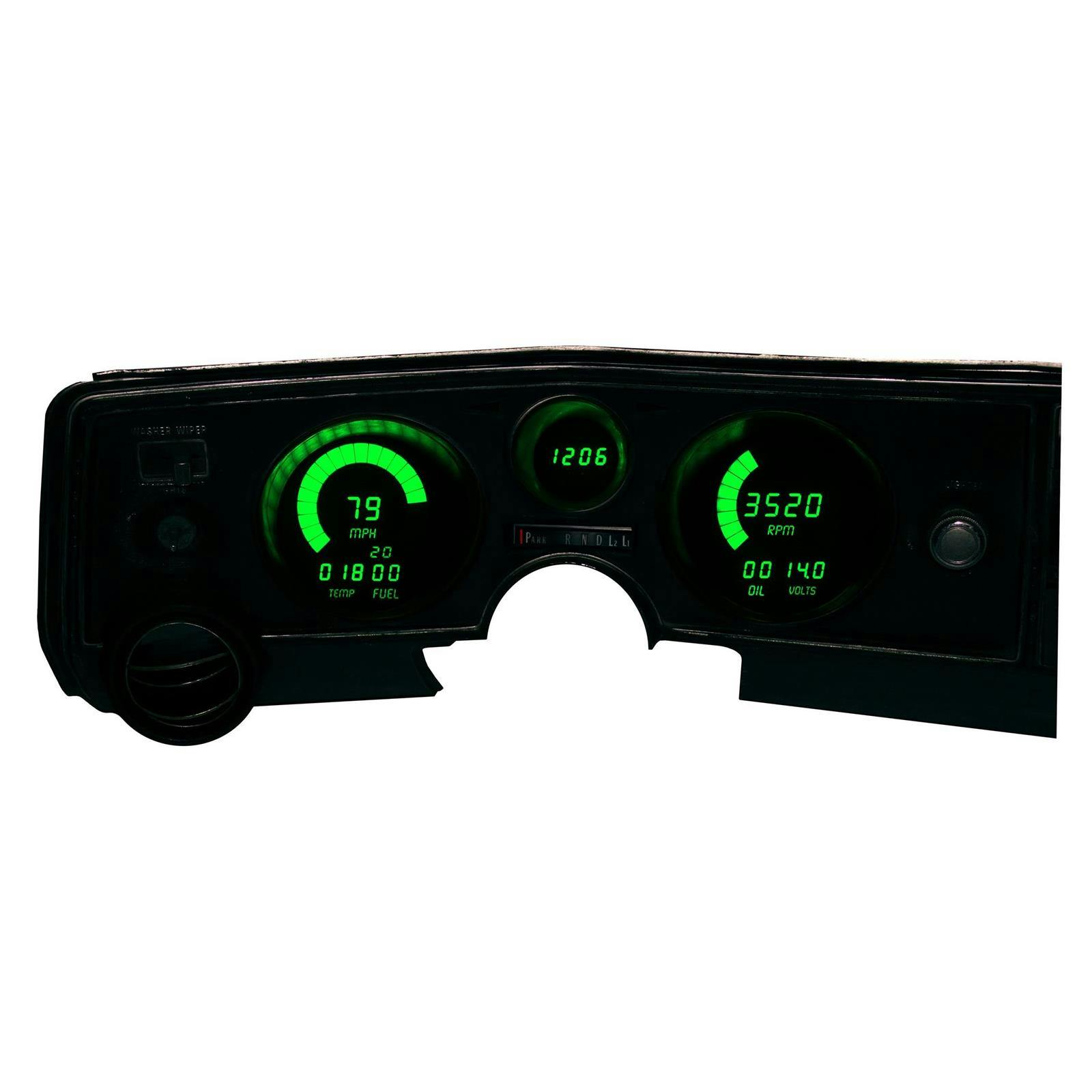

    Add panache to your 1969 Chevelle with this 1969 Chevelle LED Digital Replacement Gauge Panel by Intellitronix and make all your friends envious. The 69 Chevelle dash features 2 direct fit printed circuit boards, 2 custom fit "smoked" plexiglass face plates, universal temperature, oil pressure, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control. Mounting hardware and instructions for installation are included.

    The Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration (regardless of tire size, gear ratio, or transmission) and 0-60 time, 1⁄4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.

    Tachometer features a custom-designed LED bargraph gauge. The unit is microprocessor controlled with peak rpm memory recall, with automatic night dimming and RPM activated Switch that can handle 3 amps. It has a 0-9,999 readout in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999). It works on 1-2-4-6-8-10-12-cylinder engines.

    Water Temperature display with 50 - 250°F range with sender S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please just add a note at check-out; otherwise, you will have to get the correct bushing on your own.

    Oil Pressure display with 0-100 PSI range (Oil pressure sender included).

    Voltmeter display with 7.0-25.5 volt range (no sending unit required).

    Fuel Level is programable to 4 different ohms ranges. 73-10 ohm, 0- 90 ohm, 10 - 180 ohm,

    240 - 33 ohm.

    Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.



    AVAILABLE COLORS:  White, Red, Blue and Green

    SPEEDOMETER READING:  Order your speedometer in either MPH or KPH

    ACCESSORIES:  All required sending and sensor units are included.

    Lifetime Guarantee

    Lifetime Guarantee


    Speedway Motors Catalog Part #188-DP5002G
    GTIN Code818731015541
