Product Summary

1968 Chevy Chevelle, Digital Gauge Style, Black, Red

    Key Specs

    MFG. Part #DP5001R
    Gauge StyleDigital
    Gauge Face ColorBlack

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Intellitronix DP5001R Details

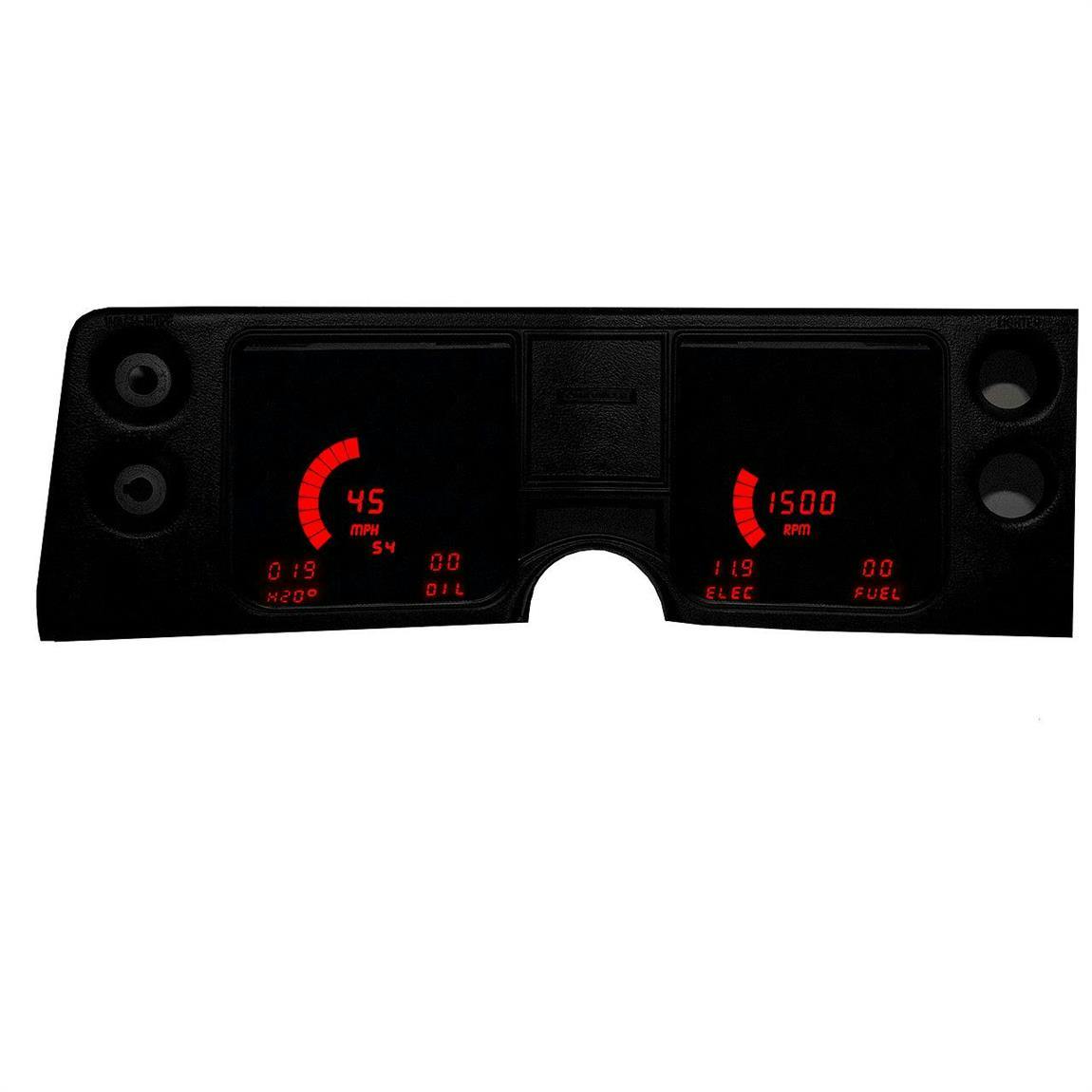

    Your 1968 Chevelle will be the talk of the neighborhood with this 1968 Chevelle LED Digital Replacement Gauge Panel by Intellitronix. The 68 Chevelle dash features 2 direct fit printed circuit boards, 2 custom fit "smoked" plexiglass face plates, universal temperature, oil pressure, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control. Mounting hardware and instructions for installation are included.

    Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.

    Tachometer displays 0-9900 RPM in 100 RPM increments.

    Water Temperature displays 100-300°F range with sender S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please just add a note at check-out.

    Oil Pressure displays 0-100 PSI range. Oil pressure sender included.

    Voltmeter displays 7.0-25.5 volt range and no sending unit is required.

    Fuel Level displays 0-99% range in 1% increments and works with existing GM fuel level sending unit.

    The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.

    Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.



    AVAILABLE COLORS:  White, Red, Blue and Green

    SPEEDOMETER READING:  Order your speedometer in either MPH or KPH

    ACCESSORIES:  All required sending and sensor units are included.

    Lifetime Guarantee

    Lifetime Guarantee

    Intellitronix DP5001R Specifications

    MFG. Part #DP5001R
    Gauge StyleDigital
    Gauge Face ColorBlack
    Speedometer IncludedYes
    Tachometer IncludedYes
    Oil Pressure Gauge IncludedYes
    Oil Temperature Gauge IncludedNo
    Water Pressure Gauge IncludedNo
    Water Temperature Gauge IncludedYes
    Fuel Pressure Gauge IncludedNo
    Fuel Level Gauge IncludedYes
    Volt Gauge IncludedYes
    Ammeter Gauge IncludedNo
    Clock IncludedNo
    GTIN Code818731011147
    NotesReuses factory housing and bezel. Works with factory fuel level sending unit. Includes 1/2 in. NPT water temperature and oil pressure sending units.
    Sold in QuantityKit
    Gauge Number ColorRed
    Gauge Panel IncludedNo
    Brake Bias Gauge IncludedNo
    Gauge Pod IncludedNo
    Hour Meter IncludedNo
    Transmission Temperature Gauge IncludedNo
    Trim Gauge IncludedNo
    Warning Lights IncludedNo
    Boost Gauge IncludedNo
    Pyrometer IncludedNo
