Product Summary

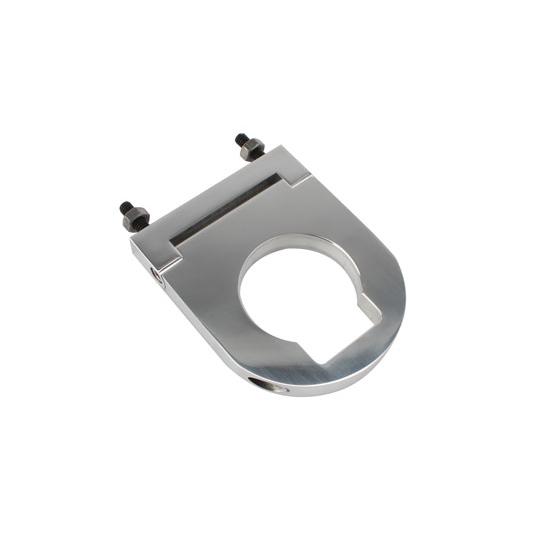

Universal Fit, 2.00" Hole Diameter, 2.50" Drop

    Key Specs

    MFG. Part #2302270040
    BrandIdidit

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    Underdash Mounts are designed for several different applications. For these swinger style drops, the underdash nuts & bolts are included. Each swinger drop has two screws on either side that when unscrewed will detach the lower half of the mount to slide your column through. They have been buffed so well that there is no noticable gap between the two pieces! Each piece was manufactured in the United States by ididit. A hinge at the upper end permits an infinite choice of mounting angles. Polished aluminum construction. These are for stock GM van steering columns (2" diameter).

    • For stock GM van steering columns (2" diameter)
    • Two screws on either side will detach to slide your column through
    • Polished aluminum construction
    • Nuts & bolts are included

    Note: Shift columns will require either a 2-1/4" hole or a 2" hole depending on the manufacturer.  Non-shift columns require a 2" hole.  Please double check application as necessary.

    Note: Column drop lengths are measured from the centerline of the column to the column drop mount surface.

    Specifications

    KEY SPECS
    MFG. Part #2302270040
    BrandIdidit
    GENERAL
    Hole Diameter2.00"
    Drop2.50"
    Material TypeAluminum
    FinishPolished
    Inside Diameter2.00"
    Stud Diameter.25"
    Mounting Bolt Center to Center2.68"
    Material Thickness.47"
    Thread Pitch1/4"-20
    Thread Length.85"
    Slot Width1.40"
    Sold in QuantityEach
    NotesThe column mount will swivels.
