#917450

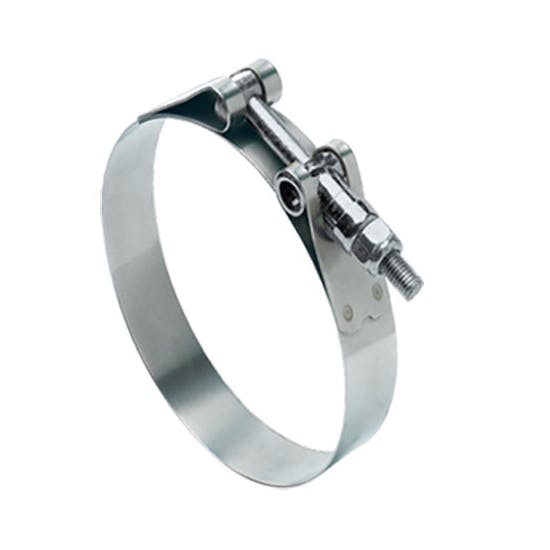

Ideal Heavy Duty T-Bolt Clamp, 4-1/2 Inch Minimum Clamping Diameter
$7.99
each
In Stock
Add to a list
Share
Product Summary
Universal Fit, T-Bolt Style, Steel, Natural, Natural
See more details
Key Specs
| Brand | Ideal Clamps |
| Style | T-Bolt |
| Material Type | Steel |
| Color | Natural |
| Finish | Natural |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Heavy duty T-Bolt clamps from Ideal Clamps provide uniform sealing pressure for a positive, reliable seal. Specifically designed for use in high vibration and large diameter applications. This is most widely used t-bolt design and it's typical applications include truck air intake systems, cold side charge air systems, off-road equipment and industrial machinery.
- Minimum Clamping Diameter:4.5
- Maximum Clamping Diameter: 4.81
- T-Bolt: 1/4″ Plated Carbon Steel
- Hex Nut: 7/16″ Plated Carbon Steel, Nylon Insert
- Band: 3/4″, 300 Stainless
- Bridge: 3/4″, 300 Stainless
- Trunnion: Plated Carbon Steel
- Installation Torque: 75 in-lbs (8.5 Nm)
Specifications
Specifications
| KEY SPECS | |
|---|---|
| Brand | Ideal Clamps |
| Style | T-Bolt |
| Material Type | Steel |
| Color | Natural |
| Finish | Natural |
| GENERAL | |
| Hose OD | 4.5" |
| Maximum Clamping Diameter | 4.81" |
| Minimum Clamping Diameter | 4.5" |
| Grip Range | 4-1/2" to 4-13/16" |
| Sold in Quantity | Each |
