Holley 97 GPH Red Elec Fuel Pump Filter & Regulator Kit 4.5-9 psi

Fuel Pump

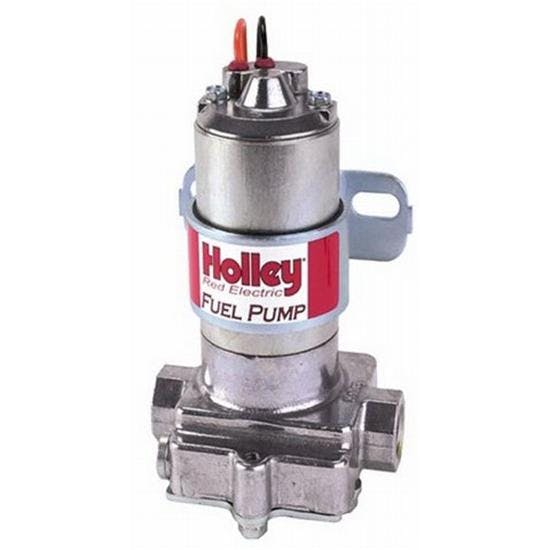

Holley's Red Electric fuel pump is a standard pressure street pump for gas only.  It has a pressure preset of 7 psi and a free flow capacity of 97 gph. It flows 67 gph while maintaining 5 psi. No regulator required. Has a 3/8" NPT inlet and outlet.

• Tumble polished billet look
• Improved design for street/strip applications
• Distinctive "Red" logo
• Flows 97 GPH (free flow)
• Flows 71 GPH at 4 PSI
• Regulator is not required
• Motor draws only 2 amps current
• 7-1/2 Amp fuse recommended
• Provides constant fuel flow with no pulsation
• Has externally accessible pressure relief valve (max 7 PSI)
• Rotor/Vane pump design is more tolerant of contaminated fuels
• New lower housing casting for enhanced fuel flow and quieter operation
• Weighs only 2.88 lbs.
• Includes mounting bracket
• Repair kits are readily available
• NOT compatible with alcohol or methanol fuels
• Use of safety shut-off switch strongly recommended
• Not designed or recommended for use with fuel injection systems
• 3/8 NPT inlet/outlet

425-12801 Instruction Sheet (PDF)

Fuel Pump Tech Info (PDF)



Fuel Regulator

These adjustable fuel pressure regulators from Holley can be adjusted from 4-1/2 to 9 PSI to regulate fuel pressure for various types of carburetors. Fuel pump regulator works well with Holley high performance fuel pumps. Use one fuel regulator per fuel bowl for high flow applications.

This fuel pressure regulator has a 3/8" NPT gauge port and requires reducer 617-6157 to install a fuel pressure gauge.



Fuel Filter

This deluxe fuel filter features a replaceable paper filter, an aluminum painted top and a chrome filter housing. It is 5-3/8" tall by 3-1/4" diameter and has 3/8" NPT inlet and outlet.

For carbureted systems only. Flows up to 90 GPH @ 7 PSI and filters particles down to 10 microns.



Kit Includes

(1) Holley 12-801-1 97 GPH Red Electric Fuel Pump

(1) Holley 12-803 Fuel Pressure Regulator, 2-Port, 4.5-9 PSI

(1) Professional Products 10102 Street Rod Fuel Filter

(4) Blue Straight AN6 Flare Adapter to 3/8 Inch Aluminum Pipe Fitting

425-12801 Instruction Sheet (PDF)

Fuel Pump Tech Info (PDF)

427-12803 Instructions(PDF)

910-11770 Instructions(PDF)
