Holley 97 GPH Red Elec Fuel Pump, Filter & Regulator Kit, 1-4 psi

Fuel Pump

Holley's Red Electric fuel pump is a standard pressure street pump for gas only.  It has a pressure preset of 7 psi and a free flow capacity of 97 gph. It flows 67 gph while maintaining 5 psi. No regulator required. Has a 3/8" NPT inlet and outlet.

• Tumble polished billet look
• Improved design for street/strip applications
• Distinctive "Red" logo
• Flows 97 GPH (free flow)
• Flows 71 GPH at 4 PSI
• Regulator is not required
• Motor draws only 2 amps current
• 7-1/2 Amp fuse recommended
• Provides constant fuel flow with no pulsation
• Has externally accessible pressure relief valve (max 7 PSI)
• Rotor/Vane pump design is more tolerant of contaminated fuels
• New lower housing casting for enhanced fuel flow and quieter operation
• Weighs only 2.88 lbs.
• Includes mounting bracket
• Repair kits are readily available
• NOT compatible with alcohol or methanol fuels
• Use of safety shut-off switch strongly recommended
• Not designed or recommended for use with fuel injection systems
• 3/8 NPT inlet/outlet

425-12801 Instruction Sheet (PDF)

Fuel Pump Tech Info (PDF)



Fuel Regulator

This Holley universal low pressure fuel regulator is factory-set to 2.7 PSI, but is fully adjustable from 1 to 4 PSI. Use with standard pump only - not recommended for maximum pressure pumps. Fuel pressure regulator includes mounting bracket with 2 each self-tapping screws for regulator to bracket installation purposes and 3 screws for bracket to vehicle installation.

Regulator has a 3/8" NPT tapped fuel pressure gauge port and requires reducer 617-6157 to install the gauge. Fuel pump regulator has 3/8" NPT inlet/outlet ports.

 Bracket Measurements:

• 2-1/2" wide
• 1-1/2" tall and deep
• 1-3/4" hole spacing to mount the regulator to the bracket
• Chrome steel construction



Fuel Filter

This deluxe fuel filter features a replaceable paper filter, an aluminum painted top and a chrome filter housing. It is 5-3/8" tall by 3-1/4" diameter and has 3/8" NPT inlet and outlet.

For carbureted systems only. Flows up to 90 GPH @ 7 PSI and filters particles down to 10 microns.



Kit Includes

(1) Holley 12-801-1 97 GPH Red Electric Fuel Pump

(1) Holley 12-804 Adjustable Fuel Pressure Regulator, 1-4 PSI

(1) Professional Products 10102 Street Rod Fuel Filter

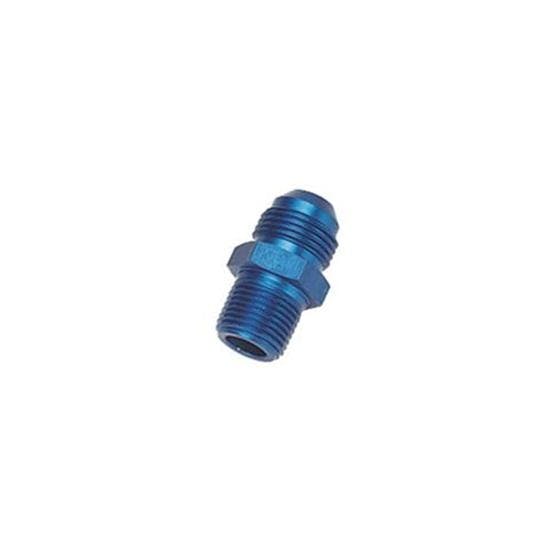

(4) Blue Straight AN6 Flare Adapter to 3/8 Inch Aluminum Pipe Fitting

425-12801 Instruction Sheet (PDF)

Fuel Pump Tech Info (PDF)

427-12804 Instructions (PDF)

910-11770 Instructions(PDF)
