Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy

Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy

Universal Fit

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
X
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Holley 12-834 Fuel Pump w/Install Kit, 1958-76 Small Block Chevy
Zoomed In Image
Part # 9109624
$148.29
$150.39
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • These all-new (not rebuilt) mechanical fuel pumps from Holley have a 7-1/2 psi shut-off pressure and deliver 80 GPH
  • The adjustable lower housing permits fuel ports (1/4" NPT) to be rotated for best fuel line access
  • These pumps are a flash chrome and not show quality
  • This tubular steel fuel pump pushrod is for hydraulic and mechanical "cast" type flat tappet camshafts
  • Both ends of this pushrod are steel tipped for the best wear characteristics

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Speedway Specialty Kits:
Speedway Specialty Kits
Sold in Quantity:
Kit

Info

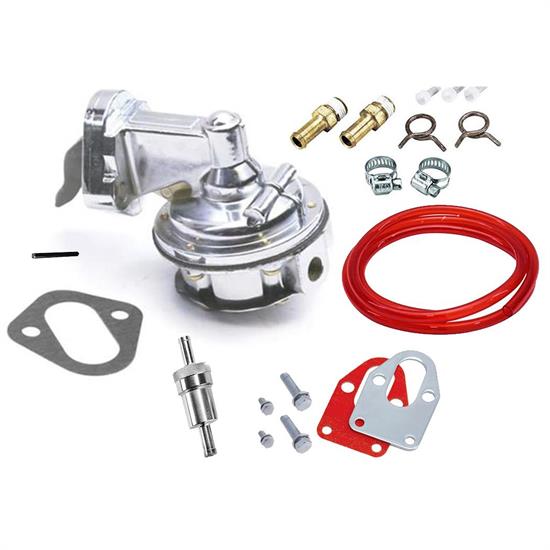

Kit Includes:

  • (1) Holley 12-834 1958-1976 Small Block Chevy Street Fuel Pump
  • (1) Fuel and Oil Line Hose Nipple Fitting Kit, 3/8 Hose to 1/4 NPT
  • (1) Chevy Fuel Pump Push Rod for Flat Tappet Cams
  • (1) Chrome Fuel Filter for 3/8 Inch Hose
  • (1) Red See-Through Fuel Line Hose, 3/8 Inch I.D. x 6 Ft.
  • (1) Spectre 42493 Fuel Mounting Plate

Holley 12-834 1958-1976 Small Block Chevy Street Fuel Pump

  • High Output Fuel Flow
  • Flows 80 GPH Free Flow
  • Shutoff Pressure Pre-set 7.5 PSI
  • Fuel Pressure Regulator is Not Required
  • Heavy Duty Construction For Continuous High RPM Operation
  • Fuel Body Casting Can Be Rotated to Accommodate Various Plumbing Situations
  • 3-1/4" pump body o/d
  • Inlet & Outlet Tapped For 1/4" NPT

Fuel and Oil Line Hose Nipple Fitting Kit, 3/8 Hose to 1/4 NPT

  • Kit includes two brass fitting adapters, 1/4" NPT pipe thread to 3/8" I.D. hose, and two stainless hose clamps
  • Kit is very useful when hooking up fuel pressure regulator fittings, fuel block fittings, fuel pump fittings, and carburetor fittings

Chevy Fuel Pump Push Rod for Flat Tappet Cams

  • Heat treated tubular steel construction
  • Centerless ground for concentricity
  • Much lighter than solid steel O.E. type pushrods

Chrome Fuel Filter for 3/8 Inch Hose

  • Fluid Inlet: Male threaded side of housing
  • Fluid Outlet: Female threaded (smaller / knurled) side of housing

Red See-Through Fuel Line Hose, 3/8 Inch I.D. x 6 Ft.

  • Speedway Red See-Through Fuel Line is the perfect old-time accent to your multi-carb street rod
  • This specially-formulated, flexible tubing has a 3/8" inside diameter and comes in 6 foot lengths
  • You can easily trim it to your needs
  • Works with normal slip-on hose barb fittings and clamps

Spectre 42493 Fuel Mounting Plate

  • This Spectre Fuel Pump Mounting Plate for short block Chevrolet engines
  • comes with a gasket, four bolts and four washers. It is used to mount mechanical fuel pumps. It is also triple chrome plated

Charts

Holley Pump Tech Info (PDF)

Spectre Warranty Information (PDF)

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Holley 12-834 1958-1976 Small Block Chevy Street Fuel Pump
    Qty x 1
  • Fuel and Oil Line Hose Nipple Fitting Kit, 3/8 Hose to 1/4 NPT
    Qty x 1
  • Chevy Fuel Pump Push Rod for Flat Tappet Cams
    Qty x 1
  • Chrome Fuel Filter for 3/8 Inch Hose
    Qty x 1
  • Red See-Through Fuel Line Hose, 3/8 Inch I.D. x 6 Ft.
    Qty x 1
  • Spectre 42493 Fuel Mounting Plate
    Qty x 1
