Product Summary

Universal Fit, External Electric Fuel Pump Type, Inline

    See more details

    Key Specs

    MFG. Part #12-1800
    Electric Fuel Pump TypeExternal
    Free Flow Rate200 GPH / 757 LPH
    Maximum Pressure80 psi
    Voltage12 volts
    See more specs

    Need To Know

    Quick and Easy Returns

    Return Policy

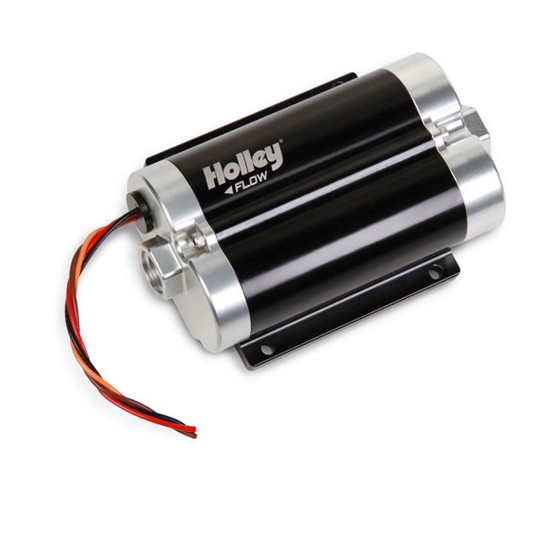

    Holley 12-1800 Details

    Need to feed some serious horsepower? Have a nitrous or forced induction powerplant that also sees street duty? Holley's Dominator in-line fuel pumps are the answer! The patent pending twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. At only 5.1 lbs, they weigh half a pound less than competitive 1000 horsepower pumps yet have twice the features!

    • Billet aluminum construction for durability and good looks
    • 10 AN O-ring inlet/outlet for high flow and superior sealing
    • Excellent for use with carbureted or EFI applications
    • Fully submersible in-tank for custom applications, space savings and less plumbing
    • Compatible with 12v to 18.5v systems for street or race use
    • Compact (7.66 Long x 5 Wide x 2.5 Tall) for easy installation on frame rails or other tight areas
    • Twin pump design allows the use of both pumps simultaneously or independently - second pump can be activated on demand for power adders such as nitrous or boost
    • Patent pending dual pump technology
    • Proven durability beyond 3,000 hours in gasoline or diesel fuels
    • Weighs only 5.1 lbs.
    • Current draw at 43 PSI and 13.5 VDC is 17.2 Amps
    Race-only pump with 20 minute maximum run time. Not for use in enviroments where temp regularly exceeds 90°F.Race-only pump with 20 minute maximum run time. Not for use in enviroments where temp regularly exceeds 90°F.

    Holley 12-1800 Specifications

    KEY SPECS
    MFG. Part #12-1800
    BrandHolley
    Electric Fuel Pump TypeExternal
    Free Flow Rate200 GPH / 757 LPH
    Maximum Pressure80 psi
    Voltage12 volts
    GENERAL
    InlineYes
    Fuel System TypeEFI | Carb
    Fuel TypePump Gas | Race Gas | Diesel | E85
    Electric Fuel Pump Inlet Fitting(s)-10 AN O-Ring Female
    Electric Fuel Pump Outlet Fitting(s)-10 AN O-Ring Female
    Material TypeAluminum
    FinishAnodized
    ColorBlack
    Fuel Pressure Regulator IncludedNo
    Sending Unit IncludedNo
    ApplicationUniversal
    Gasket(s) IncludedNo
    Wiring Harness IncludedNo
    Mounting Bracket IncludedNo
    Mounting Hardware IncludedNo
    Sold in QuantityEach
    Emission Code3
    GTIN Code090127670545
