Product Summary

Universal Fit, In Tank Electric Fuel Pump Type

    Key Specs

    MFG. Part #12-159
    BrandHolley
    Electric Fuel Pump TypeIn Tank
    Free Flow Rate119 GPH / 450 LPH

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

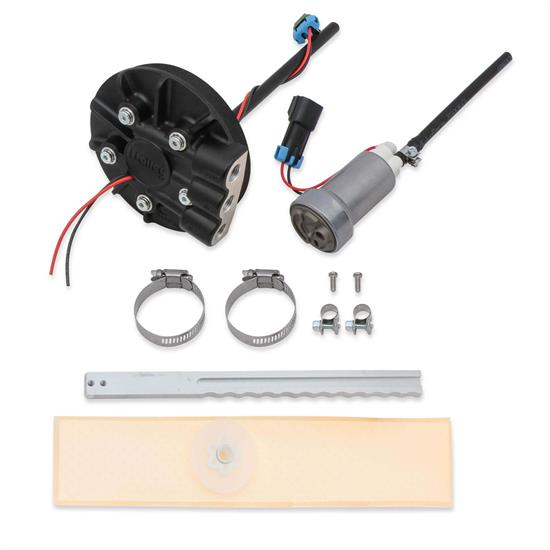

    Are you interested in an EFI retrofit kit, but just can't get past the complication of the fuel system? Holley is proud to introduce their Universal In-Tank Retrofit Fuel Modules! Available in return and returnless versions, you can rest assured Holley has the solution you need for your EFI fuel pump woes.Now you can convert your factory tank or fuel cell to an in-tank EFI fuel system quickly and easily! And- add the benefits of a Holley Hydramat in the process! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The aluminum module design includes a die cast pump hanger bracket to control pump vibration while also providing a low profile design to fit where space is at a premium. Holley's innovative clamping system and integrated fuel pump makes it easy. Once installed, hook up your fuel lines and your power source/ground and you're off and running! NO hassle!Supports up to 875 EFI or 1100 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...

    • The easiest way to convert your vehicle to an in-tank, EFI fuel system
    • Compatible for returnless style systems - no return to tank fuel line application
    • Installs in any fuel tank from 7” to 12” deep to fit a wide variety of applications
    • The low profile design is only 1.275" thick above the tank mounting surface for added clearance when needed
    • The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
    • The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
    • Includes innovative Holley Hydramat to ensure consistent fuel supply. The 3” x 15” HydraMat mounting flange has 6 clocking pin locations to allow for 360 degree adjustment to clear sending unit levels or any tank floor restrictions that you might encoun
    • Die cast aluminum construction for corrosion resistance and long lasting good looks
    • ¼” NPT ports for a wide variety of plumbing options
    • Ideal for Terminator EFI, Sniper EFI, MSD Atomic EFI or any TBI of EFI conversion
    • Optional roll over valve available
    • Two different fuel pumps are available to match your requirements - 255LPH or 450LPH for both return and returnless style systems

    Specifications

    KEY SPECS
    MFG. Part #12-159
    BrandHolley
    Electric Fuel Pump TypeIn Tank
    Free Flow Rate119 GPH / 450 LPH
    GENERAL
    Maximum Pressure60 psi
    Fuel TypeE85
    Electric Fuel Pump Inlet Fitting(s)1/4" NPT Female
    Electric Fuel Pump Outlet Fitting(s)1/4" NPT Female
    Voltage12 volts
    Material TypeCast Aluminum
    Fuel Pressure Regulator IncludedNo
    Sending Unit IncludedNo
    Gasket(s) IncludedNo
    Wiring Harness IncludedNo
    Mounting Bracket IncludedNo
    Mounting Hardware IncludedNo
    Overall Diameter4.8"
    GTIN Code090127017685
