Product Summary

Universal Fit, In Tank Electric Fuel Pump Type

    Key Specs

    MFG. Part #12-140
    BrandHolley
    Electric Fuel Pump TypeIn Tank

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

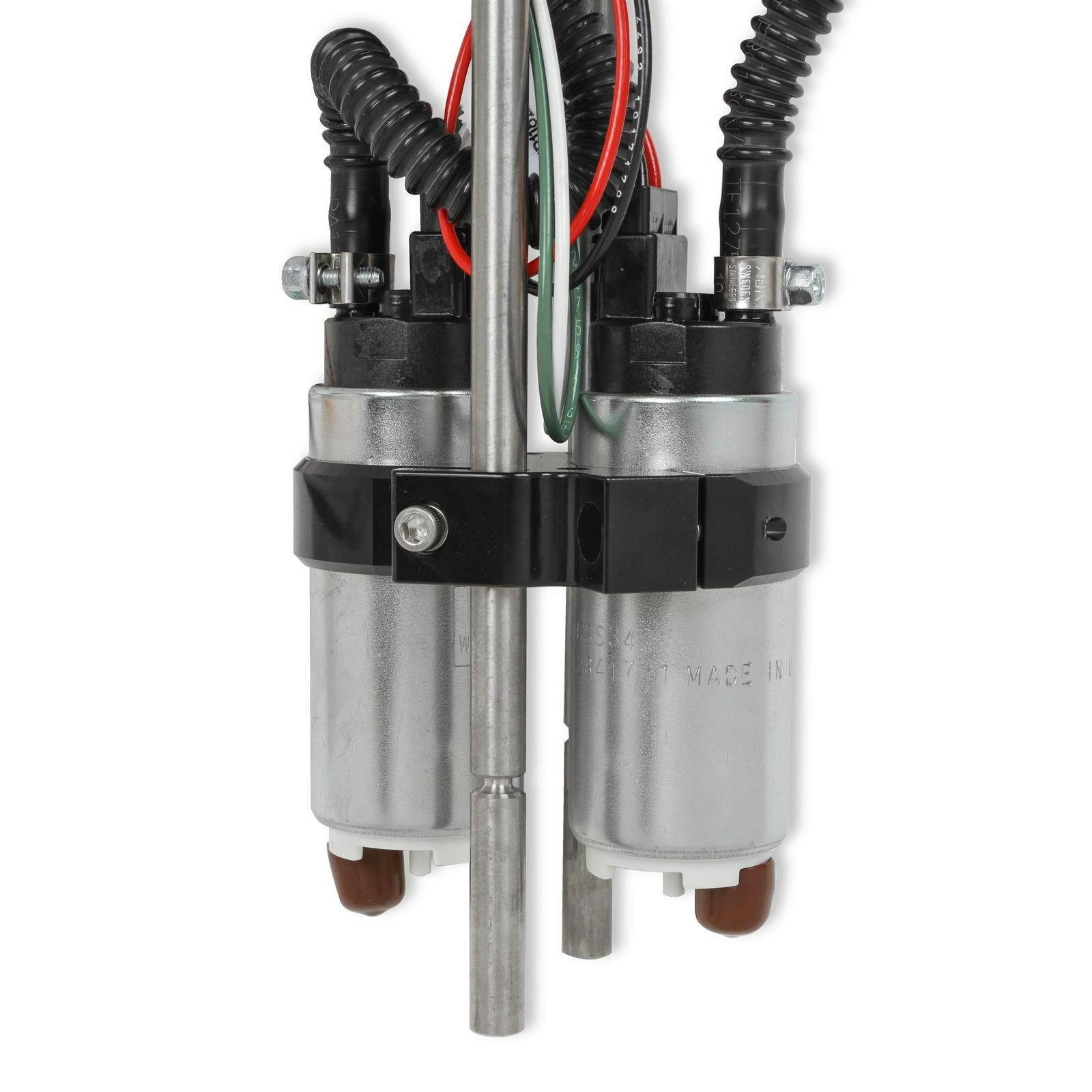

    Holley EFI Fuel Cell Pump Modules are designed to be a drop in replacement for your existing 6 bolt flange fuel cell cap assembly. Update your fuel cell the easy way and drop one of these EFI fuel cell pump modules in! All you need to add is your new fuel lines.

    • -8AN inlet port
    • -10AN outlet port
    • Fuel pump depth fully adjustable from 7.5 inches to 11 inches deep
    • Includes all hardware to install into exiting fuel cell
    • 132 GPH free flow
    • 87 psi maximum
    • Supports up to 1100 EFI or 1400 Carb HP

    Charts

    Specifications

    KEY SPECS
    MFG. Part #12-140
    BrandHolley
    Electric Fuel Pump TypeIn Tank
    GENERAL
    Free Flow Rate132 GPH / 500 LPH
    Maximum Pressure60 psi
    InlineNo
    Fuel System TypeEFI | Carb
    Electric Fuel Pump Inlet Fitting(s)-8 AN
    Electric Fuel Pump Outlet Fitting(s)-10 AN
    Voltage12 volts
    ColorBlack
    Fuel Pressure Regulator IncludedNo
    Sending Unit IncludedYes
    Gasket(s) IncludedNo
    Wiring Harness IncludedNo
    Mounting Bracket IncludedNo
    Overall Length16"
    Overall Width8.5"
    Overall Height8.5"
    Sold in QuantityEach
    NotesRegulator needed if using carburetor.
