Product Summary

C4, 24 Input Spline Quantity, 10" Diameter, Balanced

    Key Specs

    MFG. Part #97-2D28Q
    Input Spline Quantity24
    Stall Speed (RPM)2800-3200

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

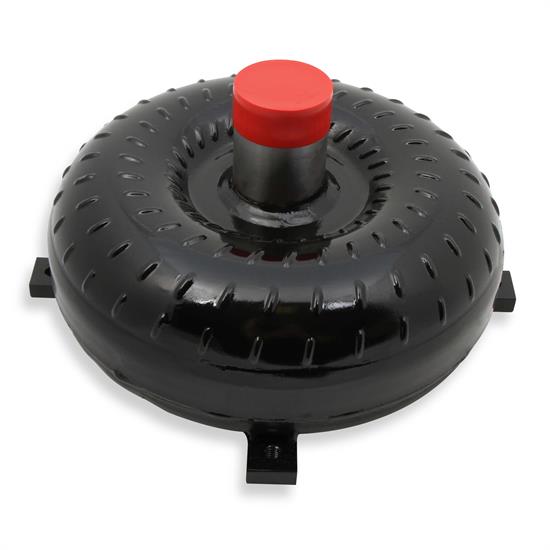

    Hays 97-2D28Q Details

    Hays Performance Drivetrain is proud to announce Twister 3/4 Race Performance Torque Converters. These NEW torque converters are a perfect addition to Hays product line of performance flexplates, clutches, and flywheels. The 3/4 Race torque converter is the first series being brought to market and is intended for street/strip combinations, with various RPM stall speed offerings to accommodate any mixture of modifications including higher compression ratios, aftermarket camshafts, aftermarket cylinder heads, lower gear ratios, and vehicle weight loss. The name 3/4 Race perfectly describes a torque converter suited for an application just shy of a Full Race version. We do plan to offer Full Race torque converters in the near future.Good names never go away, and neither should good terms!Hays Twister 3/4 Race Torque Converters!
    • 3/4 Race series converters are built, tested, and proven to support up to 650 HP
    • State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature
    • Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality
    • All HAYS converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency
    • Heavy duty Torrington bearings are used for greater strength and durability
    • Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications
    • Increased horsepower and acceleration due to a weight saving, one application design. Almost all HAYS converters are built for one application to reduce weight compared to a multi-bolt pattern converter.
    • 3/4 Race series converters are offered in several different stall speeds for GM, Ford, and Chrysler transmissions
    • Industry leading Tech Support Team is available to provide assistance with stall speed selection


    Hays 97-2D28Q Specifications

    MFG. Part #97-2D28Q
    Input Spline Quantity24
    Stall Speed (RPM)2800-3200
    Anti-Ballooning PlateNo
    Bolt Circle Diameter10.5"
    Crank Pilot Diameter1.375"
    Use with Power AdderNo
    Use with Trans BrakeNo
    Torque Converter Series3/4 Race
    GTIN Code090127017463
    Sold in QuantityEach
