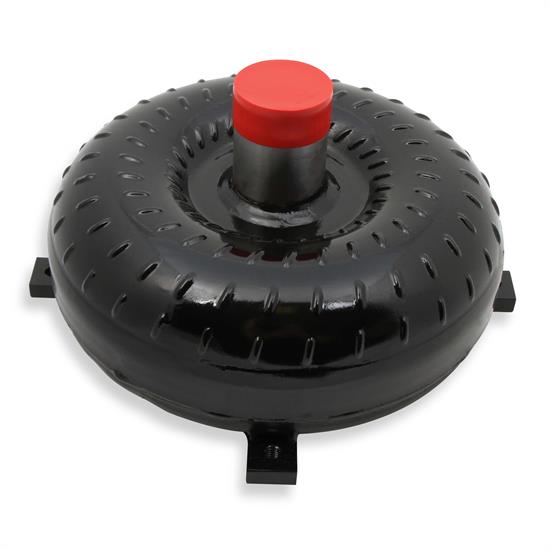

Hays 97-2C24Q Twister 3/4 Race Converter, Ford C4, Pan-Filled

-7%

#425972C24Q

Hays 97-2C24Q Twister 3/4 Race Converter, Ford C4, Pan-Filled

Name: Hays 97-2C24Q Twister 3/4 Race Converter, Ford C4, Pan-Filled
Brand: Hays
SKU: 425972C24Q
Price: 549.95 USD
Availability: InStock

Write a Review

Ask a Question

Stall Speed:

2400-2800

2800-3200

$549.95

/each

Factory Shipped

$596.95

Save $47.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

C4, 26 Input Spline Quantity, 10" Diameter, Balanced

See more details

Key Specs

MFG. Part #	97-2C24Q
Brand	Hays
Input Spline Quantity	26
Diameter	10"
Stall Speed (RPM)	2400-2800

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Hays 97-2C24Q Details

Hays Performance Drivetrain is proud to announce Twister 3/4 Race Performance Torque Converters. These NEW torque converters are a perfect addition to Hays product line of performance flexplates, clutches, and flywheels. The 3/4 Race torque converter is the first series being brought to market and is intended for street/strip combinations, with various RPM stall speed offerings to accommodate any mixture of modifications including higher compression ratios, aftermarket camshafts, aftermarket cylinder heads, lower gear ratios, and vehicle weight loss. The name 3/4 Race perfectly describes a torque converter suited for an application just shy of a Full Race version. We do plan to offer Full Race torque converters in the near future.Good names never go away, and neither should good terms!Hays Twister 3/4 Race Torque Converters!

3/4 Race series converters are built, tested, and proven to support up to 650 HP
State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature
Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality
All HAYS converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency
Heavy duty Torrington bearings are used for greater strength and durability
Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications
Increased horsepower and acceleration due to a weight saving, one application design. Almost all HAYS converters are built for one application to reduce weight compared to a multi-bolt pattern converter.
3/4 Race series converters are offered in several different stall speeds for GM, Ford, and Chrysler transmissions
Industry leading Tech Support Team is available to provide assistance with stall speed selection

Charts

Installation Instructions (PDF)

Guides & Documents

Torque Converters Installation Instructions (425972C24Q)

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Hays 97-2C24Q Specifications

KEY SPECS
MFG. Part #	97-2C24Q
Brand	Hays
Input Spline Quantity	26
Diameter	10"
Stall Speed (RPM)	2400-2800

GENERAL
Anti-Ballooning Plate	No
Bolt Circle Diameter	11.4375"
Balanced	Yes
Crank Pilot Diameter	1.375"
Use with Power Adder	No
Use with Trans Brake	No
Lockup/Overdrive	No
Torque Converter Series	3/4 Race
GTIN Code	090127017432
Sold in Quantity	Each

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1966-1977 Ford Bronco

1975 Ford Courier

1965-1972 Ford Custom

1973-1977 Ford Custom 500

1969-1977 Ford E-100 Econoline

1975-1977 Ford E-100 Econoline Club Wagon

1976-1977 Ford E-150 Econoline

1976-1977 Ford E-150 Econoline Club Wagon

1975-1976 Ford Elite

1964-1981 Ford F-100

1977-1978 Ford F-150

1964-1977 Ford F-250

1964-1977 Ford F-350

1965-1969 Ford Fairlane

1978-1981 Ford Fairmont

1964-1970 Ford Falcon

1964-1967 Ford Galaxie

1968-1974 Ford Galaxie 500

1975-1976 Ford Gran Torino

1975-1981 Ford Granada

1966-1980 Ford LTD

1977-1979 Ford LTD II

1970-1977 Ford Maverick

1964-1984 Ford Mustang

1974-1978 Ford Mustang II

1971-1980 Ford Pinto

1964-1979 Ford Ranchero

1977-1981 Ford Thunderbird

1968-1976 Ford Torino

1977-1980 Lincoln Versailles

1975-1980 Mercury Bobcat

1972-1981 Mercury Capri

1964-1977 Mercury Comet

1967-1981 Mercury Cougar

1964-1971 Mercury Cyclone

1980 Mercury Grand Marquis

1971-1980 Mercury Marquis

1975-1980 Mercury Monarch

1968 Mercury Montclair

1968-1976 Mercury Montego

1972-1974 Mercury Monterey

1978-1981 Mercury Zephyr
