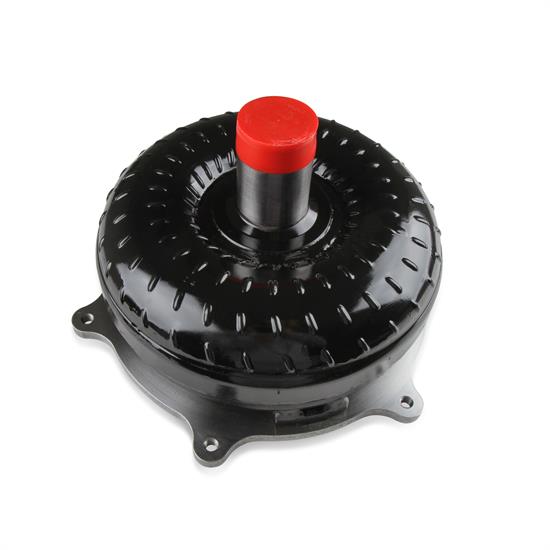

Hays 97-1J32F Twister Full Race Converter GM 4L80E, 3200-3600

$169 Off

#425971J32F

Hays 97-1J32F Twister Full Race Converter GM 4L80E, 3200-3600

Name: Hays 97-1J32F Twister Full Race Converter GM 4L80E, 3200-3600
Brand: Hays
SKU: 425971J32F
Price: 1799.95 USD
Availability: InStock

Write a Review

Ask a Question

Stall Speed:

3200-3600

2400-28002800-3200 3600-4200

$1,799.95

/each

Factory Shipped

$1,968.95

Save $169.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

4L80E, 35 Input Spline Quantity, 9.6" Diameter

See more details

Key Specs

MFG. Part #	97-1J32F
Brand	Hays
Input Spline Quantity	35
Diameter	9.6"
Stall Speed (RPM)	3200-3600

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Hays 97-1J32F Details

Hays Twister Full Race Torque Converters feature a custom designed anti-balloon plate to stop any converter ballooning and swelling in racing situations. These torque converters are designed for use with a trans-brake and great for power adders such as nitrous, superchargers, and turbos. They are available with various RPM stall speed offerings to accommodate any mixture of modifications including higher compression ratios, aftermarket camshafts, aftermarket cylinder heads, lower gear ratios, and vehicle weight loss.

All Full Race series converters are built, tested, and proven to support up to 1,000 horsepower
Features a custom anti-balloon plate designed to stop potential torque converter ballooning
Designed to handle the extreme shock and abuse of trans-brakes, nitrous oxide, superchargers, and turbochargers
State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature
Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality
All Hays torque converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency
Heavy duty Torrington bearings are used for greater strength and durability
Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications
Increased horsepower and acceleration due to a weight saving, one application design. Almost all Hays converters are built for one application to reduce weight compared to a multi-bolt pattern converter.
Full Race series torque converters are offered in several different stall speeds for popular automatic transmissions
Industry leading Tech Support Team is available to provide assistance with stall speed selection

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Hays 97-1J32F Specifications

KEY SPECS
MFG. Part #	97-1J32F
Brand	Hays
Input Spline Quantity	35
Diameter	9.6"
Stall Speed (RPM)	3200-3600

GENERAL
Anti-Ballooning Plate	Yes
Bolt Circle Diameter	11.5"
Balanced	Yes
Crank Pilot Diameter	1.703"
Use with Power Adder	Yes
Use with Trans Brake	Yes
Lockup/Overdrive	No
Torque Converter Series	Full Race
GTIN Code	090127039359
Sold in Quantity	Each
