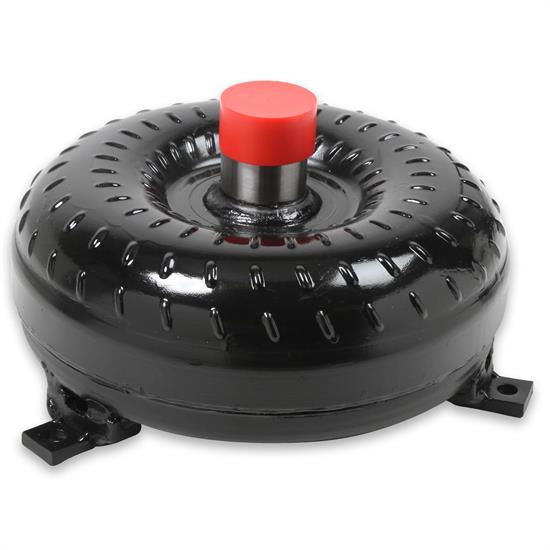

Hays 97-1G32Q Twister 3/4 Race Torque Converter, 1984-Up GM 4L60E

-8%

#425971G32Q

Hays 97-1G32Q Twister 3/4 Race Torque Converter, 1984-Up GM 4L60E

Name: Hays 97-1G32Q Twister 3/4 Race Torque Converter, 1984-Up GM 4L60E
Brand: Hays
SKU: 425971G32Q
Price: 999.95 USD
Availability: InStock

Write a Review

Ask a Question

Stall Speed:

3200-3600

2400-2800 2800-3200

$999.95

/each

Factory Shipped

$1,094.95

Save $95.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

4L60E, 30 Input Spline Quantity, 9.6" Diameter

See more details

Key Specs

MFG. Part #	97-1G32Q
Brand	Hays
Input Spline Quantity	30
Diameter	9.6"
Stall Speed (RPM)	3200-3600

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Hays 97-1G32Q Details

Hays Performance Drivetrain is proud to announce the addition of Twister 3/4 Race Performance Torque Converters. Torque converters are a perfect addition to our line of performance Flex-plates, Clutches, and Flywheels. The 3/4 Race converter is the first series we are bringing to market. This series of converters is intended for street/strip combinations, with various stall offerings to accommodate any mixture of modifications including higher compression ratios, aftermarket camshafts, aftermarket cylinder heads, lower gear ratios, and vehicle weight loss. The name "3/4 Race Converters" perfectly describes a converter suited for an application just shy of Full Race, which is a series we will offer in the near future.Hays 3/4 Race Converters!Good names never go away, and neither should good terms!

3/4 Race series converters are built, tested, and proven to support up to 650 HP.
State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature
Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality
All HAYS converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency
Heavy duty Torrington bearings are used for greater strength and durability
Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications
Increased horsepower and acceleration due to a weight saving, one application design. Almost all HAYS converters are built for one application to reduce weight compared to a multi-bolt pattern converter.
3/4 Race series converters are offered in several different stall speeds for GM, Ford, and Chrysler transmissions
Industry leading Tech Support Team is available to provide assistance with stall speed selection

Charts

Installation Instructions (PDF)

Guides & Documents

Torque Converters Installation Instructions (425971G32Q)

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Hays 97-1G32Q Specifications

KEY SPECS
MFG. Part #	97-1G32Q
Brand	Hays
Input Spline Quantity	30
Diameter	9.6"
Stall Speed (RPM)	3200-3600

GENERAL
Anti-Ballooning Plate	No
Bolt Circle Diameter	10.75"
Balanced	Yes
Crank Pilot Diameter	1.703"
Use with Power Adder	No
Use with Trans Brake	No
Lockup/Overdrive	Yes
Torque Converter Series	3/4 Race
GTIN Code	090127017357
Sold in Quantity	Each

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

2001-2004 Avanti II

2004-2007 Buick Rainier

1994-1996 Buick Roadmaster

1994-1996 Cadillac Commercial Chassis

1999-2005 Cadillac Escalade

1994-1996 Cadillac Fleetwood

1993-2005 Chevy Astro

2007-2008 Chevy Avalanche

2002-2006 Chevy Avalanche 1500

1993-2005 Chevy Blazer

1993-1999 Chevy C1500

1993-1999 Chevy C1500 Suburban

1993-1999 Chevy C2500

1993-1996 Chevy C2500 Suburban

1994-2002 Chevy Camaro

1994-1996 Chevy Caprice

2004-2012 Chevy Colorado

1994-2004 Chevy Corvette

1996-2014 Chevy Express 1500

1996-2009 Chevy Express 2500

2006-2009 Chevy Express 3500

2009-2014 Chevy Express Cargo

2009-2015 Chevy Express Pasajeros

1993-1995 Chevy G10

1993-1995 Chevy G20

1993-1995 Chevy G30

1994-1996 Chevy Impala

1993-1999 Chevy K1500

1993-1999 Chevy K1500 Suburban

1993-1998 Chevy K2500

1993-1996 Chevy K2500 Suburban

1993-2004 Chevy S10

1993-1994 Chevy S10 Blazer

1999-2013 Chevy Silverado 1500

2007 Chevy Silverado 1500 Classic

1999-2001 Chevy Silverado 2500

2003-2004 Chevy SSR

2000-2009 Chevy Suburban 1500

2000 Chevy Suburban 2500

1995-2009 Chevy Tahoe

2002-2009 Chevy Trailblazer

2002-2006 Chevy Trailblazer EXT

1993-1999 GMC C1500

1993-1999 GMC C1500 Suburban

1993-1999 GMC C2500

1993-1996 GMC C2500 Suburban

2004-2012 GMC Canyon

2002-2009 GMC Envoy

2002-2006 GMC Envoy XL

2004-2005 GMC Envoy XUV

1993-1995 GMC G1500

1993-1995 GMC G2500

1993-1995 GMC G3500

1993-2005 GMC Jimmy

1993-1999 GMC K1500

1993-1999 GMC K1500 Suburban

1993-1998 GMC K2500

1993-1996 GMC K2500 Suburban

1993-2005 GMC Safari

1996-2014 GMC Savana 1500

1996-2009 GMC Savana 2500

2006-2009 GMC Savana 3500

2007-2010 GMC Sierra

1999-2013 GMC Sierra 1500

2007 GMC Sierra 1500 Classic

1999-2001 GMC Sierra 2500

1993-2004 GMC Sonoma

1993 GMC Typhoon

1993-2010 GMC Yukon

2000-2008 GMC Yukon XL 1500

2000 GMC Yukon XL 2500

2006-2010 Hummer H3

2009-2010 Hummer H3T

2003-2008 Isuzu Ascender

1996-2000 Isuzu Hombre

2006 Isuzu i-280

2007-2008 Isuzu i-290

2006 Isuzu i-350

2007-2008 Isuzu i-370

1993-2004 Oldsmobile Bravada

1994-2002 Pontiac Firebird

2004 Pontiac GTO

2005-2009 Saab 9-7x
