Gasser Straight Axle, Ford Spindle and Brake Kits, 56-1/4 Hub-to-Hub

#9103548

Gasser Straight Axle, Ford Spindle and Brake Kits, 56-1/4 Hub-to-Hub

Name: Gasser Straight Axle, Ford Spindle and Brake Kits, 56-1/4 Hub-to-Hub
Brand: Speedway Motors
SKU: 9103548
Rating: 4.8 (16 reviews)

16 Reviews

3 Questions

Old school gasser axle kit has a 48" axle and features a 56-1/4" hub to hub measurement, wheel mounting surface to wheel mounting surface
11" vented rotors resist heat and brake fade and have a 5 on 4-1/2" bolt pattern with 1/2"-20 studs
Features common '78-'88 GM metric calipers with a 2-1/2" bore offers easy serviceability and proven performance

Caliper Type:

Stock-Style

Wilwood D154

Brake Kit:

Select a brake kit

Starting from

$1,134.99

/kit

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Straight Axle Front Suspension Type

Old school gasser axle kit has a 48" axle and features a 56-1/4" hub to hub measurement, wheel mounting surface to wheel mounting surface
11" vented rotors resist heat and brake fade and have a 5 on 4-1/2" bolt pattern with 1/2"-20 studs
Features common '78-'88 GM metric calipers with a 2-1/2" bore offers easy serviceability and proven performance
New Forged 4140 steel '37-'48 Ford round back spindles provide strength and dependability for years of service
Universal design to fit multiple vehicle applications, will require welding and fabrication

See more details

Key Specs

MFG. Part #	Select Caliper Type and Brake Kit
Front Suspension Type	Straight Axle
Suspension Height Adjustment	Stock Height
Control Arm Style	Not Included
Shock Type	Not Included

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Front Suspension Kits Installation Instructions (9103548)

Front Spring Choices for Traditional Straight Axle Hot Rods

Spindles Installation Instructions (91032104)

Brake Pad Identification and Friction Surface Options Explained

Brake Caliper Brackets Installation Instructions (7024475)

Disc Brake Kits Installation Instructions (83514011013)

Everything You Need to Know About Converting Drum Brakes to Disc

Disc Brake Kits Installation Instructions (83514011013)

Installation Tips

If using steel wheels with Wilwood kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheels from galling the aluminum hub.
Rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Details

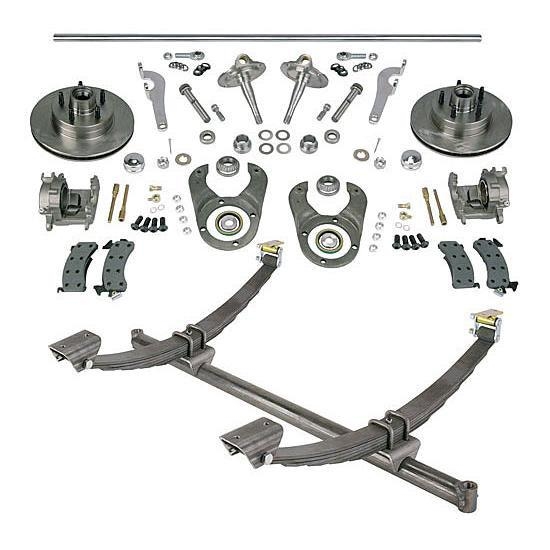

These kits include our gasser straight front axle, semi-elliptical springs, spindles, king pins, steering arms, tierod kit, brake kit, and hardware. Choose either 5 on 4-1/2" or 5 on 4-3/4" bolt pattern with standard brake kit or Wilwood brake kit. Standard brake kits use new rotors and GM metric style calipers. Wilwood brake kit includes dual-drilled hub. Brake lines not included. Shocks not included, but shock mounts are included. Assembly required.

48 inch

Note: Wilwood brakes increase hub-to-hub width by 1/2".

Item Details

37-41 Ford Spindles, Specify bolt pattern,
48" Wide axle - 56 1/4" hub to hub.

Not For Off-Road Race Use

Charts

910-3548 Instructions (PDF)

Gasser Info (PDF)

Specs

Gasser Kit w/ "Ford" Spindles

Leaf springs, 31-1/4" long x 1-3/4" wide
- 6 leaf, 1/4" thick
- 400 lbs/inch spring rate
Ford-style spindles (drop forged 4140 steel)
- Modeled after the 1937-41 round-back design
- Uses 1937-41 Ford king pins (included)

"Ford" Spindle Standard Brake Kit

5 x 4-1/2" Ford/Mopar bolt pattern
- 11" vented iron rotor, 1" thick
- Hub flange (hat) diameter -
- 1/2" Fine wheel studs
- GM Metric '78-'88 calipers, 2-1/2" piston
- 7/16"-20 banjo bolt to AN-3 line adapter kit
5 x 4-3/4" GM bolt pattern
- 11" vented iron rotor, 1" thick
- Hub flange (hat) diameter - 6-1/4"
- 7/16" Fine wheel studs
- GM Metric '78-'88 calipers, 2-1/2" piston
- 7/16"-20 banjo bolt to AN-3 line adapter kit

"Ford" Spindle Wilwood Brake Kit (must use 15"+ wheels)

Forged Dynalite 4-piston Calipers
11.00" x .810" Ultralite HP 30 Vane iron rotors
Wilwood BP-10 SmartPads - low noise, low dust
Lightweight anodized aluminum Pro Street hubs
1/2"-20 wheel studs

Guides & Documents

Front Suspension Kits Installation Instructions (9103548)

Front Suspension Kits Technical Information (9103548)

Straight Axles Technical Information (91035125)

Leaf Springs Technical Information (91033029)

Front Spring Choices for Traditional Straight Axle Hot Rods

Spindles Installation Instructions (91032104)

Spindles Technical Information (91032104)

Steering Arms Technical Information (91632038)

Swedged Tubes Technical Information (91631)

Disc Brake Pads Technical Information (9193381)

Brake Pad Identification and Friction Surface Options Explained

Brake Caliper Brackets Installation Instructions (7024475)

Brake Caliper Brackets Technical Information (7024475)

Disc Brake Kits Installation Instructions (83514011013)

Everything You Need to Know About Converting Drum Brakes to Disc

Disc Brake Kits Installation Instructions (83514011013)

Specifications

KEY SPECS
MFG. Part #	Select Caliper Type and Brake Kit to see
Brand	Speedway Motors
Front Suspension Type	Straight Axle
Suspension Height Adjustment	Stock Height
Control Arm Style	Not Included
Shock Type	Not Included
Spring Type	Leaf Spring
Finish	Natural
Bolt Pattern	Select Caliper Type and Brake Kit to see
Rotor Diameter	11 Inch
Spindle Style	Ford Custom
Dropped Spindles	No
Dropped Axle	No
Dropped Control Arms	No
Front Leaf Spring Style	Semi-Elliptical Gasser
Spindles Included	Yes
Brakes Included	Yes
Steering Included	Yes
Caliper Pistons	Select Caliper Type and Brake Kit to see
Caliper Finish	Select Caliper Type and Brake Kit to see
Welding Required	Yes

GENERAL
Straight Axle Style	Tube

Ratings & Reviews

4.8

16 Reviews

Overall Assessment

Product proves excellent quality, practicality and easy to use as noted by multiple customer reviews. The kit is well-engineered, complete, cost-effective and has been called the "most complete kit out there". It provides "the best bang for the buck" and a great time-saver compared to "scratch" builds. Notable features include providing more room for customization and being suitable for different car models. Speedway's targeted at 50's cars but can handle 30's cars with slight challenges. On usability, the kit could improve by providing better instructions, and clearer, detailed directions. Some users replaced its Heim joints with ones from ''Rod End Supply'' but overall satisfaction high. Despite minor dislikes, product’s recommended for projects due to speed and overall quality.

Write A Review

4.8

16 reviews

Filter by Ratings

Sort Reviews

Yes

5.0

8 months ago

Rolando

Prescott AZ

Verified

Installing on 1961 ford falcon 2 door station wagon 468 cu in FE Gasser

Would Recommend

Excellent product!

5.0

5 years ago

Racer Rick

Joshua,Tx

Verified

Can't wait to finish my project!

Would Recommend

Yes

5.0

5 years ago

Tex

Papillon,Ne

Verified

Fit like it should

Would Recommend

Great product I will buy again

5.0

5 years ago

Dave

Winsted Mn.

Verified

I have personally found that speedway put a lot of time and effort into there kits like this and that really helps the end user. I have purchased a lot of stuff from speedway and I have yet to be disappointed.

Would Recommend

Instructions would be nice.

4.0

5 years ago

Jiga's Junkyard Gasser

Temecula Ca

Verified

Because no instructions are included the end buyer either has to A) go back to the Speedway motors website and download/ print. Or B) guess how things are supposed to be torqued, welded, and installed.

Would Recommend

package was complete,fast delivery

5.0

6 years ago

71 KADART

ST.LEON, IN.

Verified

DIRECTIONS COULD BE A BIT MORE DETAILED

Would Recommend

Gasser Straight Axle for a 64 falcon

5.0

6 years ago

Outlaw

Mimbres,New Mexico

Verified

the straight axle will give me more room which I'll need.

Would Recommend

Very nnice kit!!!!!!!!!!!!

5.0

6 years ago

gasserup

falls city ne

Verified

gasser

Would Recommend

Very complete kit. Well thought out and engineered.

5.0

6 years ago

MoparDan

Webberville Michigan

Verified

Using this to replace the parallel leaf setup for my 1929 DeSoto. I substituted a 4" drop axle, and it lets the car sit right.

Would Recommend

I've bought & installed this kit 4 times...and will again.

5.0

7 years ago

Doug

Las Vegas

Verified

This is, by far, the most complete kit out there. Easy to install, and cost effective.

Would Recommend

Load More Reviews

Showing 10 of 16 reviews

Questions & Answers

3 Questions • 5 Answers

Sort Questions

On the 56 1/4 ford spindle axle what is the width measurement from center to center on the leaf springs? Also are they adjustable width? Do you have a pitman arm and drag link that would work with this axle for a 1965 Dodge Dart with a power steering gear box?

by J W

• 9 years ago

2 answers

View Answers

I purchased this kit to install on a 63 falcon. I really cant see the original steering box working to well. but I can see maybe a vega box working well. what are your opinions on this? and what type of box would be best for this project? p.s. who sells SBF fenderwell headers ? lol thanks dave

by moe

• 11 years ago

2 answers

View Answers

steering I bought this straight axle/ gasser kit for my 1962 ford falcon. what do I need to make it steer? do I use my stock pitman arm and drag link? do I need to purchase some other items? Thanks for your help

by ovpatb

• 11 years ago

1 answer

View Answer

3 of 3 questions shown
