Gasser Straight Axle, Chevy Spindle and Brake Kits, 58-1/2 Hub-to-Hub
- Universal Gasser axle kit features a 58-1/2" hub to hub measurement, meaning wheel mounting surface to wheel mounting surface
- Features a Speedway 50" kingpin center to center straight axle
- Your choice of standard disc brakes 9-1/4" vented rotor and single piston GM metric calipers with either 5 on 4-1/2" or 5 on 4-3/4" wheel bolt pattern, 7/16" studs
Starting from
$1,013.99
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Straight Axle Front Suspension Type
- Universal Gasser axle kit features a 58-1/2" hub to hub measurement, meaning wheel mounting surface to wheel mounting surface
- Features a Speedway 50" kingpin center to center straight axle
- Your choice of standard disc brakes 9-1/4" vented rotor and single piston GM metric calipers with either 5 on 4-1/2" or 5 on 4-3/4" wheel bolt pattern, 7/16" studs
- Optional upgrade available to Wilwood 10-3/4" rotors/hubs, 5 on 4-1/2" and 5 on 4-3/4" with 1/2" studs and 4 piston calipers
- Includes new 49-54 Chevy car forged spindles for strength
Key Specs
| MFG. Part # | Select Caliper Type and Brake Kit |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | Stock Height |
| Control Arm Style | Not Included |
| Shock Type | Not Included |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details

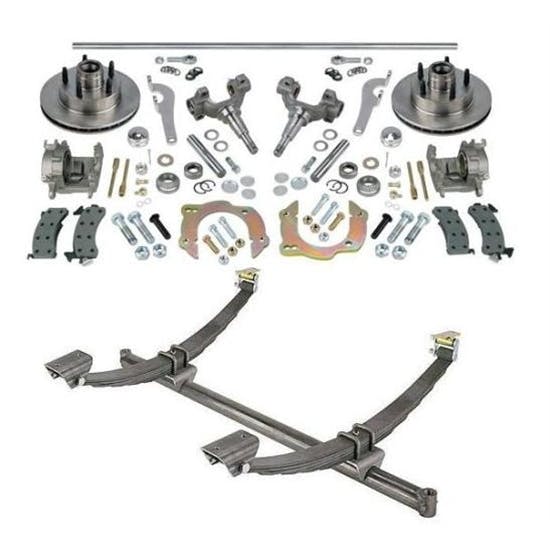

These kits include our gasser straight front axle, semi-elliptical springs, spindles, king pins, steering arms, tierod kit, brake kit, and hardware. Choose either 5 on 4-1/2" or 5 on 4-3/4" bolt pattern with standard brake kit or Wilwood brake kit. Standard brake kits use new rotors and GM metric style calipers. Wilwood brake kit includes dual-drilled hub. Brake lines not included. Shocks not included, but shock mounts are included. Assembly required.
Note: Wilwood brakes increase hub-to-hub width by 1/2".
Item Details
49-54 Chevy Spindles, Specify bolt pattern,
50" Wide axle - 58-1/2" hub to hub.
- Not For Off-Road Race Use
Charts
Specs
Gasser Kit w/ "Chevy" Spindles
- Leaf springs, 31-1/4" long x 1-3/4" wide
- 6 leaf, 1/4" thick
- 400 lbs/inch spring rate
- Chevy-style spindles (forged steel)
- Modeled after the 1949-54 Chevy passenger car spindle

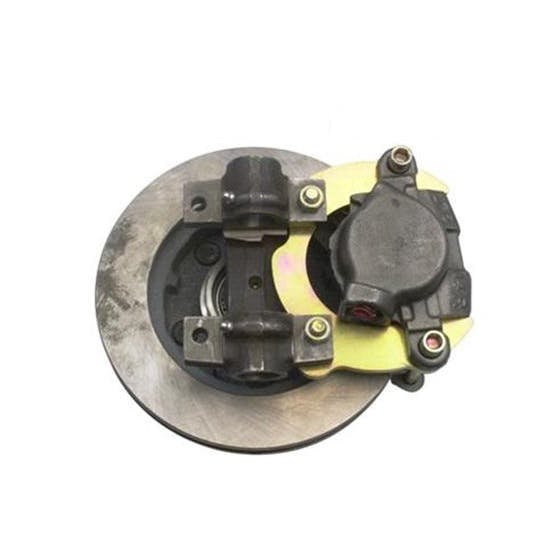

"Chevy" Spindle Standard Brake Kit
- 5 x 4-1/2" Ford/Mopar bolt pattern
- 9-1/4" vented iron rotor, .890" thick
- Hub flange (hat) diameter - 5.74"
- 1/2" Fine wheel studs
- GM Metric '78-'88 calipers, 2-1/2" piston
- 7/16"-20 banjo bolt to AN-3 line adapter kit
- 5 x 4-3/4" GM bolt pattern
- 9-1/4" vented iron rotor, .890" thick
- Hub flange (hat) diameter - 5.74"
- 7/16" Fine wheel studs
- GM Metric '78-'88 calipers, 2-1/2" piston
- 7/16"-20 banjo bolt to AN-3 line adapter kit
"Chevy" Spindle Wilwood Brake Kit (must use 15"+ wheels)
- Forged Dynalite 4-piston Calipers
- 10.75" x .810" Ultralite HP 30 Vane iron rotors
- Wilwood Polymatrix-D Pads - very high cold friction, high fade/glaze resistance to periodic heat
- Lightweight anodized aluminum Pro Street hubs
- 1/2"-20 wheel studs
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Caliper Type and Brake Kit to see |
| Brand | Speedway Motors |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | Stock Height |
| Control Arm Style | Not Included |
| Shock Type | Not Included |
| Spring Type | Leaf Spring |
| Finish | Natural |
| Bolt Pattern | Select Caliper Type and Brake Kit to see |
| Rotor Diameter | Select Caliper Type and Brake Kit to see |
| Spindle Style | Chevy/GM Custom |
| Dropped Spindles | No |
| Dropped Axle | No |
| Dropped Control Arms | No |
| Front Leaf Spring Style | Semi-Elliptical Gasser |
| Spindles Included | Yes |
| Brakes Included | Yes |
| Steering Included | Yes |
| Caliper Pistons | Select Caliper Type and Brake Kit to see |
| Caliper Finish | Select Caliper Type and Brake Kit to see |
| Welding Required | Yes |
| GENERAL | |
| Straight Axle Style | Tube |
