Gasser Straight Axle, Chevy Spindle and Brake Kits, 54-1/2 Hub-to-Hub

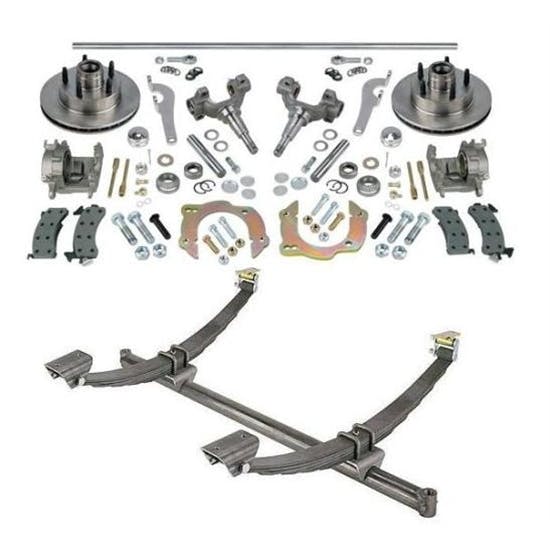

These kits include our gasser straight front axle, semi-elliptical springs, spindles, king pins, steering arms, tierod kit, brake kit, and hardware. Choose either 5 on 4-1/2" or 5 on 4-3/4" bolt pattern with standard brake kit or Wilwood brake kit. Standard brake kits use new rotors and GM metric style calipers. Wilwood brake kit includes dual-drilled hub. Brake lines not included. Shocks not included, but shock mounts are included. Assembly required.

• 46 Inch

Note: Wilwood brakes increase hub-to-hub width by 1/2".

Item Details

49-54 Chevy Spindles, Specify bolt pattern,
46" Wide axle - 54 1/2" hub to hub.

• Not For Off-Road Race Use

910-3946 Instructions (PDF)

5 x 4-1/2 & 4-3/4 Brake Kit Instructions (PDF)

Wilwood Brake Instructions (PDF)

Gasser Info (PDF)

Gasser Kit w/ "Chevy" Spindles

• Leaf springs, 31-1/4" long x 1-3/4" wide
  • 6 leaf, 1/4" thick
  • 400 lbs/inch spring rate
• Chevy-style spindles (forged steel)
  • Modeled after the 1949-54 Chevy passenger car spindle

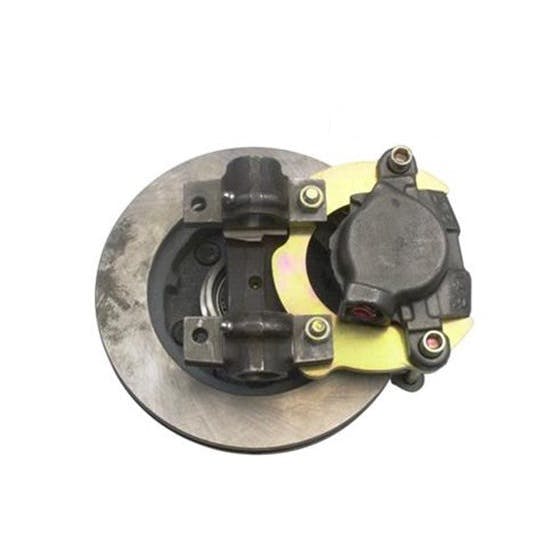

"Chevy" Spindle Standard Brake Kit

• 5 x 4-1/2" Ford/Mopar bolt pattern

  • 9-1/4" vented iron rotor, .890" thick
  • Hub flange (hat) diameter - 5.74"
  • 1/2" Fine wheel studs
  • GM Metric '78-'88 calipers, 2-1/2" piston
  • 7/16"-20 banjo bolt to AN-3 line adapter kit
• 5 x 4-3/4" GM bolt pattern
  • 9-1/4" vented iron rotor, .890" thick
  • Hub flange (hat) diameter - 5.74"
  • 7/16" Fine wheel studs
  • GM Metric '78-'88 calipers, 2-1/2" piston
  • 7/16"-20 banjo bolt to AN-3 line adapter kit

"Chevy" Spindle Wilwood Brake Kit (must use 15"+ wheels)

• Forged Dynalite 4-piston Calipers
• 10.75" x .810" Ultralite HP 30 Vane iron rotors
• Wilwood Polymatrix-D Pads - very high cold friction, high fade/glaze resistance to periodic heat
• Lightweight anodized aluminum Pro Street hubs
• 1/2"-20 wheel studs
