Garage Sale - KB Chevy 305 Hypereutectic Pistons, Flat Top, 6.0 Rod

$106 Off

Keith Black

#474153

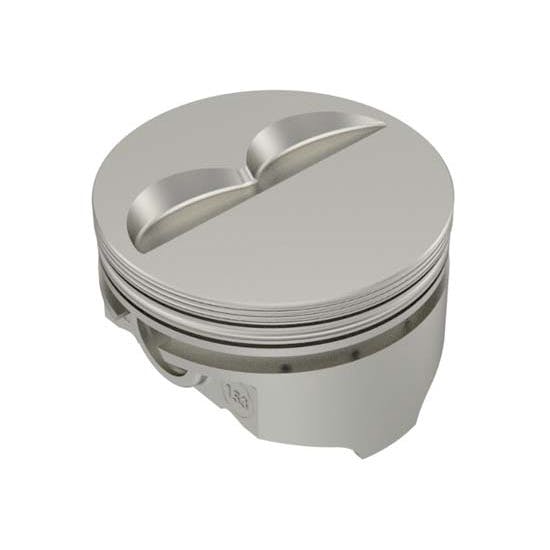

Garage Sale - KB Chevy 305 Hypereutectic Pistons, Flat Top, 6.0 Rod

Name: Garage Sale - KB Chevy 305 Hypereutectic Pistons, Flat Top, 6.0 Rod
Brand: Keith Black
SKU: 474153

Write a Review

1 Question

Size:

Select a size

$452.45

/each

In Stock

$558.58

Save $106.13

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Flat Top w/ 2 valve reliefs Piston Style, 3.48" Stroke

See more details

Key Specs

MFG. Part #	NULL
Piston Style	Flat Top w/ 2 valve reliefs
Piston Material	Hypereutectic Aluminum
Wrist Pin Included	Yes
Wrist Pin Style	Full Floating

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Ineligible for Return

Contains items that cannot be returned

Details

Keith Black Hypereutectic pistons are favored for their improved power and reduced scuffing. The unique design & manufacturing processes combine to produce a rigid piston, which will rock less in the bore improving ring seal. These T-5 heat treated pistons also offer reduced thermal expansion, which allows you to run tighter clearances and allows the piston rings to seal better and minimize blow-by.

390 Hypereutectic alloy
Fully machined crowns and valve reliefs
Drilled oil drain backs
Full floating wrist pins
Triple wound spiral locks
Reflective alloy allows 2% power increase
Quench dome technology minimizes deterioration
Zero deck quench designs
Lightweight wrist pins

For S/B Chevy 305 c.i. (3.736" bore x 3.48" stroke).

Clearance!!

NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS

Charts

Ring Style Chart (GIF)

474-153 Instructions (PDF)

Specs

Comp Height 5.7" Rod - 1.561
Comp Height 6.0" Rod - 1.261
Pin Diameter - 0.9272

Guides & Documents

Pistons Installation Instructions (474153)

Pistons Technical Information (474153)

Installation Instructions (Keith Black)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Specifications

KEY SPECS
MFG. Part #	NULL
Brand	Keith Black
Piston Style	Flat Top w/ 2 valve reliefs
Piston Material	Hypereutectic Aluminum
Wrist Pin Included	Yes
Wrist Pin Style	Full Floating

GENERAL
Piston Diameter	Select Size to see
Stroke	3.48"
Connecting Rod Length	6.000"
Piston Weight	411 grams
Piston Ring Style	C
Wrist Pin Diameter	.9272"
Wrist Pin Weight	145 grams
Top Ring Thickness	1/16"
Second Ring Thickness	1/16"
Oil Ring Thickness	3/16"
Compression 64cc =	9.3 : 1
GTIN Code	800745080295
Sold in Quantity	Set

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

what would the approximate compression ratio be with 56 CC Heads and 58 CC heads??

by Steve

• 3 years ago

1 answer

View Answer

1 of 1 questions shown
