GM Saginaw Power Steering Pump Kit with SBC Bracket/Pulley

Upgrade your small block chevy with our chrome power steering pump kit.  The kit includes new Tuff Stuff power steering pump, chrome pump brackets, billett aluminum pulley, and pulley nut.

The included chrome Saginaw power steering pumps from Tuff Stuff come with a new reservoir, billet cap, chrome hardware, and new dipstick. Desirable early style 1965-79 "Type 1" pump with threaded and keyed shaft for easy pulley installation. Pump has a 3/8" hose barb for return line and a female 5/8"-18 inverted flare fitting for the high pressure outlet.

Bracket mounts to the lower left front of the block using the two lower bolt holes located by the timing chain cover (the old front motor mount holes).  The adjusting arm mounts to the lower water pump hole. Bracket will fit a wide range of applications due to its two mounting positions: LOW and HIGH

Kit Includes

• (1) Power Steering Pump Bracket-Short Pump
• (1) Tuff Stuff Chrome Saginaw Power Steering Pump
• (1) Single Groove Power Steering Pump Pulley, Billet Aluminum
• (1) GM Power Steering Pump Pulley Nut

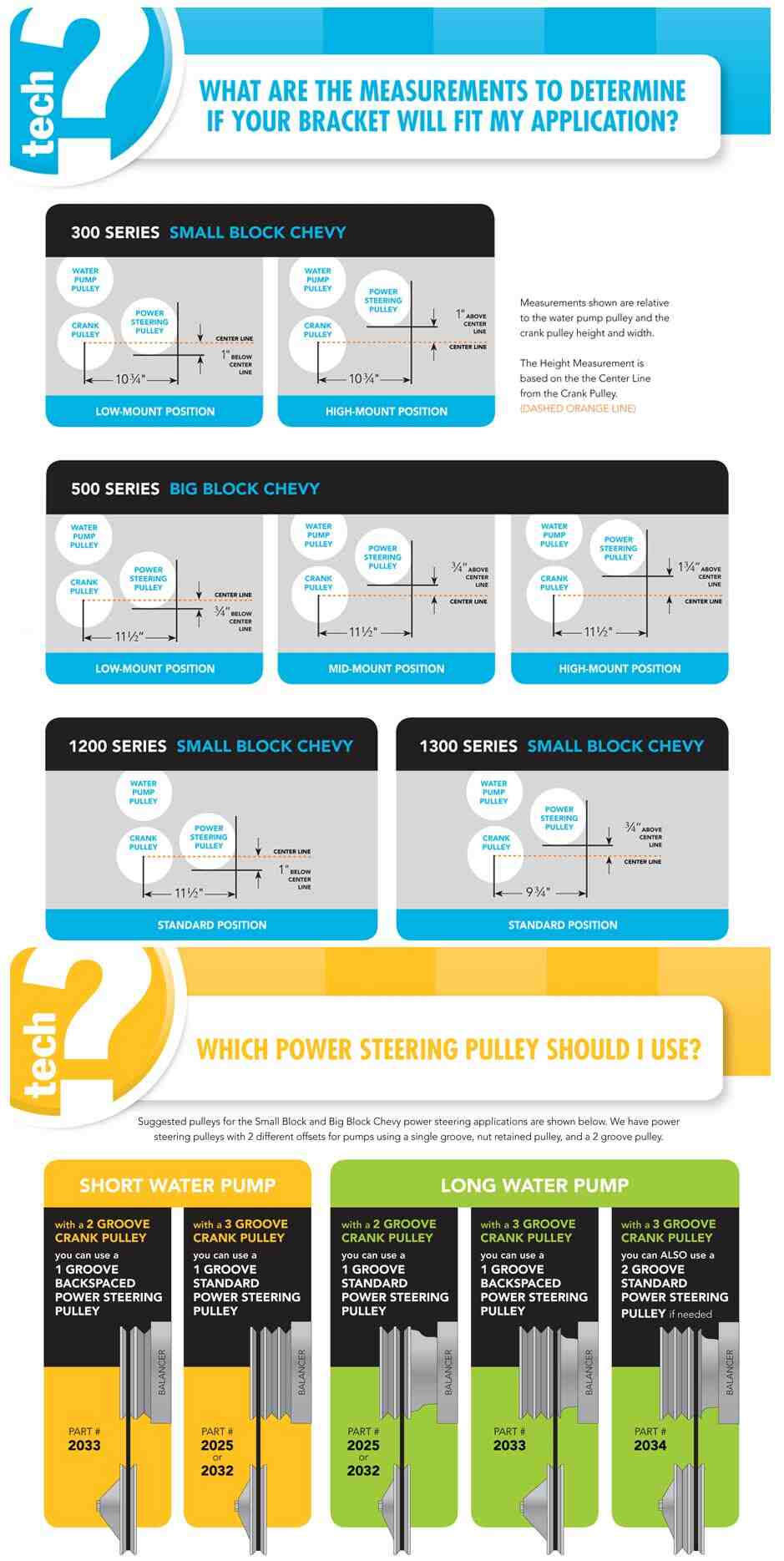

Power Steering Tech Questions/Tips (JPG)

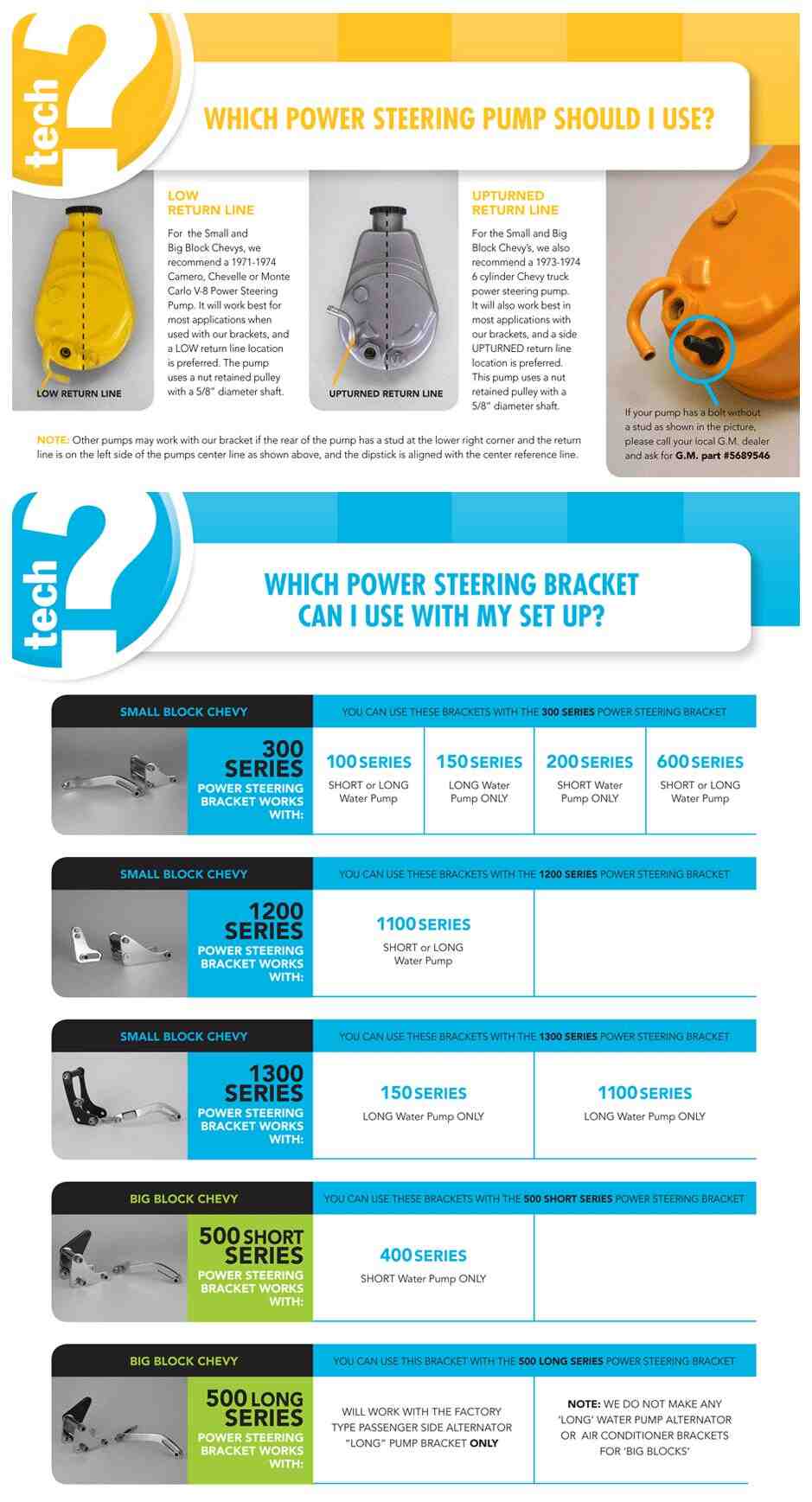

Power Steering Application Tech Questions/Tips (JPG)

Installation Instructions (PDF)
