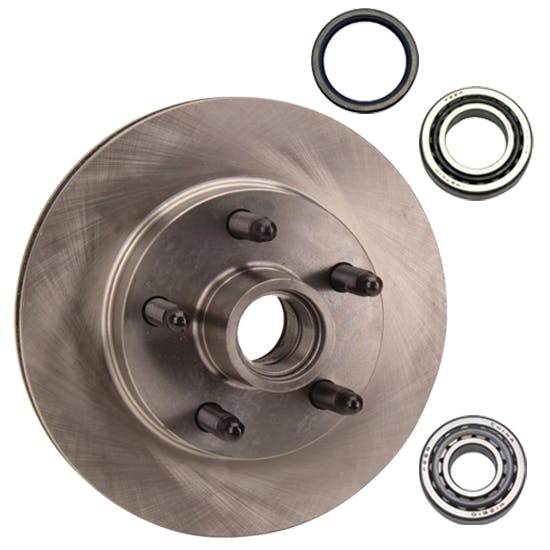

GM Metric Disc Brake Rotor & Bearing Kit, 5 on 4-3/4

 Kit Includes:

• (1) GM Metric Car Disc Brake Rotor
• (1) Metric Spindle Replacement Inner Seal
• (1) Metric Spindle Chassis Outer Wheel Bearing
• (1) Metric Spindle Tapered Inner Wheel Bearing

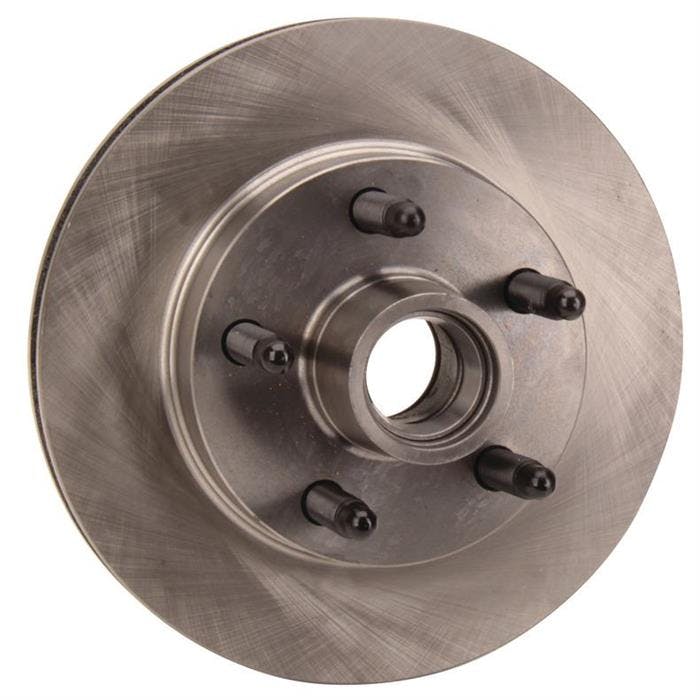

GM Metric Disc Brake Rotor

This 1979-up GM Metric front disc brake rotor will work with a Set # 6 inner bearing/race which fits most spindles. 5 on 4-3/4" with 5/8"-11 studs installed. 10.5" diameter x 1".  Must be used with 912-TS3 outer bearings for 1982-1987 spindle applications.  IMCA Approved.

This is a 1979-1981 Metric GM rotor with the bolt pattern changed to 5 on 4-3/4". It can be used on 1982-1987 GM metric spindles if you use our bearing/seal kit 91031048, or use at least the 1979-1981 style outer bearing 912TS3.

This rotor is designed for dirt track applications and should NOT be used for asphalt racing.

• Position: Front
• Rotor Shape: Round
• Rotor Diameter: 10.50 Inch
• Rotor Type: Vented
• Rotor Style: Plain Face
• Rotor Material Type: Steel
• Rotor Finish: Natural
• Bolt Pattern: 5 on 4.75"
• Thread Pitch: 5/8"-11
• Notes: Designed for dirt track applications.

Metric Chassis Replacement Inner Seal

• Overall Thickness: .23"
• Inside Diameter: 2.00"
• Outside Diameter: 2.56"

Metric Spindle Chassis Outer Wheel Bearing

Replacement outer wheel bearing for 1975-1981 Ford Granada style rotors. Includes M12649 outer bearing cone, M12610 outer bearing cup.

• Overall Diameter: 1.969"
• Diameter Big End: 1.681"
• Diameter Small End: 1.494"
• Overall Width: .720"
• Race Included: Yes

Metric Spindle Chassis Outer Wheel Bearing

Includes 912TLM67048 outer bearing cone, 912TLM67010 outer bearing cup.

• Cone ID: 1.245"
• Cup OD: 2.33"
• Race Included: Yes
• Material Type: Steel
• Inside Diameter: 1.25"
• Outside Diameter: 2.33"
