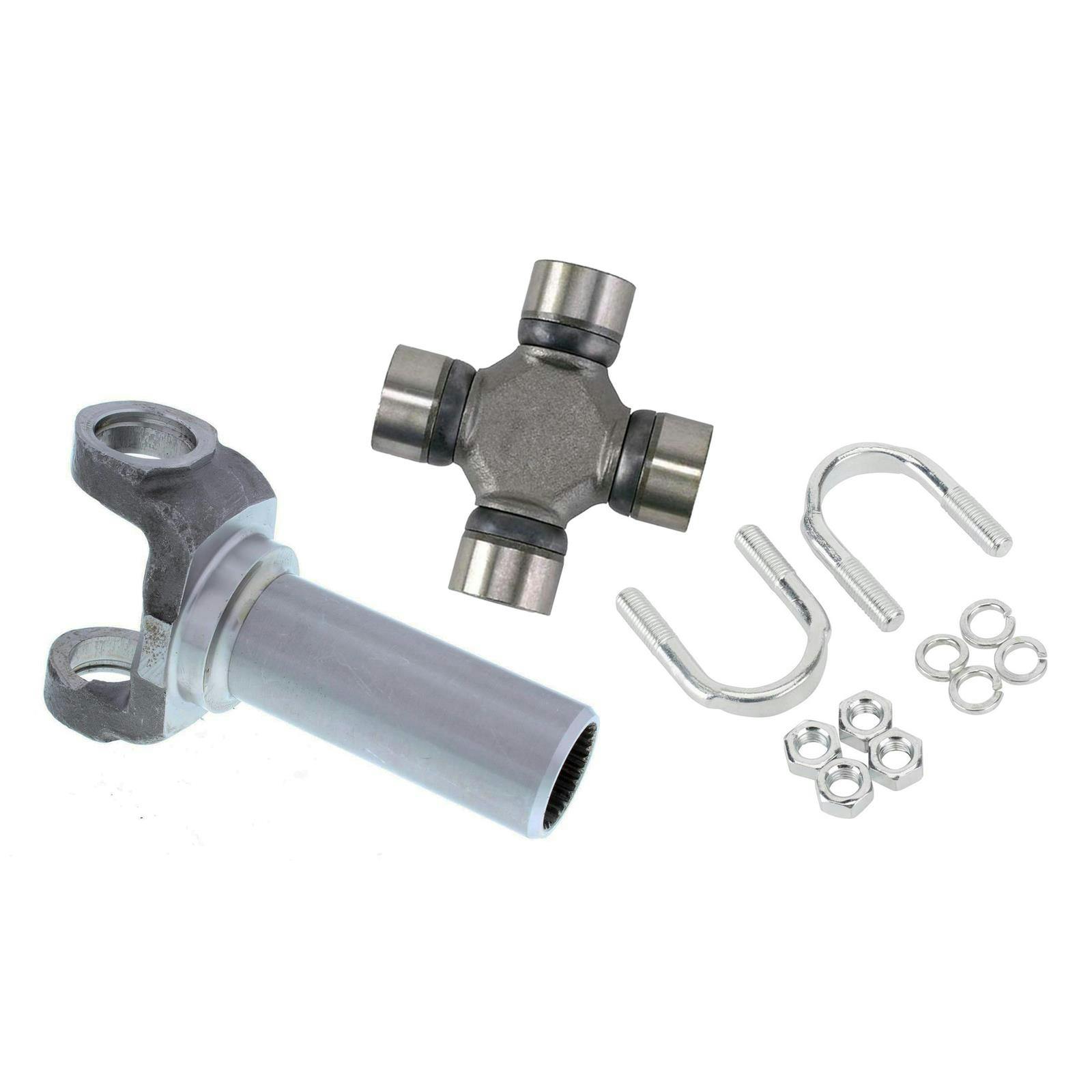

GM Front Slip Yoke, 27 Spline, 5-1/2 Inch w/1310 U-Joint & Bolts

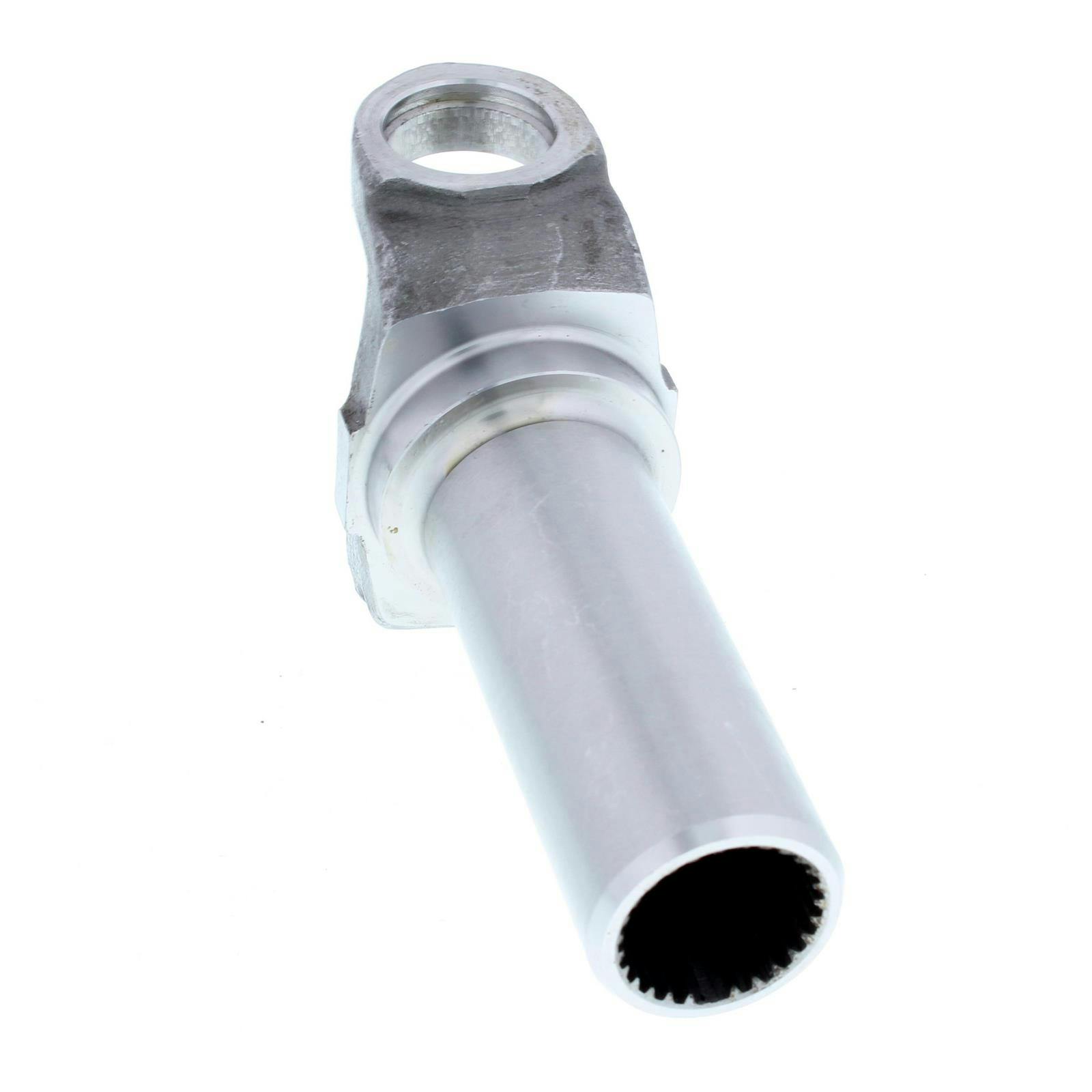

Drive Shaft Slip Yoke

Stock length (5-1/2") slip yoke for GM applications with 1-3/16" x 27-spline output shaft. Works with 1310 series U-joints.

• This yoke measures 5-1/2" from tip to centerline of u-joint
• This yoke is grooved for an "external" u-joint cap retaining clip
• The machined length on the yoke is 3-3/4"

The expressed measurement or length of the slip yoke is taken from the center of the u-joint to tip, not overall.

Fits over the output shaft of the following transmissions:

• Common GM/Saginaw 3 & 4 speed transmissions with a 1-3/16" x 27 spline output shaft
• Powerglide, T-350, 700R-4, 200R-4, and 4L60 automatic transmissions
• Muncie M20/M21 and Borg Warner T-5, T-10 & T-56 27-spline manual transmissions

U-Joint & U-Bolts

High quality, heat treated forged steel replacement U-joints. Comes with outside retaining clips and can be greased.

• 1-1/16" x 3-7/32" x 1-1/16" x 3-7/32"
• U-bolts are forged steel for 50% more strength than standard units
• Bolts fit U-joints with 1-1/16" diameter caps

( T350 ) - GM 27-spline, 1.5" OD Seal Dia., Fits Late Power Glide, Turbo 200, Turbo 350, 700R4, 4L60, 4L65, 4L70, Muncie, Saginaw, Borg Warner Trans
