GM '36-62 L6 2-Bolt Small Pattern, 2 Stromberg 3-Bolt Adapter Kit

Ask a Question

Made from cast aluminum and are precision machined
The 1 barrel bore measures 1.556" with the 'small pattern' 2.675" (2-9/16") center to center bolt spacing
Kit includes six studs, six stainless steel washers, and six stainless steel fiber lock nuts which is enough for two carbs

$102.99

In Stock

$107.92

Save $4.93

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 2" Overall Height, 2" Overall Thickness

Made from cast aluminum and are precision machined
The 1 barrel bore measures 1.556" with the 'small pattern' 2.675" (2-9/16") center to center bolt spacing
Kit includes six studs, six stainless steel washers, and six stainless steel fiber lock nuts which is enough for two carbs
This 1936-1962 GM L6 carb flange will bolt to 3-bolt, 2-barrel carburetor setups

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	9108053
Brand	Speedway Motors

See more specs

Need To Know

Free Shipping on Orders Over $149

Need help?

Quick and Easy Returns

Speedway Motors 9108053 Details

You've asked for it and here it is. No more scouring the junkyards to round out the new 2 or 3 carb setup on your Chevy 6. This kit comes complete with mounting hardware and gaskets.

(2) 1936-1962 GM L6 carb flange to 3-bolt, 2-barrel carburetor
Cast aluminum
Precision Machined
1 barrel bore measures 1.556" with the 'small pattern' 2.675" (2-9/16") center to center bolt spacing

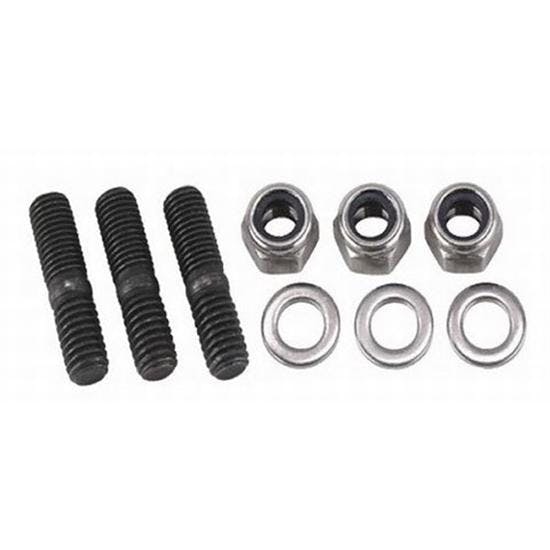

Includes six studs, six stainless steel washers, and six stainless steel fiber lock nuts - enough for two carbs

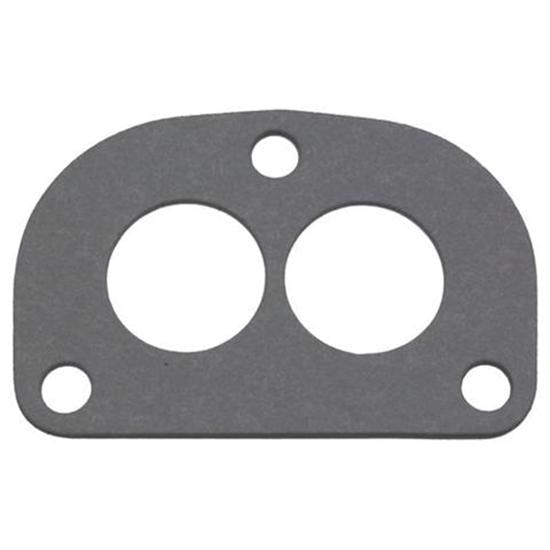

(2) Three bolt carburetor base gasket fits Stromberg 97, Speedway 9 Super 7®, and Holley 94 carbs

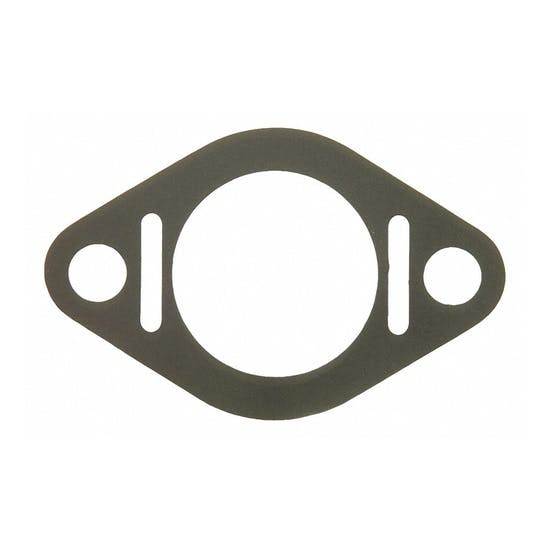

(2) Fel-Pro 2-Bolt Carburetor base gasket for 216/235 CI Engines

Speedway Motors 9108053 Specifications

KEY SPECS
MFG. Part #	9108053
Brand	Speedway Motors

GENERAL
Speedway Motors Catalog Part #	910-8053
Overall Height	2"
Overall Thickness	2"
Bore Size	1.556"
Center to Center	2.675"
Gasket(s) Included	Yes
Hardware Included	Yes
Material Type	Aluminum
Finish	Raw
Sold in Quantity	Kit
Carburetor Quantity	Two
Carburetor Flange Type	2-Barrel 3-Bolt
